8
Installation
You can install this system in various ways to fit neatly into your listening room (Except for the NX-TS20 speakers).
GETTING STARTED

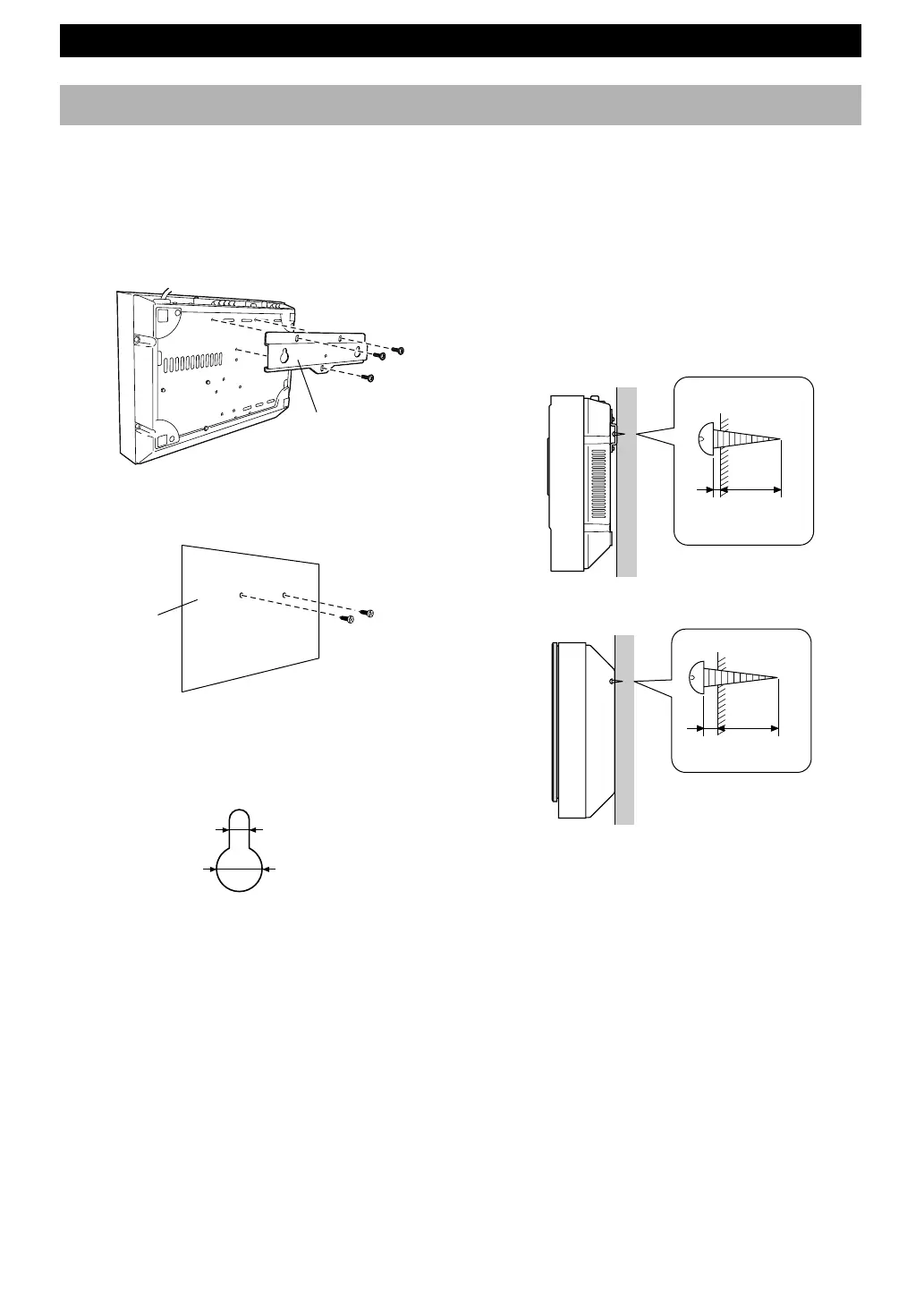

■ Mounting the system on the wall
* The supplied paper pattern helps you to align the main unit with the speakers properly.
4 Hang the main unit and/or the speakers using the
holes on the back on the protruding screws.
*Make sure that the screws securely connect with the
narrow parts of the holes.
Important
● To avoid dropping and possible injury, be extremely
careful when mounting the system on the wall.
● Check if the wall is strong enough to carry the
weight of the unit (refer to the “Specifications” page).
When in doubt, consult qualified service personnel.
● Confirm that all screws are fastened tightly and the
wall mounting screws are properly fitted into the
holes of the bracket and the speakers.
● To avoid accidents resulting from tripping over loose
speaker cables, fix them to the wall.
● YAMAHA shall not be liable for any accident caused
by improper installation.
1 Attach the bracket on the main unit with the screws.
2 Mark where to fasten the screws on the wall using the
paper pattern.
● Wall mounting screws are not supplied with this
system. Use screws suitable for the wall material.
Also, select the screws of appropriate size for the
holes’ size as illustrated below.
3 Drive the screws into the wall.
Paper pattern
Bracket
Main unit
Speaker
2 mm
Min.
20 mm
4 mm
Min.
20 mm
5 mm
10 mm
04/TSX-10E(6.12)e 01.6.12, 4:17 PM8
To Next Page
