Yamaha TSX-20 User Manual

4

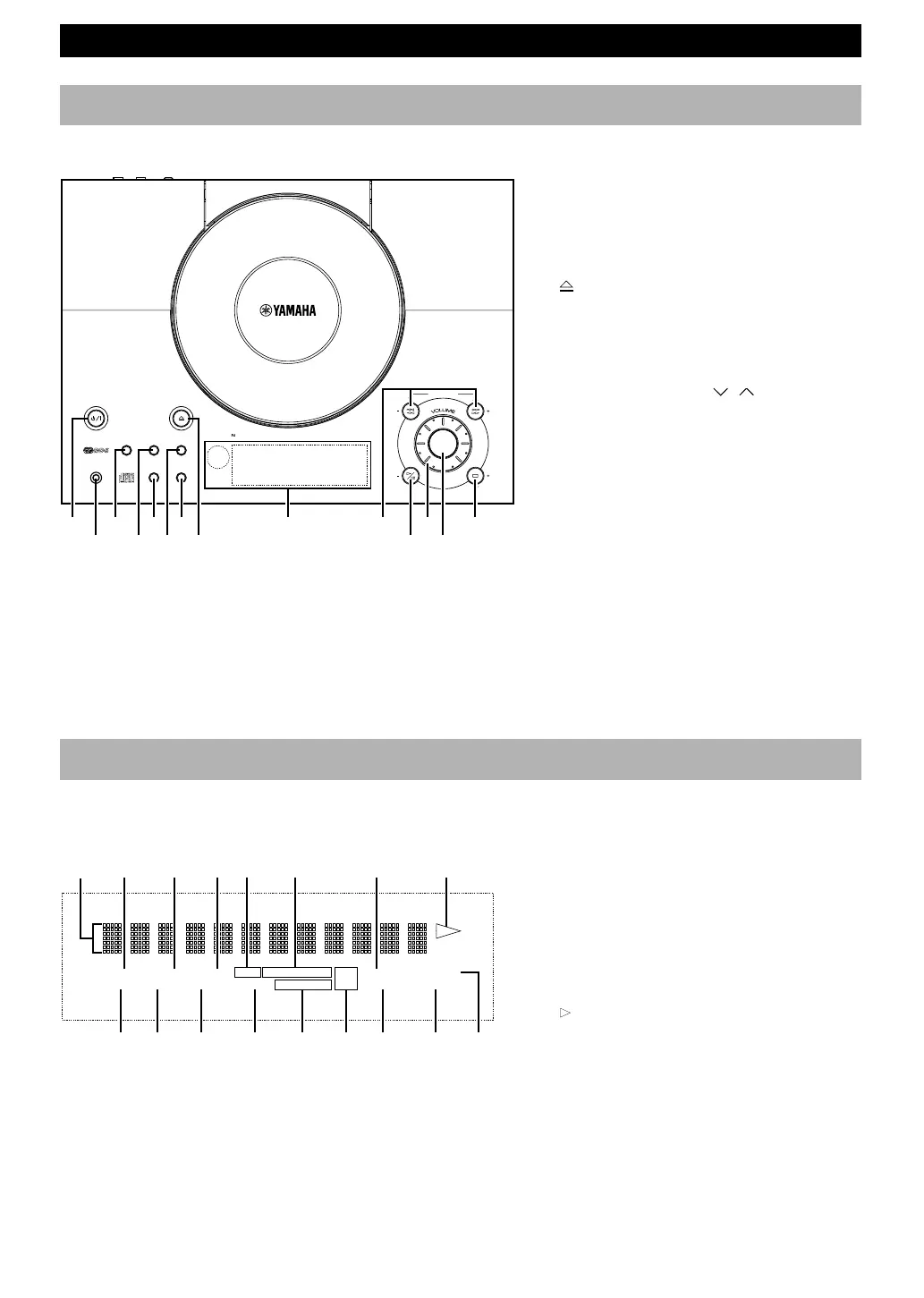

NAMES OF BUTTONS AND CONTROLS
Front panel
1 STANDBY/ON (P.13)
2 PHONES (P.13)
3 MEMORY/TIME ADJ (P.12, 18)
4 AUTO/MAN’L/TIMER (P.17, 22)
5 SLEEP (P.23)
6 OPEN/CLOSE (P.14)
7 DISPLAY (P.12, 22)
8 PRESET/BAND (P.17)
9 Display (P.4)
0 PRESET/TUNING / (P.17)
When TUNER is selected as an input
source
$/!/⁄/› (P.14)
When CD is selected as an input source
A ^ (Play/Pause) (P.14)
B VOLUME (P.13)
C INPUT/SNOOZE (P.8, 23)
D A/B/C/D/E (P.18)
When TUNER is selected as an input
source
& (Stop) (P.14)
When CD is selected as an input source
Display
1 Multi information display
2 PRESET indicator (P.18)
3 STEREO indicator (P.17)
4 AUTO indicator (P.17)
5 RDS indicator (P.19)
6 RDS mode indicators (P.19)
7 PTY HOLD indicator (P.20)
8 TOTAL indicator (P.15)
9 B (Play) indicator (P.14)
0 TIMER indicator (P.22)
A SLEEP indicator (P.23)
B MEMORY indicator (P.18)
C TUNED indicator (P.17)
D REP S/F (repeat single/full) indicator
(P.16)
E RANDOM indicator (P.15)
F B. BOOST (Bass boost) indicator (P.13)
G TONE indicator (P.13)
TONEPROG TOTAL REPRDS AUTO STEREO PRESET PSPTYRTCT
B. BOOST RANDOMS F PTY HOLD TUNED MEMORYSLEEPTIMER
NATURAL SOUND CD RECEIVER
STANDBY/ON OPEN/CLOSE
MEMORY
AUTO/MAN´L
TIMER
SLEEP
PRESET/TUNING
INPUT
SNOOZE
A/B/C/D/E
HOUR
MIN MIN
HOUR
PHONES
DISPLAY
TIME ADJ
PRESET/BAMD
1 3
4 8 62
5 7 9
A
B
C
D0
TONE TOTAL REPRDS AUTO STEREO PRESET PSPTYRTCT
B. BOOST RANDOMS F PTY HOLD TUNED MEMORYSLEEPTIMER
0 A
2
1
3 8 94 5 6
B C D E F G7
04/TSX-10E(6.12)e 01.6.12, 4:17 PM4

Yamaha TSX-20 Specifications

Amplifier Section

minimum RMS output power per channel	18 W +18 W (4Ω 1kHz 10% THD)
input sensitivity/impedance AUX	250 mV/47 kΩ
total harmonic distortion (20 Hz to 20 kHz)	12.5 W, 6 Ω

Tuner Section

tuning range FM (U.S.A. and Canada models)	87.5 – 107.9 MHz
tuning range FM (U.K., Europe, Australia and China models)	87.50 – 108.00 MHz
tuning range AM (U.S.A., Canada and China models)	530 – 1710 kHz

CD Player Section

D/A converter	S-bit DAC
laser diode material	GaAIAs
laser diode wavelength	780 nm

Speaker Section

type	2-way bass-reflex speaker system
driver	10 cm cone woofer, 2 cm dome tweeter
maximum input power	20 Ω

General

power supply (U.S.A. and Canada models)	AC 120 V, 60 Hz
power consumption	35 W
dimensions (W x H x D) CRX-TS10/20	297 x 80 x 214 mm
