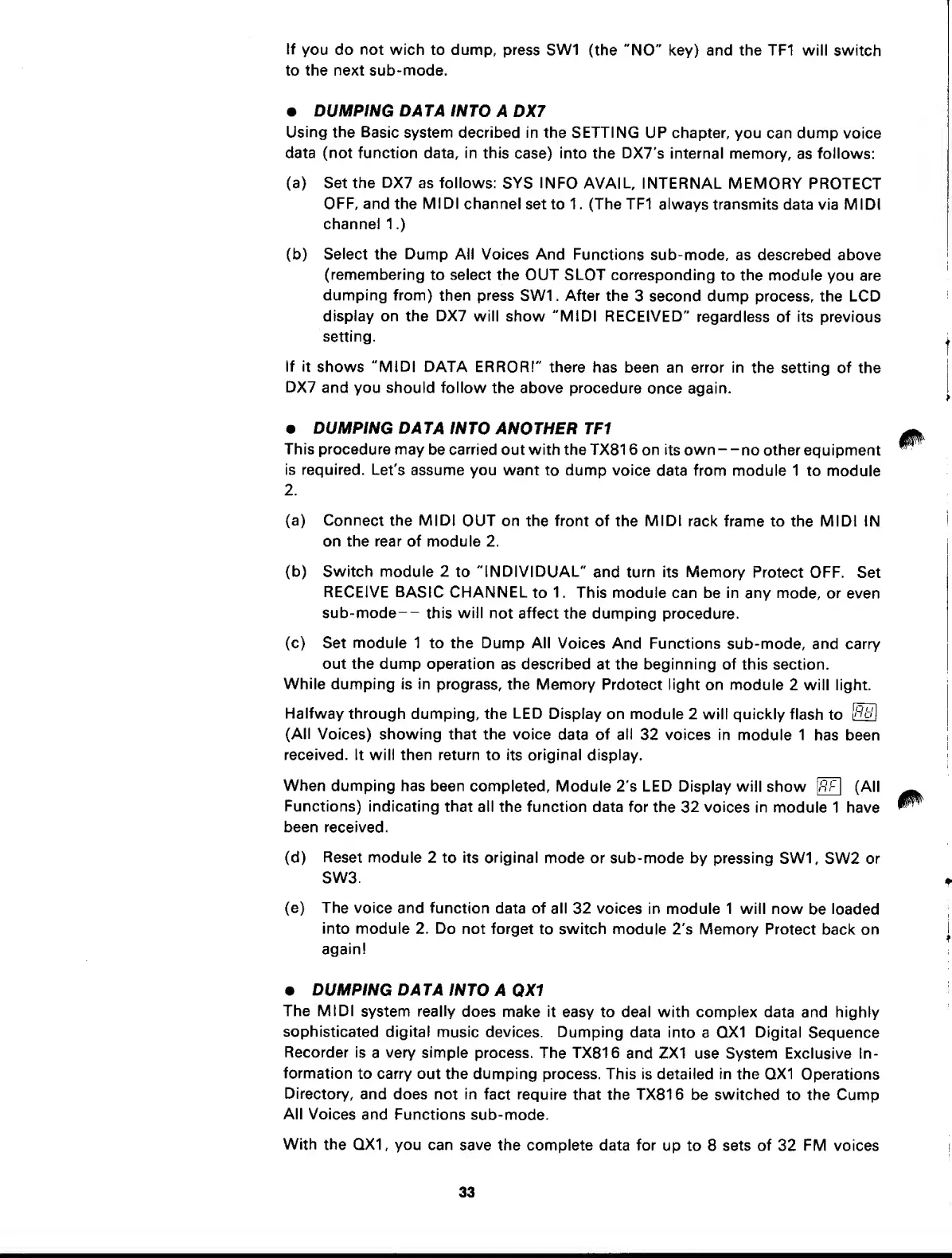

If
you do not wich to dump,
press SW1
(the "NO" key) and the TF1 will
switch
to the next sub-mode.
•
DUMPING DATA
INTO
A DX7
Using the Basic
system decribed in the SETTING
UP chapter,
you
can
dump
voice
data (not function data, in
this
case)
into
the
DX7's
internal memory,
as
follows:
(a) Set the DX7 as follows:
SYS INFO
AVAIL, INTERNAL MEMORY
PROTECT
OFF, and
the
MIDI
channel
set to 1
.
(The TF1
always transmits
data via MIDI
channel 1
.)
(b)
Select
the
Dump
All Voices And
Functions
sub-mode, as descrebed
above
(remembering
to
select the
OUT SLOT corresponding
to
the
module you are
dumping from)
then
press
SW1 .
After
the
3 second dump process, the LCD
display on the DX7 will
show "MIDI
RECEIVED"
regardless
of
its
previous
setting.
If
it
shows
"MIDI
DATA ERROR!"
there
has been an error in
the setting of
the
DX7 and
you should follow
the above
procedure
once again.
•
DUMPING DATA
INTO ANOTHER TF1
This
procedure may
be
carried
out with the TX81
6 on its
own
-
-no other equipment
is
required. Let's
assume you want
to
dump
voice
data from module 1
to module
2.
(a)
Connect the MIDI
OUT on
the
front
of
the
MIDI
rack frame to the MID! IN
on the rear of module 2.
(b)
Switch module 2
to
"INDIVIDUAL"
and turn its Memory
Protect OFF.
Set
RECEIVE BASIC CHANNEL
to
1
. This module can
be
in
any mode,
or even
sub-mode--
this
will
not affect
the dumping
procedure.
(c) Set
module
1
to the Dump All
Voices
And Functions
sub-mode,
and carry
out the dump
operation
as described at the beginning of
this section.
While
dumping is in
prograss, the
Memory Prdotect light
on module
2 will light.
Halfway
through
dumping, the
LED
Display on module
2 will quickly
flash
to
(All
Voices) showing that the voice
data
of all
32 voices in
module
1 has been
received. It will then return
to its
original
display.
When dumping has
been completed.
Module 2's LED Display will
show (All
Functions) indicating
that
all the function data for
the 32 voices
in module 1
have
been
received.
(d)
Reset
module
2 to its
original
mode or sub-mode by
pressing SW1,
SW2
or
SW3.
(e) The
voice
and
function
data of all
32
voices
in module 1 will now
be
loaded
into module
2.
Do
not forget
to
switch module
2's Memory
Protect
back
on
again!
•
DUMPING DATA
INTO A QX1
The MIDI
system
really
does
make it
easy to deal with complex
data and highly
sophisticated
digital
music devices. Dumping
data into
a
QX1
Digital
Sequence
Recorder
is
a
very
simple
process. The TX816
and ZX1 use System Exclusive In-
formation
to carry out the
dumping process. This
is detailed
in the 0X1
Operations
Directory,
and does
not
in
fact require
that the TX816
be
switched
to the Cump
All
Voices
and Functions
sub-mode.
With
the
QX1, you
can save
the complete data for
up to 8 sets
of
32 FM voices
33
