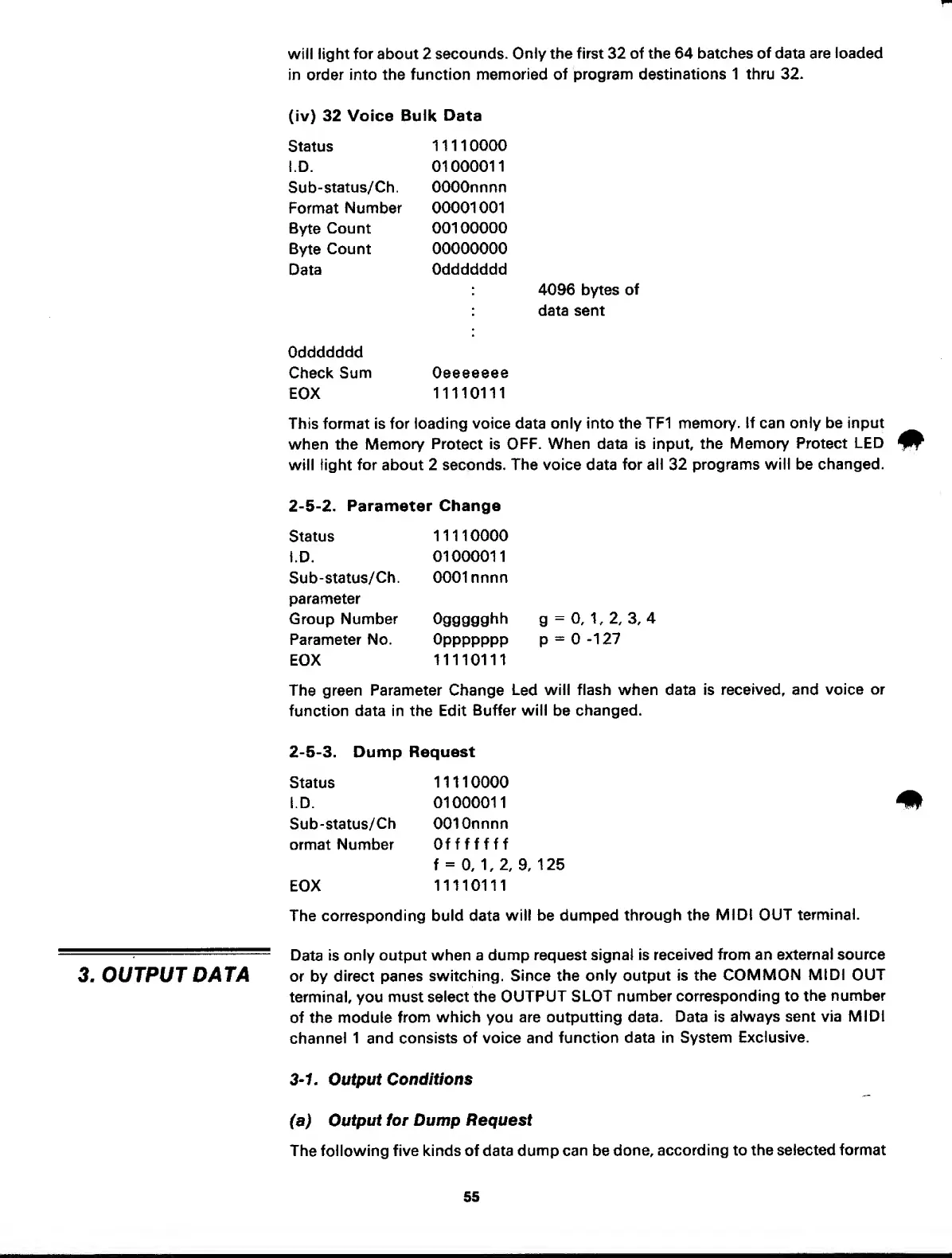

will light for about 2
secounds.
Only
the
first
32
of the 64 batches
of
data
are loaded
in
order
into the function
memoried of
program destinations 1 thru
32.
(iv) 32 Voice Bulk
Data
Status
I.D.
Sub-status/Ch.
Format
Number
Byte
Count
Byte
Count
Data
Oddddddd
Check
Sum
EOX
11110000
01000011
OOOOnnnn
00001001
00100000
00000000
Oddddddd
Oeeeeeee
11110111
4096 bytes
of
data sent
This format is for loading
voice
data
only into the TF1
memory. If can
only be input
when the
Memory Protect is
OFF. When data is input, the
Memory Protect
LED
will light for about 2 seconds. The voice data
for all
32
programs will be
changed.
2-5-2.
Parameter
Change
Status
I.D.
Sub-status/Ch.
parameter
Group Number
Parameter No.
EOX
11110000
01000011
0001 nnnn
Oggggghh
Oppppppp
11110111
g
=0,1.2,
3.4
p
=
-127
The green Parameter Change
Led
will flash when data is
received, and
voice or
function data in the Edit
Buffer
will
be
changed.
2-5-3.
Dump Request
Status
11110000
I.D.
01000011
Sub-status/Ch 001
Onnnn
ormat Number
Offfffff
f
=
0,
1,
2,
9,
125
EOX
11110111
The
corresponding
buld data
will
be
dumped
through the
MIDI OUT
terminal.
Data is
only output when a
dump request signal is
received
from an external source
or by
direct panes
switching.
Since the
only
output
is the
COMMON
MIDI OUT
terminal, you
must select the
OUTPUT
SLOT
number corresponding to
the number
of
the module
from
which
you
are outputting data.
Data is
always sent via
MIDI
channel
1
and
consists of voice and
function
data in System
Exclusive.
3-1,
Output
Conditions
(a)
Output for Dump Request
The following five kinds of data
dump can
be
done,
according to
the selected format
55
