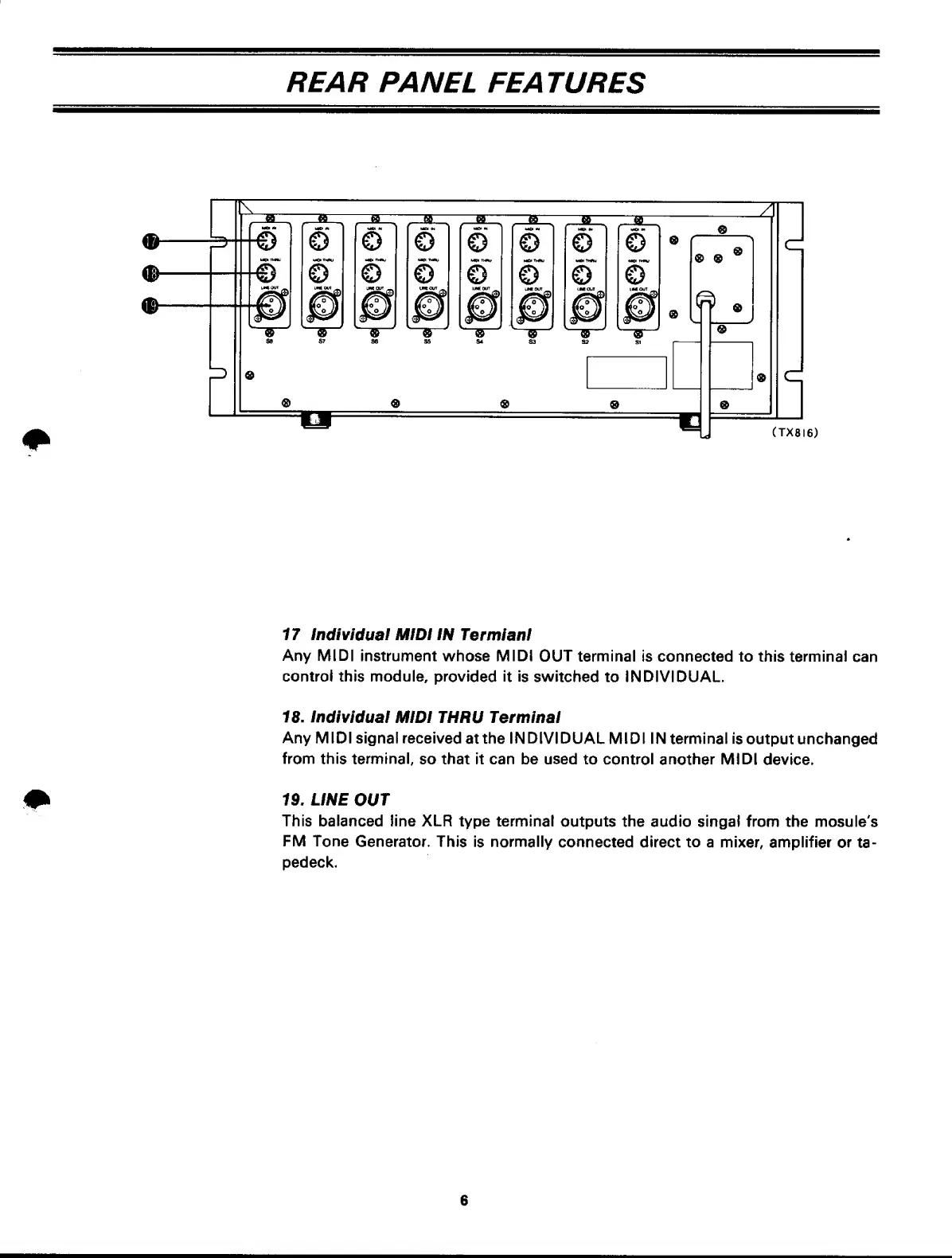

Yamaha TX 816 - Rear Panel Features

REAR
PANEL
FEATURES
Midi H
©
Mri> m
© ©
©
©
©
©
1^
9
(TX8I6)
17 individual MiDi
iN
TermianI
Any
MIDI
instrument whose MIDI
OUT
terminal is connected to this terminal
can
control this module,
provided it is
switched to INDIVIDUAL.
18. individuai
MiDi THRU Terminal
Any MIDI signal
received
at the
INDIVIDUAL
MIDI IN terminal
is
output unchanged
from
this
terminal,
so that it can be used
to control another MIDI
device.
19. LINE
OUT
This balanced line XLR
type terminal
outputs
the
audio singal from the mosule's
FM
Tone
Generator. This
is
normally
connected direct to a mixer, amplifier
or
ta-
pedeck.
