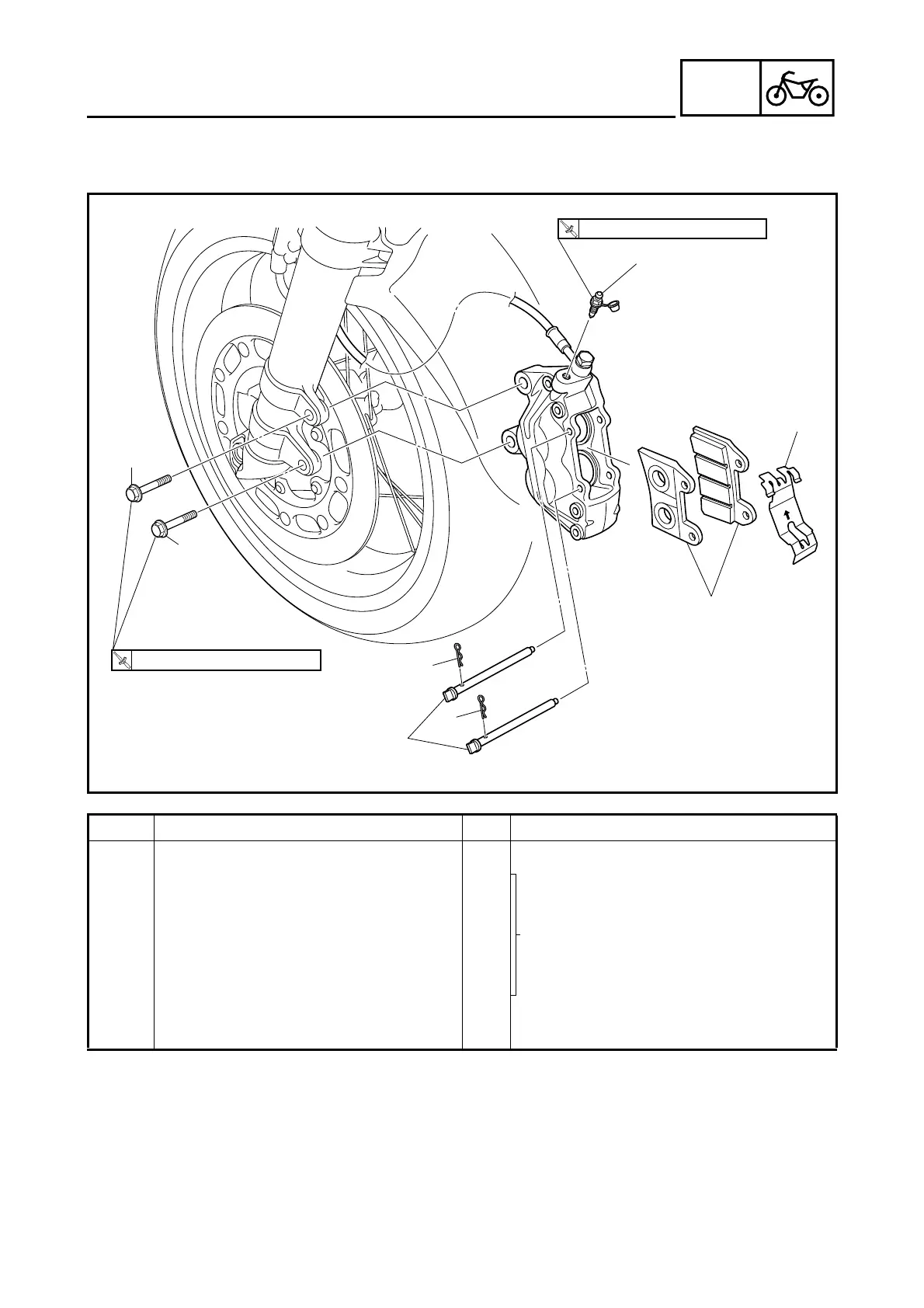

FRONT BRAKE PADS (XT660X)
T
R
.
.
40 Nm (4.0 m
•
kg, 29 ft
•
Ib)
T
R
.
.
14 Nm (1.4 m
•
kg, 10 ft
•
Ib)
3
4
5
6
2
1
1
2
Order Job/Part Q’ty Remarks
Removing the front brake pads
Remove the parts in the order listed.
1 Brake caliper bolt 2
Refer to “REPLACING THE FRONT
BRAKE PADS”.
2 Brake pad clip 2
3 Brake pad pin 2
4 Brake pad spring 1
5 Brake pad 2
6Bleed screw 1
For installation, reverse the removal pro-
cedure.
