Yamaha XT660X 2004 User Manual

6 - 8
COOL
WATER PUMP
EAS00468
WATER PUMP
New
New
LS
New
New
New
LS
New
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
2
5
2
1
4
3
6
8
7
(3)
1
Order Job/Part Q’ty Remarks

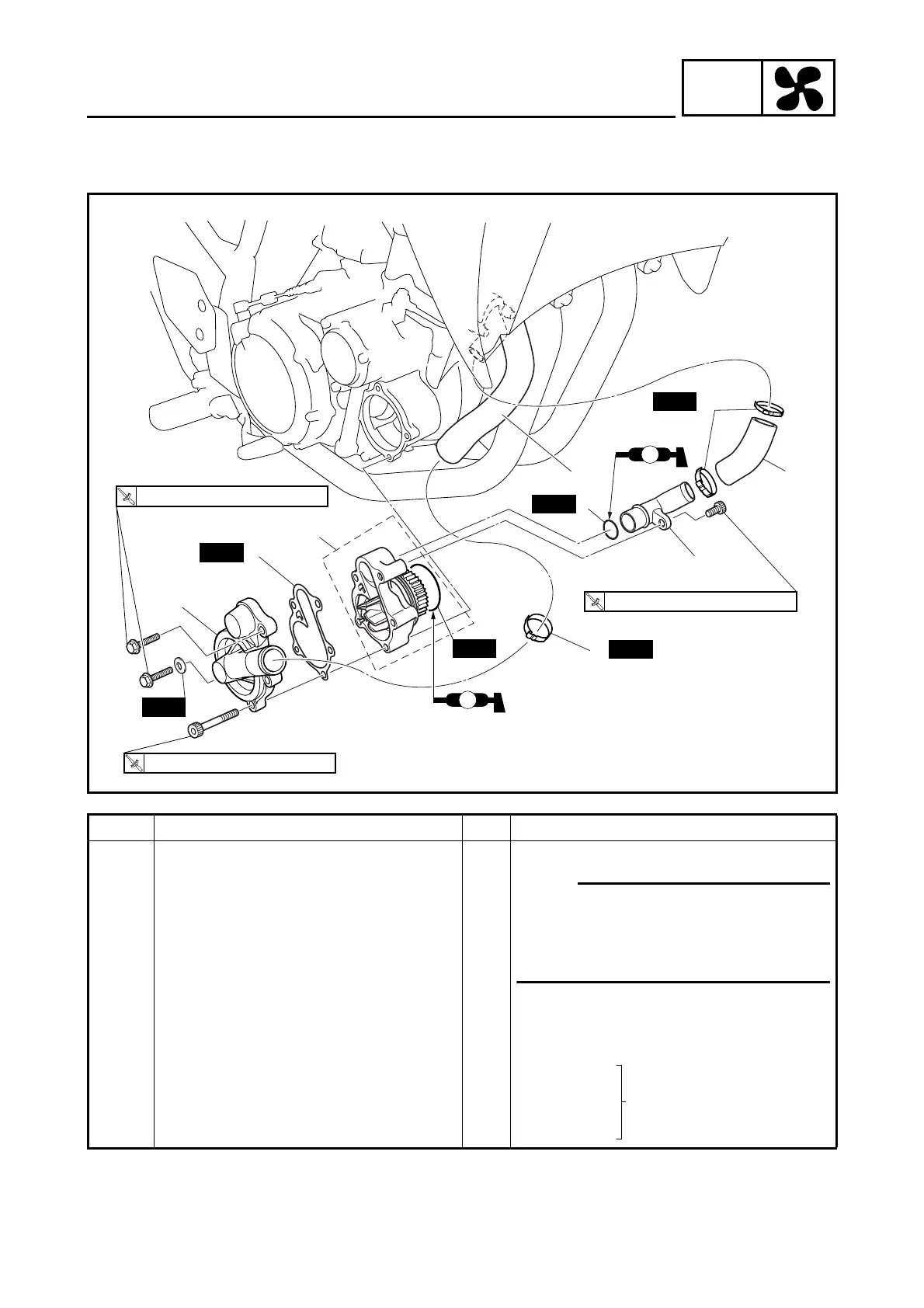

Removing the water pump
Remove the parts in the order listed.
NOTE:
It is not necessary to remove the water
pump unless the coolant level is
extremely low or the coolant contains
engine oil.
Coolant Drain.
Refer to “CHANGING THE COOLANT” in
chapter 3.
1 Hose clamp 3
Refer to “INSTALLING
THE WATER PUMP”.
2 Radiator outlet hose 1 Disconnect.
3 Water pump cover 1
4Gasket 1

Yamaha XT660X 2004 Specifications

General

Displacement	660 cc
Compression Ratio	10.0:1
Fuel System	Electronic Fuel Injection
Ignition	TCI
Starting System	Electric
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, 245 mm
Overall Width	865 mm
Wet Weight	186 kg
Fuel Capacity	15 liters
Engine Type	4-stroke, single cylinder, 4 valves
Bore x Stroke	100 mm x 84 mm
Max Power	35.3 kW (48 PS) @ 6, 000 rpm
Max Torque	58 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brake	Single disc
Front Tire	120/70-17
Rear Tire	160/60-17
