3 - 5
CHK
ADJ
EAS00040
FUEL TANK
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
1
7
6
8
10
5
4
9
3
2
Order Job/Part
Q’ty Remarks

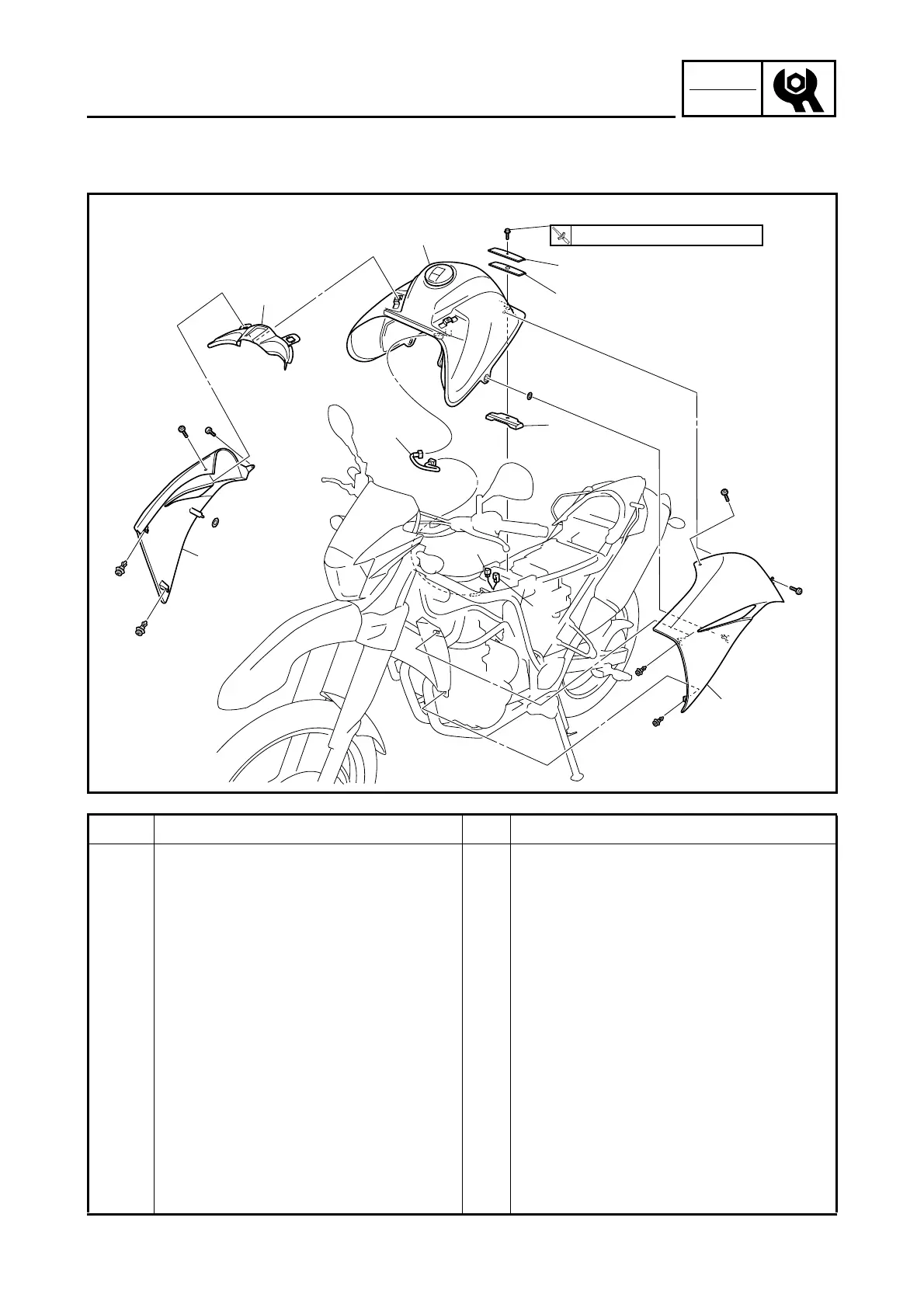

Removing the fuel tank
Remove the parts in the order listed.
Seat/side panels (left and right) Refer to “COWLING AND COVER”.
Fuel Drain.
1 Fuel tank left side cover 1
2 Fuel tank right side cover 1
3 Intake air guide 1
4 Fuel tank plate 1
5Damper 1 1
6 Fuel pump coupler 1 Disconnect.
7 Fuel sender coupler 1 Disconnect.
8 Fuel hose 1 Refer to “REMOVING THE FUEL TANK”
and “INSTALLING THE FUEL HOSE”.
9 Fuel tank 1
10 Damper 2 1
For installation, reverse the removal pro-
cedure.
FUEL TANK
To Next Page
