Yamaha XT660X 2004 User Manual

8 - 7
– +
ELEC
CHECKING THE BULBS AND BULB SOCKETS
EAS00732
CHECKING THE BULBS AND
BULB SOCKETS
Check each bulb and bulb socket for damage
or wear, proper connections, and also for con-
tinuity between the terminals.
Damage/wear
→
Repair or replace the
bulb, bulb socket or both.
Improperly connected
→
Properly connect.
No continuity
→
Repair or replace the bulb,
bulb socket or both.

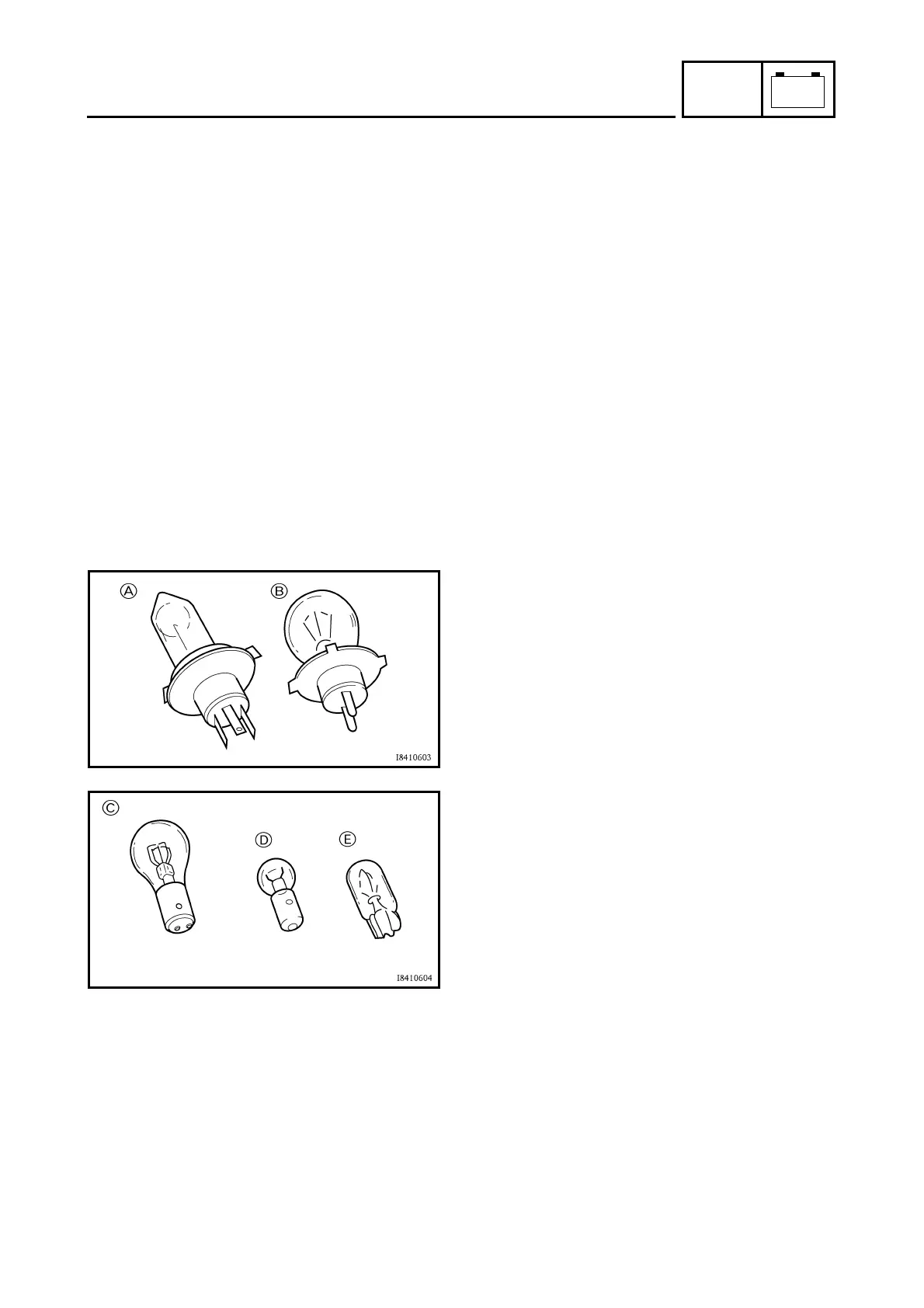

TYPES OF BULBS
The bulbs used on this motorcycle are shown
in the illustration on the left.
• Bulbs
A
and
B
are used for the headlights
and usually use a bulb holder that must be
detached before removing the bulb. The
majority of these types of bulbs can be
removed from their respective socket by
turning them counterclockwise.
• Bulb
C
is used for turn signal and tail/brake
lights and can be removed from the socket
by pushing and turning the bulb counter-
clockwise.
• Bulbs
D
and
E
are used for meter and indi-
cator lights and can be removed from their
respective socket by carefully pulling them
out.

Yamaha XT660X 2004 Specifications

General

Displacement	660 cc
Compression Ratio	10.0:1
Fuel System	Electronic Fuel Injection
Ignition	TCI
Starting System	Electric
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, 245 mm
Overall Width	865 mm
Wet Weight	186 kg
Fuel Capacity	15 liters
Engine Type	4-stroke, single cylinder, 4 valves
Bore x Stroke	100 mm x 84 mm
Max Power	35.3 kW (48 PS) @ 6, 000 rpm
Max Torque	58 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brake	Single disc
Front Tire	120/70-17
Rear Tire	160/60-17
