Yamaha XT660X 2004 - Installing the Camshaft and Rocker Arms

5 - 22
ENG

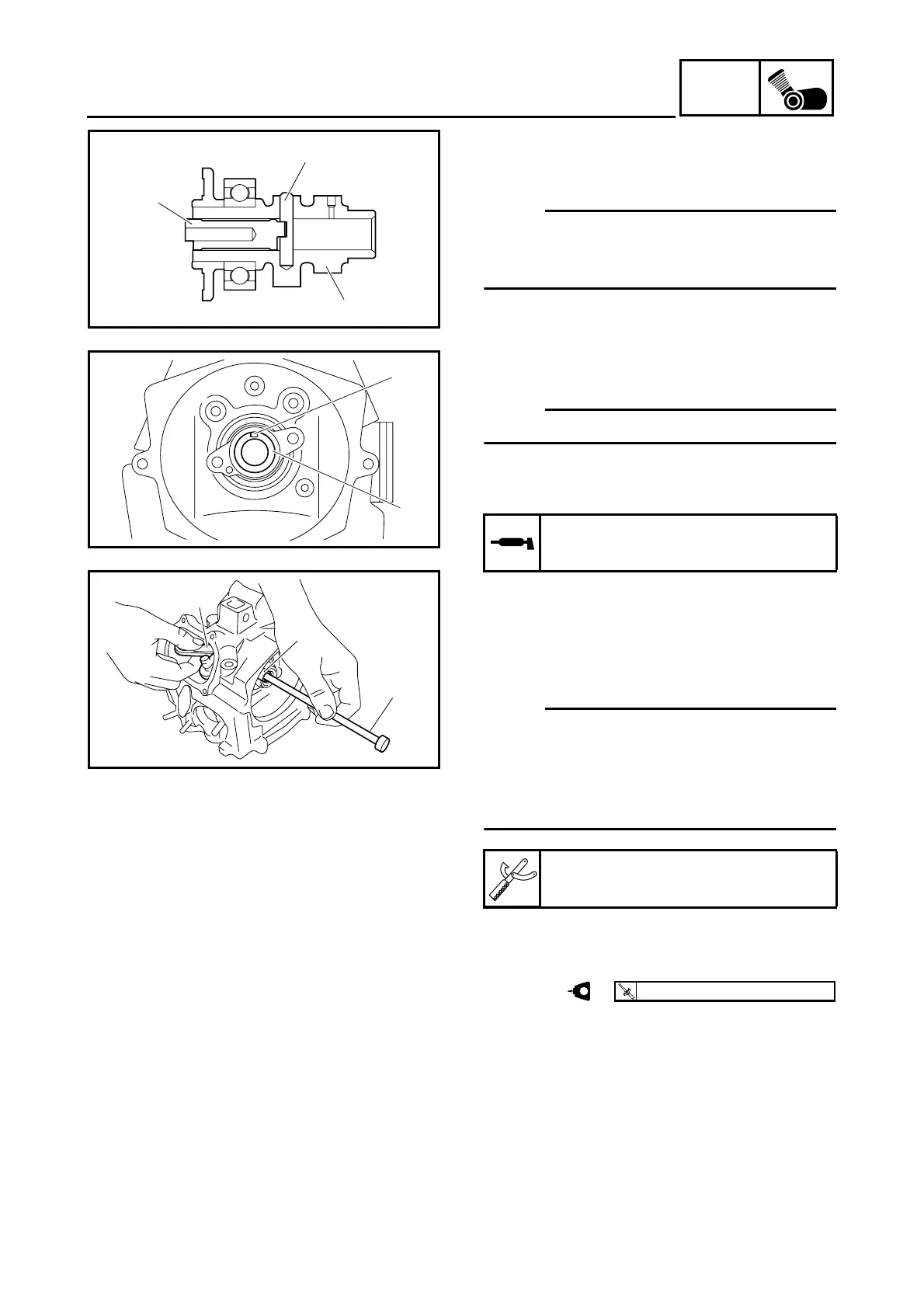

3. Install:
• decompressor lever pin 1
• decompressor lever 2
NOTE:
_
Install the decompressor lever pin 1 and
decompressor lever 2 in the camshaft 3 as
shown in the illustration.
1
3
2
4. Install:
• camshaft 1
NOTE:
Install the camshaft on the slot a facing up.
5. Lubricate:
• rocker arm shafts
6. Install:
• exhaust rocker arm 1
• exhaust rocker arm shaft 2
• intake rocker arm
• intake rocker arm shaft
NOTE:
_
• Use a slide hammer bolt 3 to install the
rocker arm shaft.
• Make sure the rocker arm shaft (intake and
exhaust) is completely pushed into the cylin-
der head.
7. Install:
• camshaft retainer
• camshaft retainer bolts
Recommended lubricant
Engine oil
Slide hammer bolt
90890-01083
1
a
3
2
1
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
LT
