Yamaha XT660X 2004 - Rear Brake Caliper

4 - 44
CHAS
FRONT AND REAR BRAKES
EAS00617
T
R
.
.
14 Nm (1.4 m
•
kg, 10 ft
•
Ib)
LS
1
6
4
5
5
3
2

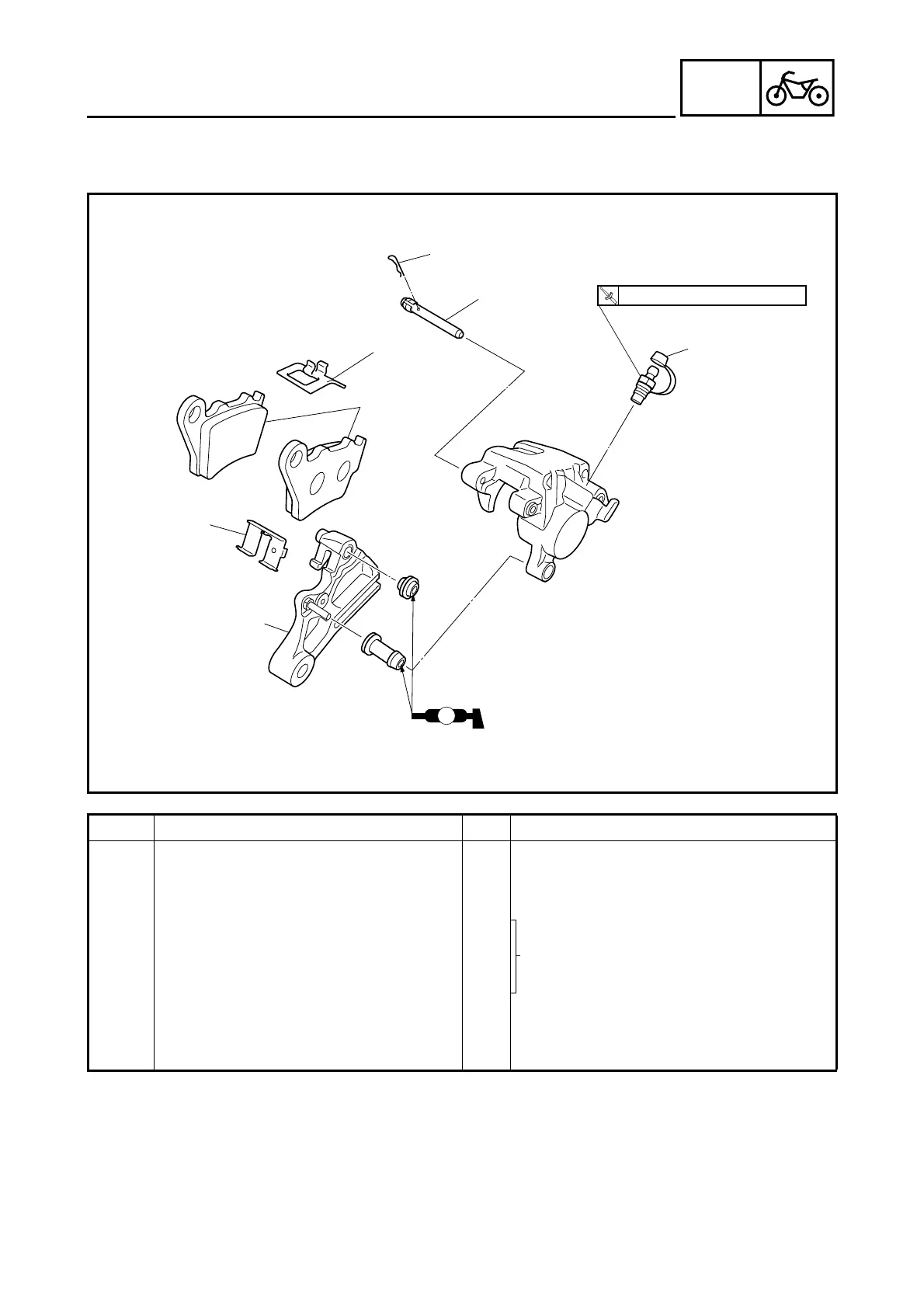

Order Job/Part Q’ty Remarks
Disassembling the rear brake cali-
per
Remove the parts in the order listed.
1 Brake caliper bracket 1
2 Brake pad clip 1
Refer to “INSTALLING THE REAR
BRAKE CALIPER”.
3 Brake pad pin 1
4 Brake pad 2
5 Brake pad spring 2
6 Bleed screw 1
For assembly, reverse the disassembly
procedure.
