3 - 8
CHK
ADJ
AIR FILTER CASE

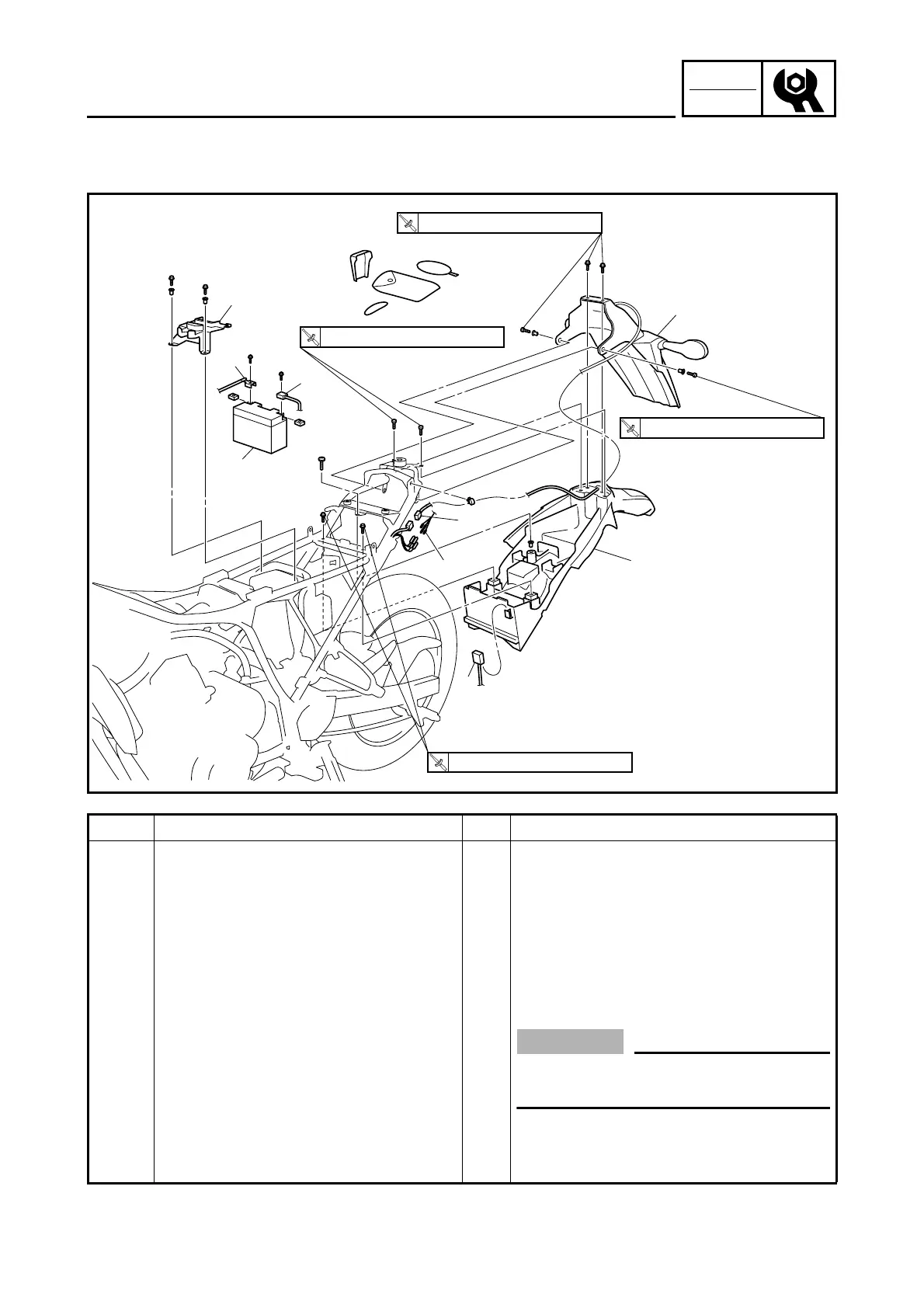

REAR MUD GUARD AND REAR FENDER
2
2
1
3
8
4
5
6
7
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
Order Job/Part Q’ty Remarks
Removing the rear mud guard and
rear fender
Remove the parts in the order listed.
Seat/side panels (left and right)/rear
cover
Refer to “COWLING AND COVER”.
Fuel tank Refer to “FUEL TANK”.
Muffler Refer to “ENGINE” in chapter 5.
1 Battery cover 1
2 Battery lead 2 Disconnect.
CAUTION:
First, disconnect the negative battery
lead, then the positive battery lead.
3 Battery 1
4 Tali/brake light coupler 1 Disconnect.
5 Rear turn signal light connector 4 Disconnect.
AIR FILTER CASE
