Yamaha XT660X 2004 - Throttle Body Assembly

7 - 24
FI
8
8
11
10
10
4
T
R
.
.
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
3
1
2
6
5
7
9

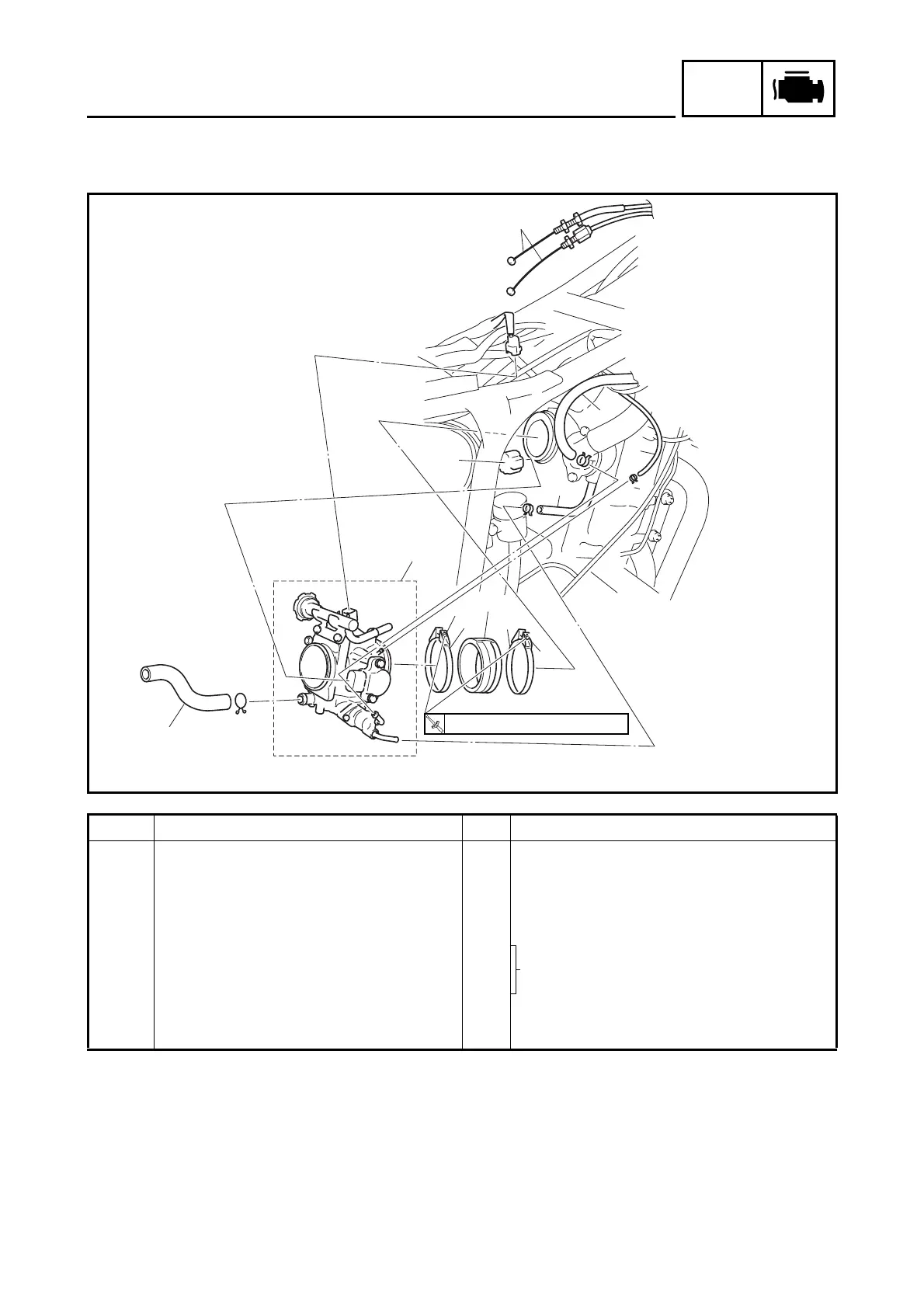

Order Job/Part Q’ty Remarks
5 Fast idle plunger outlet hose 1 Disconnect.
6 Fast idle plunger inlet hose 1
7 Pilot air hose 1
8 Throttle body joint clamp screw 2 Loosen.
9 Throttle body assembly 1
Refer to “INSTALLING THE THROT-
TLE BODY ASSEMBLY”.
10 Throttle body joint clamp 2
11 Throttle body joint 1
For installation, reverse the removal pro-
cedure.
THROTTLE BODY ASSEMBLY
