Yamaha XT660X 2004 - Valves and Valve Springs

5 - 24
ENG
VALVES AND VALVE SPRINGS
EAS00237
REMOVING THE VALVES
The following procedure applies to all of the
valves and related components.
NOTE:
_
Before removing the internal parts of the cylin-
der head (e.g., valves, valve springs, valve
seats), make sure the valves properly seal.

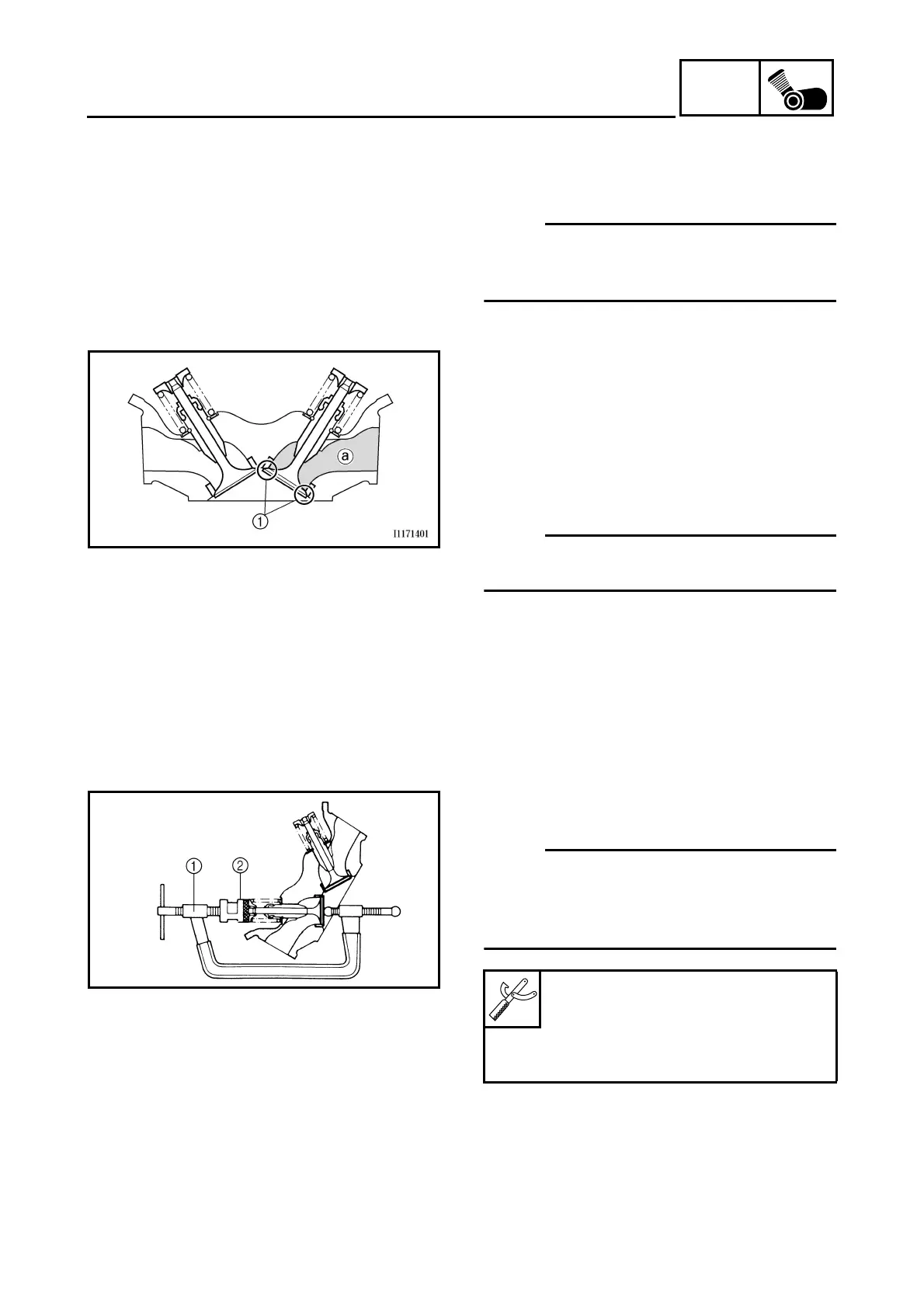

1. Check:
• valve sealing
Leakage at the valve seat
→
Check the
valve face, valve seat, and valve seat width.
Refer to “CHECKING THE VALVE SEATS”.
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Pour a clean solvent
a
into the intake and
exhaust ports.
b. Check that the valves properly seal.
NOTE:
_
There should be no leakage at the valve seat
1
.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
2. Remove:
• valve cotters
NOTE:
_
Remove the valve cotters by compressing the
valve spring with the valve spring compressor
1
and the valve spring compressor attach-
ment
2
.
Valve spring compressor
90890-04019
Valve spring compressor attach-
ment
90890-01243
