5 - 74
ENG
CRANKCASE
EAS00418

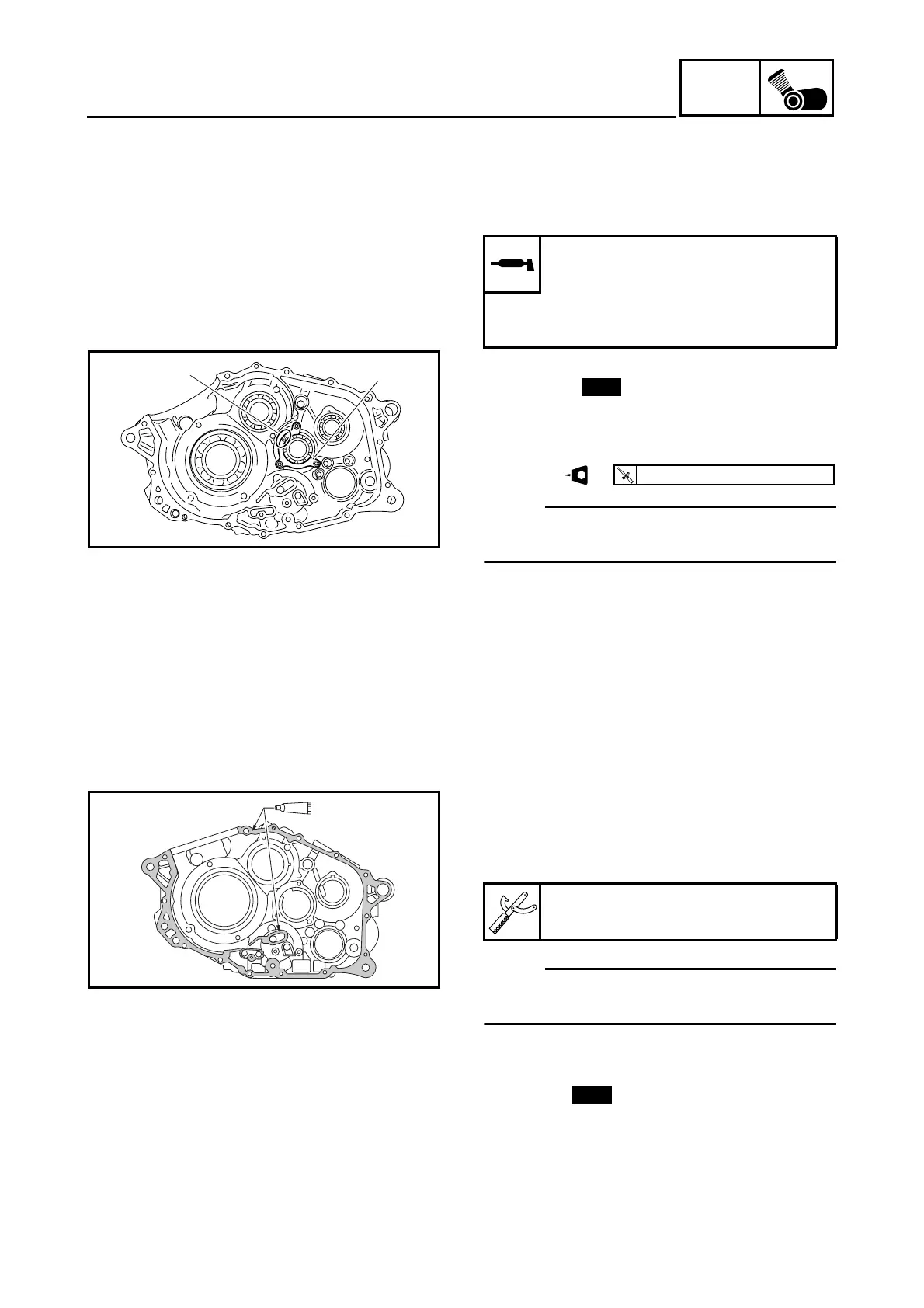

ASSEMBLING THE CRANKCASE
1. Lubricate:
• bearings
• oil seals
2. Install:
• bearings
• bearing retainer
1
(to the right crankcase)
• bearing retainer bolts
NOTE:
Install the bearing retainer with the “OUT”
mark
a
facing up.
3. Thoroughly clean all the gasket mating sur-
faces and crankcase mating surfaces.
Recommended lubricant
Bearing
Engine oil
Oil seal
Lithium-soap-based grease
New
1
a
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
LT
4. Apply:
• Yamaha bond No. 1215
1
(to the mating surfaces of both crankcase
halves)
NOTE:
_
Do not allow any sealant to come into contact
with the oil gallery.
5. Install:
• dowel pins
• O-rings
Yamaha bond No. 1215
90890-85505
1
New
