Yamaha XT660X 2004 - Cowling and Cover; Cover

3 - 4
CHK
ADJ

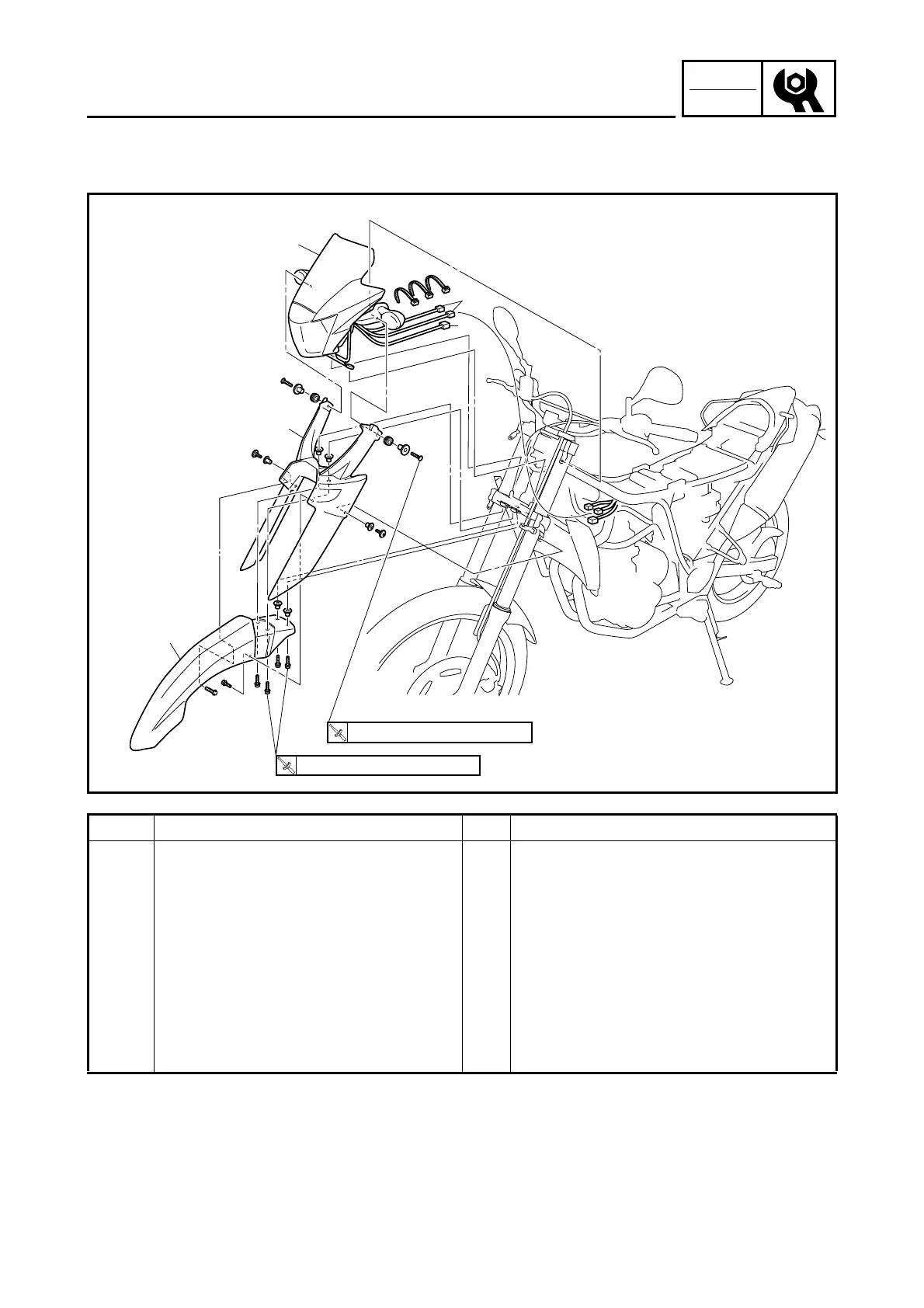

COWLING AND COVER
COWLING
T
R
.
.
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
3
4
5
2
1
Order Job/Part Q’ty Remarks
Removing the cowling
Remove the parts in the order listed.
Seat/side panels (left and right) Refer to “COWLING AND COVER”.
Fuel tank Refer to “FUEL TANK”.
1 Front fender 1
2 Front fork protector 1
3 Meter assembly coupler 2 Disconnect.
4 Sub-wire harness coupler 1 Disconnect.
5 Front cowling assembly 1
For installation, reverse the removal pro-
cedure.
