Yamaha XT660X 2004 - Engine; Adjusting the Valve Clearance

3 - 14
CHK
ADJ

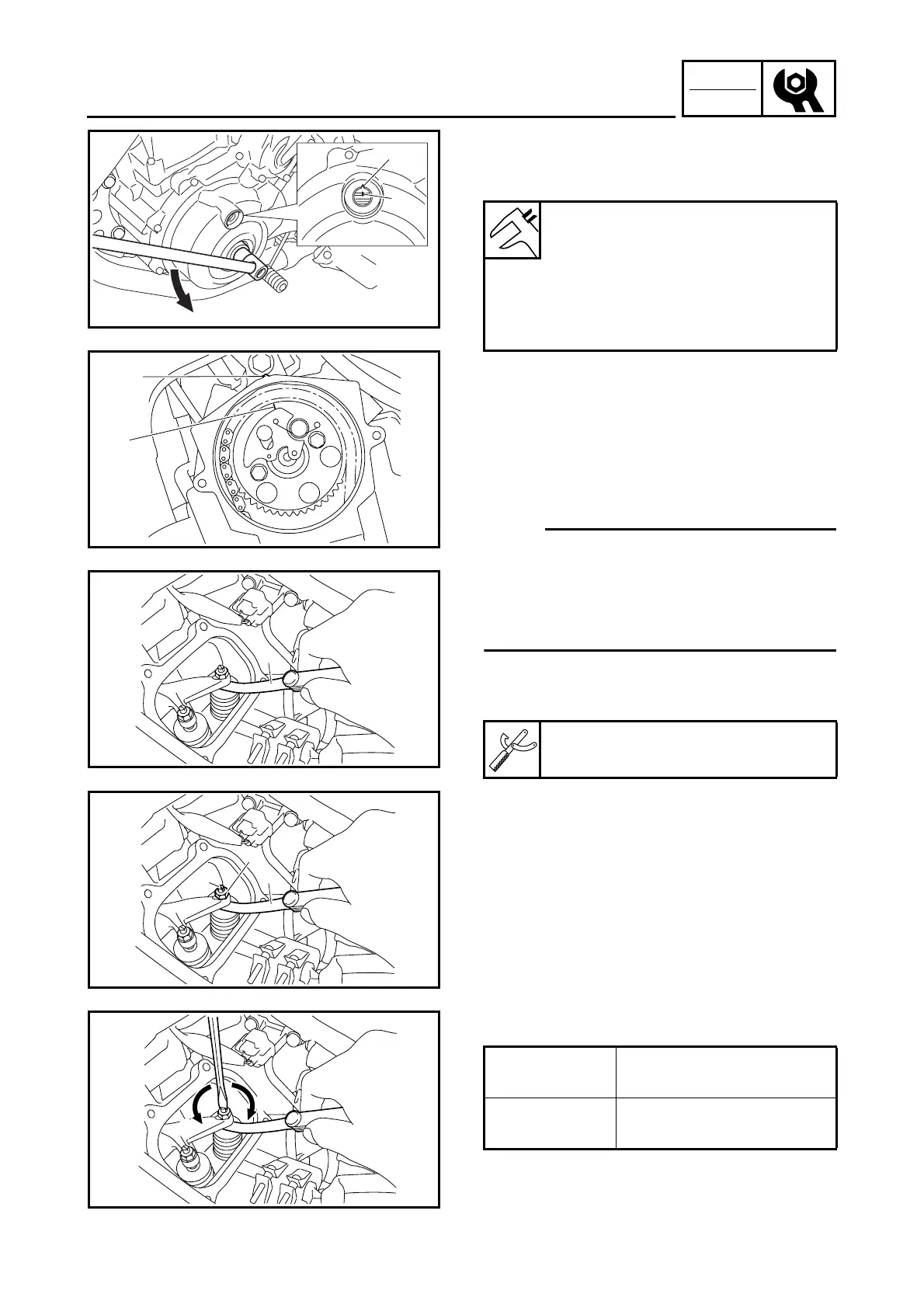

ADJUSTING THE VALVE CLEARANCE
6. Measure:
• valve clearance
Out of specification → Adjust.
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the crankshaft counterclockwise.
b. When the piston is at the top dead center
(TDC) on the compression stroke, align the
“I” mark a on the A.C. magneto rotor with
the stationary pointer b on the A.C. mag-
neto cover.
NOTE:
To position the piston at top dead center (TDC)
on the compression stroke, align the “I” mark
c on the camshaft sprocket with the stationary
pointer d on the cylinder head, as shown in
the illustration.
c. Measure the valve clearance with a thick-
ness gauge 1.
Out of specification → Adjust.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
7. Adjust:
• valve clearance
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Loosen the locknut 1.
b. Insert a thickness gauge 2 between the
end of the adjusting screw and the valve tip.
c. Turn the adjusting screw 3 in direction a
or b until the specified valve clearance is
obtained.
Valve clearance (cold)
Intake valve
0.09 ~ 0.13 mm
(0.0035 ~ 0.0051 in)
Exhaust valve
0.16 ~ 0.20 mm
(0.0063 ~ 0.0079 in)
Thickness gauge
90890-03079
Direction
a
Valve clearance is
increased.
Direction
b
Valve clearance is
decreased.
a
b
1
c
d
2
3
1
a
b
