LONG-TERM STORAGE
JH Series Operation Manual 95
12/05
4JH4-TE

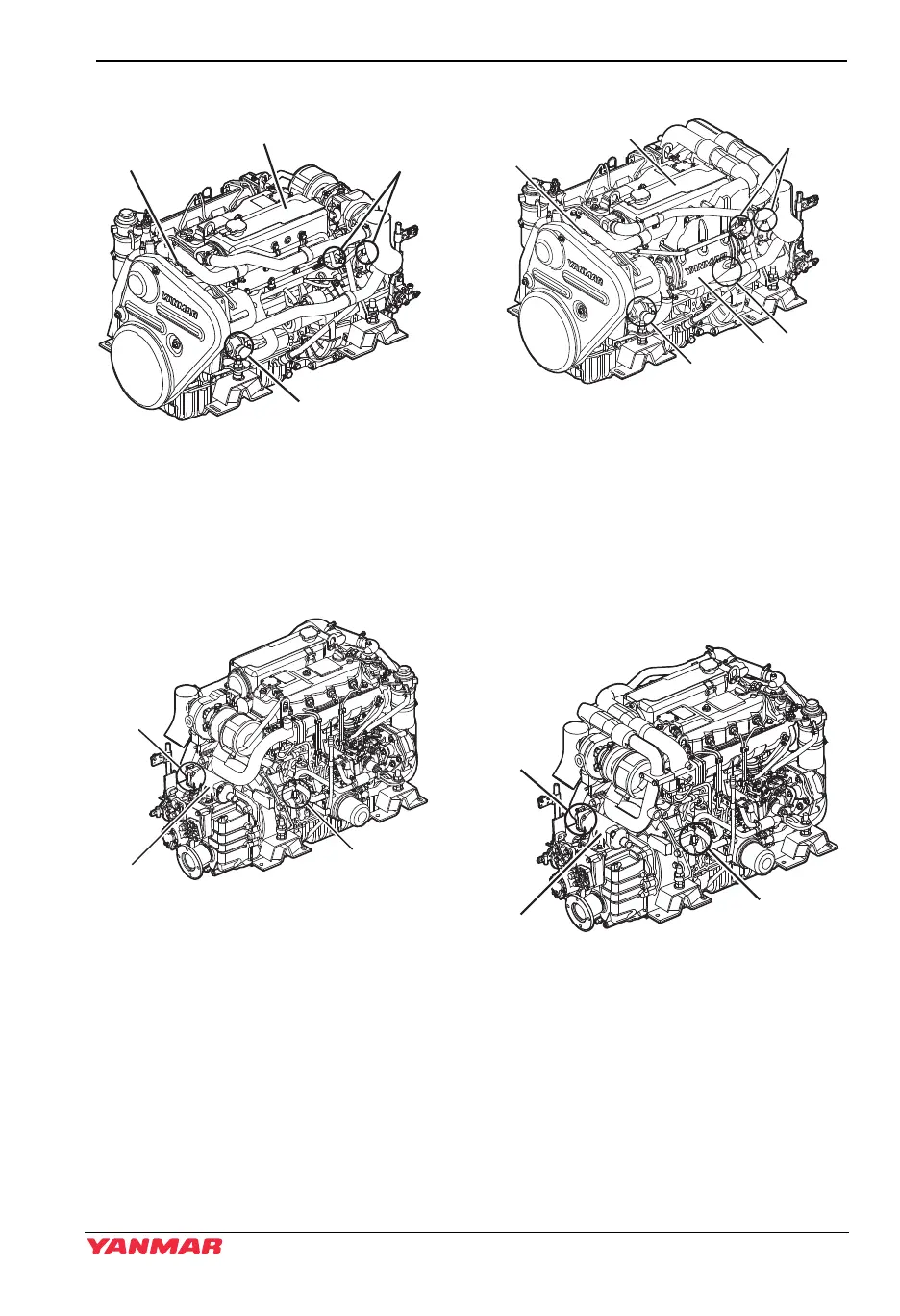

Figure 5
1 – Coolant Tank (heat exchanger)
2 – Coolant Pump
3 – Seawater Drain from Seawater
Pump Cover
4 – Coolant Drain Cock (two used)
Figure 6
1 – Coolant Drain Cock
2 – Seawater Drain Cock
3 – Marine Gear Cooler
4JH4-HTE1 / 4JH4-HTE
Figure 7
1 – Coolant Tank (heat exchanger)
2 – Coolant Pump
3 – Seawater Drain from Seawater
Pump Cover
4 – Coolant Drain Cock
5 – Air cooler
6 – Seawater Drain from Heat
Exchanger
Figure 8
1 – Coolant Drain Cock
2 – Seawater Drain Cock
3 – Marine Gear Cooler
Note: The drain cocks are opened
before shipping from the factory.
Marine gear ZF25A does not
have a drain cock on the clutch
cooler.
