PRODUCT OVERVIEW
20 JH Series Operation Manual
Right Side (Viewed from
Flywheel) - 4JH4-HTE1 /
4JH4-HTE

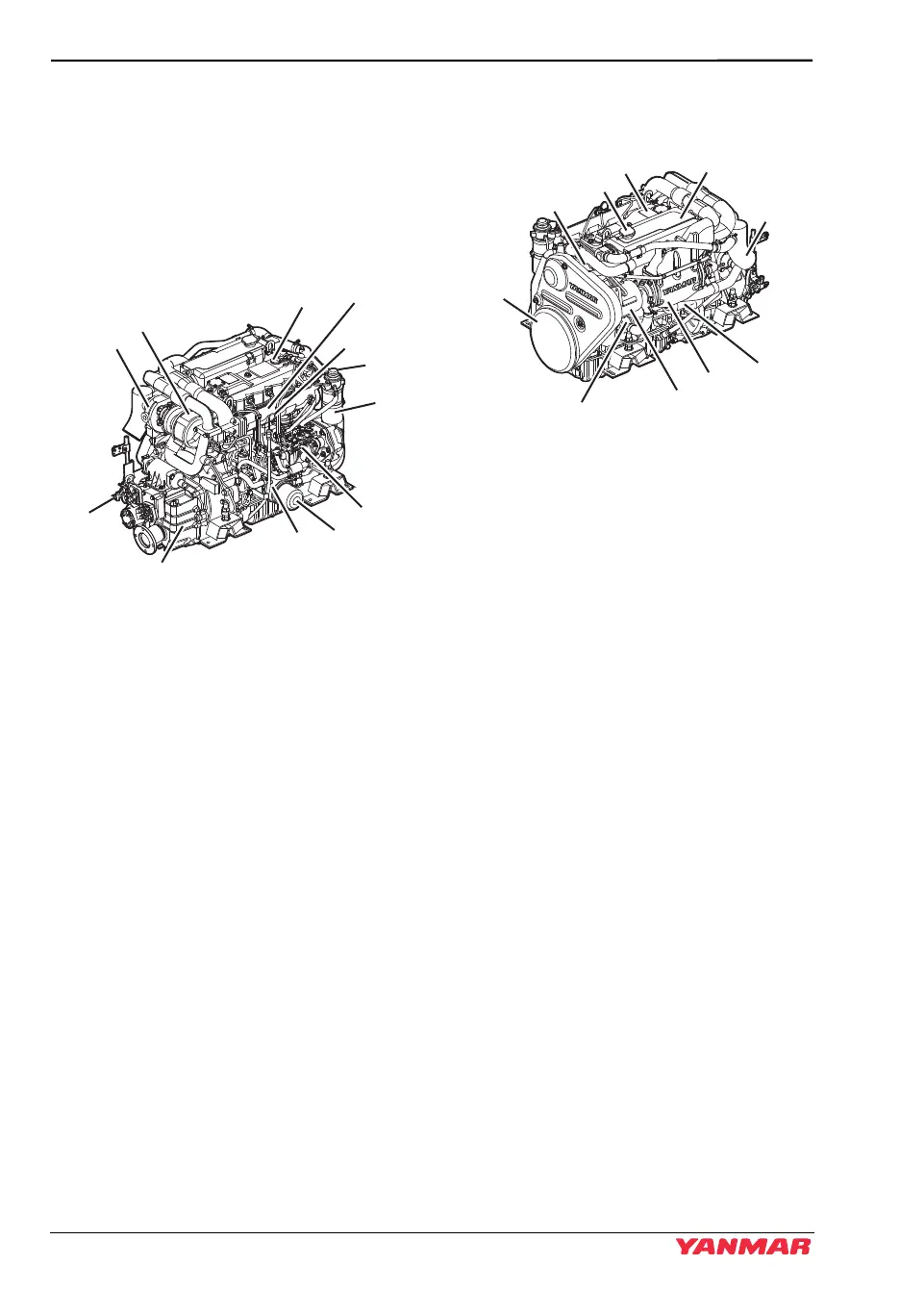

Figure 7 and Figure 8 illustrate a typical
version of a 4JH4-HTE1, 4JH4-HTE
engine. Your engine may have different
equipment from that illustrated.
Figure 7
1 – Intake Silencer
2 – Turbocharger
3 – Shift Lever (KMH4A)
4 – Marine Gear (KMH4A)
5 – Engine Oil Cooler
6 – Engine Oil Filter
7 – Fuel Injection Pump
8 – Fuel Filter
9 – Fuel Priming Pump
10 – Engine Oil Dipstick
11 – Intake Manifold
12 – Engine Oil Filler Cap
Left Side (Viewed from Flywheel)
- 4JH4-HTE1 / 4JH4-HTE
Figure 8
1 – Engine Nameplate (on rocker
arm cover)
2 – Coolant Filler Cap
3 – Coolant Pump
4 – Belt Cover
5 – Seawater Pump
6–Alternator
7 – Air cooler
8–Starter Motor
9 – Exhaust Mixing Elbow
10 – Coolant Tank / Heat Exchanger
