PRODUCT OVERVIEW
JH Series Operation Manual 19
12/05
Right Side (Viewed from
Flywheel) - 4JH4-TE

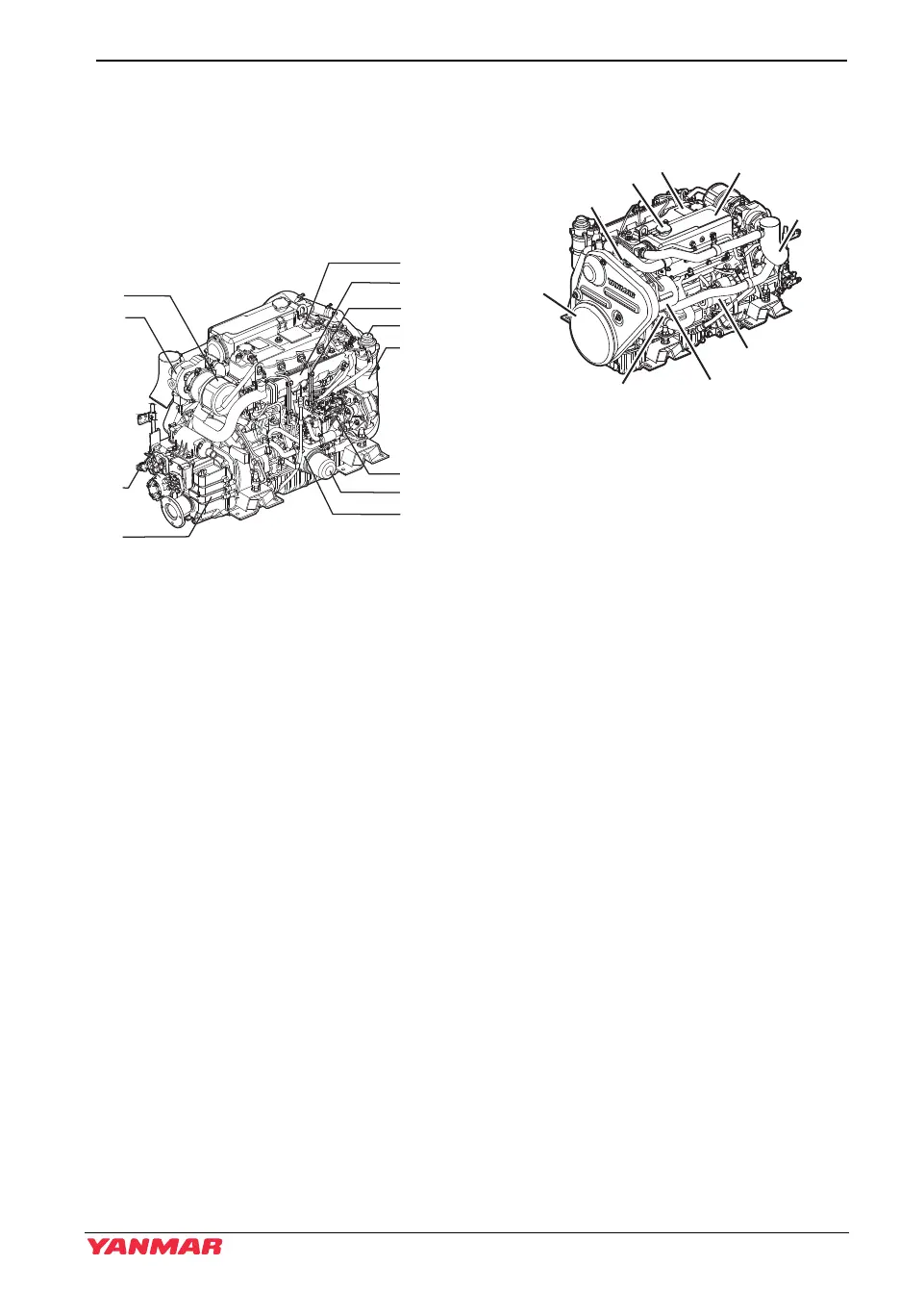

Figure 5 and Figure 6 illustrate a typical
version of a 4JH4-TE engine. Your engine
may have different equipment from that
illustrated.
Figure 5
1 – Intake Silencer (air cleaner)
2 – Turbocharger
3–Shift Lever
4 – Marine Gear (KMH4A shown)
5 – Engine Oil Cooler
6 – Engine Oil Filter
7 – Fuel Injection Pump
8 – Fuel Filter
9 – Fuel Priming Pump
10 – Engine Oil Dipstick
11 – Intake Manifold
12 – Engine Oil Filler Cap
Left Side (Viewed from Flywheel)
- 4JH4-TE
Figure 6
1 – Engine Nameplate (on rocker
arm cover)
2 – Coolant Filler Cap
3 – Coolant Pump
4 – Belt Cover
5 – Seawater Pump
6–Alternator
7 – Starter Motor
8 – Exhaust / Water Mixing Elbow
9 – Coolant Tank / Heat Exchanger
(12)
(11)
(9)
(10)
(8)
(7)
(6)
(5)
(4)
(3)
(2)
(1)
0004516
(1)
(2)
(3)
(9)
(6)
(8)
(7)
(5)
(4)
0004547
