Instrument Panel

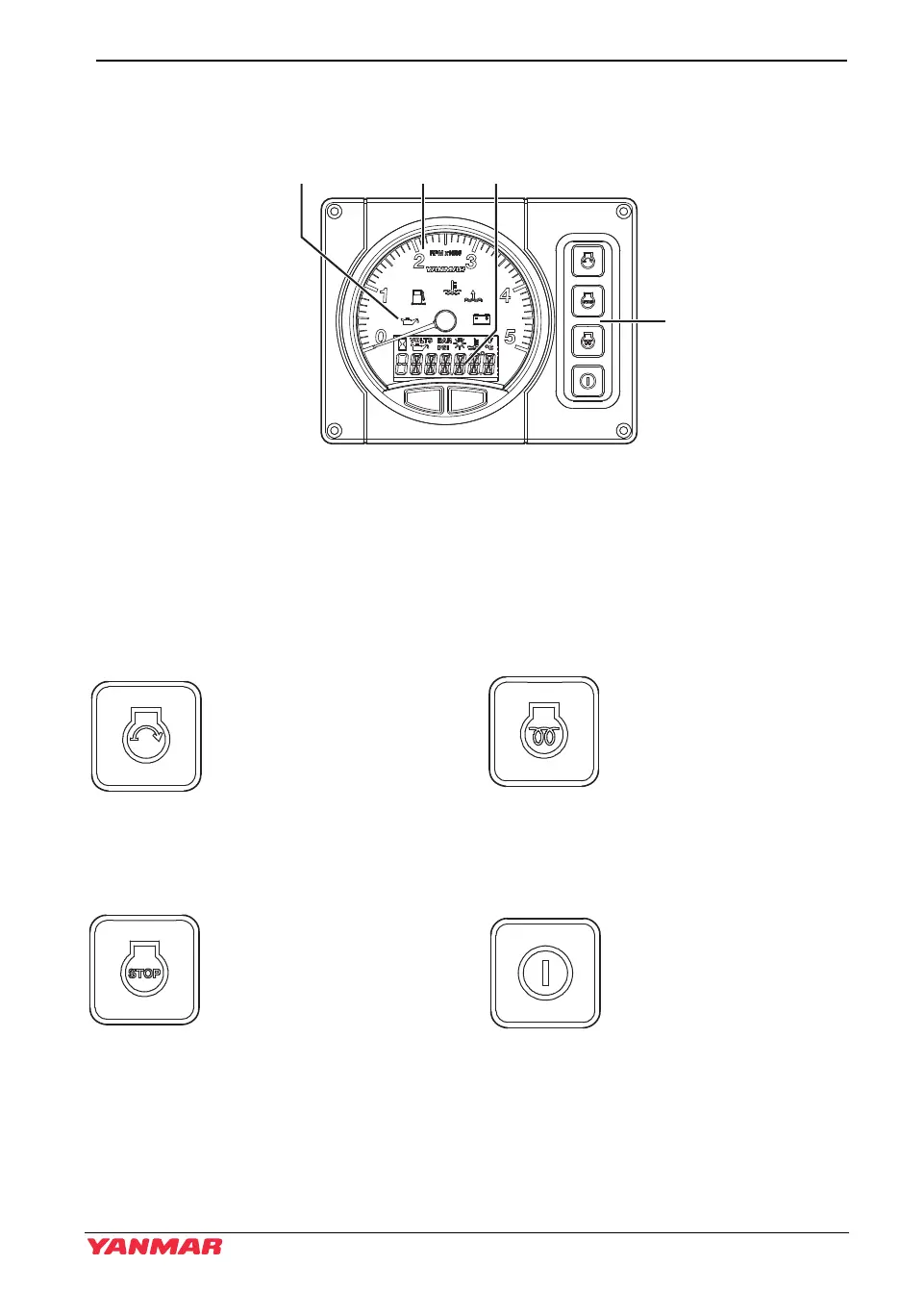

The formats for the instrument panel are shown below.
Figure 14
1 – Alarm lamp
2–Tachometer
3–LCD
4 – Switches (push-buttons)
Control panel switches
All switches are push-buttons.
042563-00X00
4
213
Start switch
Pushing this switch
operates the starter and
starts the engine.
Stop switch
Pushing this switch stops
the engine.
042564-00X00
042565-00X00
Glow switch
Pushing this switch for the
specified time heats the air
heater on the air intake
manifold. It becomes
red-hot, facilitating fuel
ignition. This assists starting
in cold weather.
Power switch
Pushing this switch turns
on or off the power.
042566-00X00
042567-00X00
