PERIODIC MAINTENANCE
84 JH Series Operation Manual
3JH5E

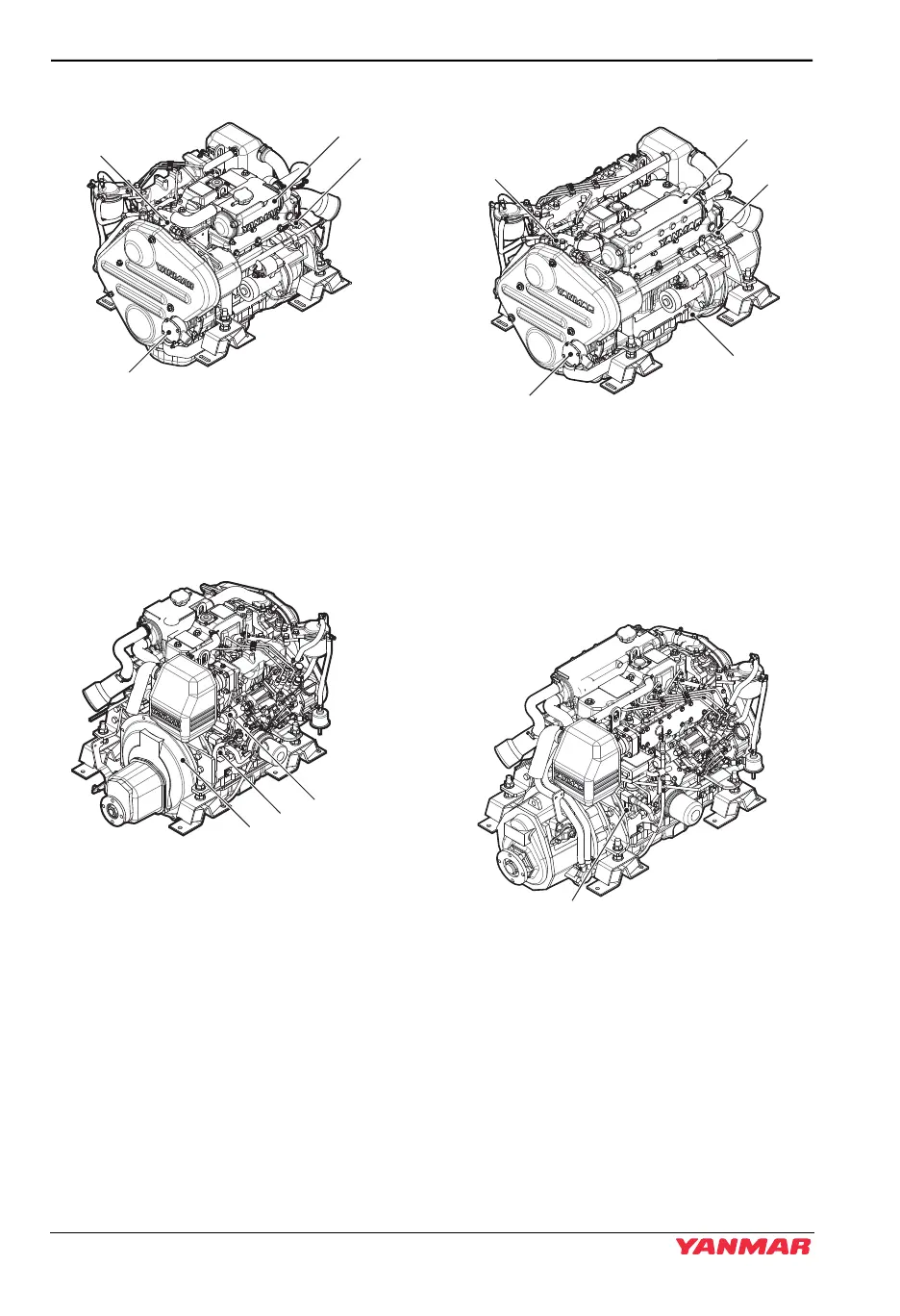

Figure 20
1 – Coolant Pump
2 – Seawater Drain from Seawater
Pump Cover
3 – Coolant Drain Cock
4 – Coolant Tank (heat exchanger)
Figure 21
1 – Flywheel Housing
2 – Coolant Drain Cock
3 – Stop Solenoid
4JH5E
Figure 22
1 – Coolant Pump
2 – Seawater Drain from Seawater
Pump Cover
3 – Coolant Tank (heat exchanger)
4 – Coolant Drain Cock
5 – Flywheel Housing
Figure 23
1 – Coolant Drain Cock
026099-00X
(1)
(2)
(4)
(3)
(3)
(2)
(1)
026100-00X
027140-00X
(2)
(3)
(4)
(5)
(1)
026115-00X
(1)
