SLIDE POLYCARBONATE CENTRE
AND LEFT RIGHT SIDE PANELS
SLIDE POLYCARBONATE CENTRE
AND LEFT RIGHT SIDE PANELS
Step 3: Back Wall Assembly
Part 6
Remove lm from both sides of Left
FB Side Panel, Right FB Side Panel
and Back Centre Panel.
I: Refer to pages 16 and 17 and apply
top and bottom tape to Left FB Side
Panel, Right FB Side Panel and Back
Centre Panel.

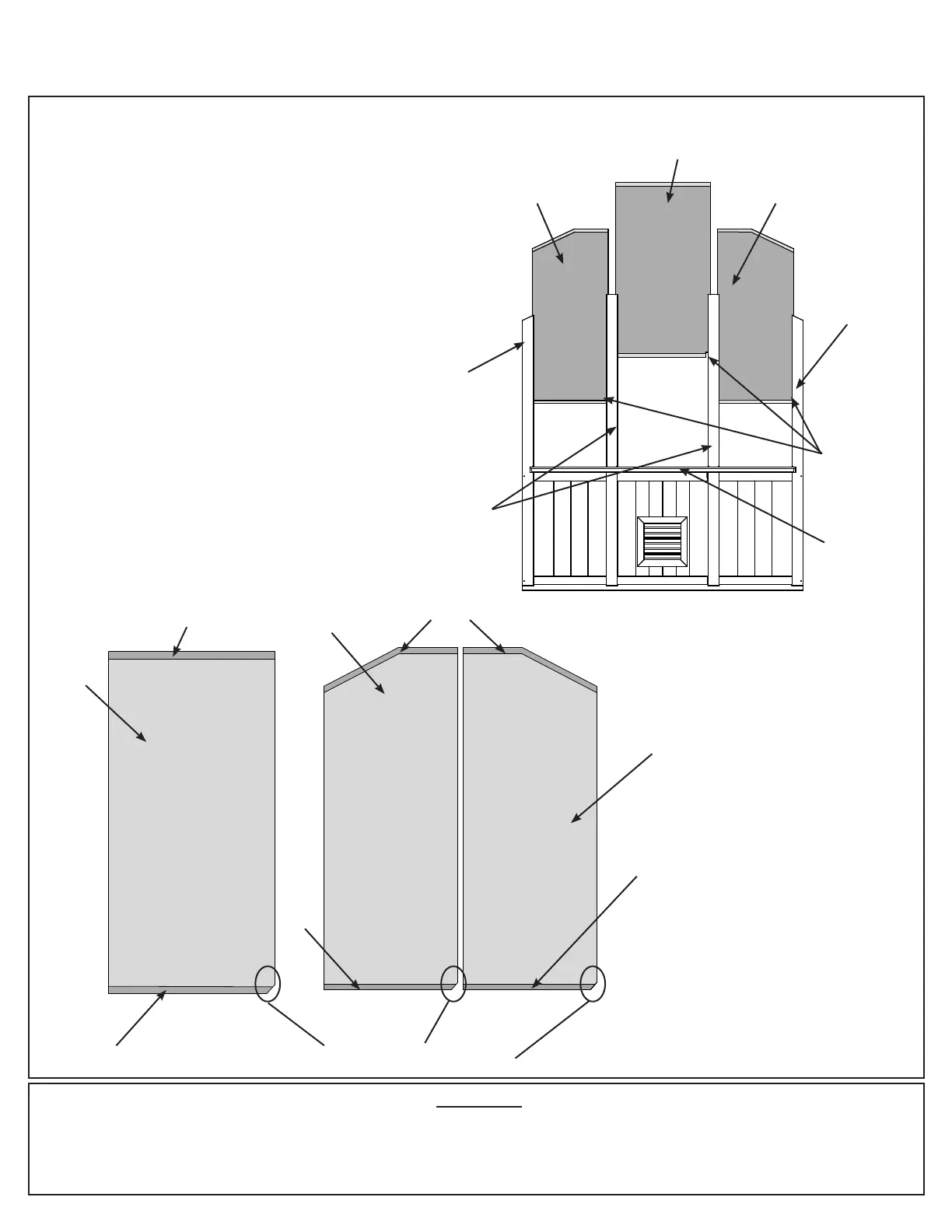

J: In the grooves of Left and Right
Posts and Back Post slide Left FB Side
Panel and Right FB Side Panel down
Sill. In the grooves of Back Posts slide
grooves of (1106) Back Wall Sill. Make
sure the notch at the bottom is always
on the right side of the panel. The UV
coated side must be to the outside of the
frame. (F3.14 and F3.15)
Components
1 x Left FB Side Panel
1 x Right FB Side Panel
1 x Back Centre Panel
(1108)
Left Post
(1109)
Right
Post
Left FB
Side
Panel
(1113)
Back
Post
F3.15
F3.14
Left FB Side
Panel
Right FB
Side Panel
Top Tape
Right FB
Side Panel
Bottom Tape
Bottom
Tape
Note: Notches always at the
bottom right of each panel
Notches on
this side
Note: UV
Coating to the
outside of the
frame
Top Tape
Bottom Tape
Top Tape
Back
Centre
Panel
Back Centre Panel
Bottom
Tape
(1106) Back
Wall Sill
Outside View
To Next Page
