34 support@yardistrystructures.com
#10 X 4” Wood Screws
CONNECT UPRIGHT INSIDE AND OUTSIDE TO THE BACK GABLE
BEAM
INSERT GUIDE SPACER IN BETWEEN BOTH UPRIGHTS TO ENSURE
SPACING

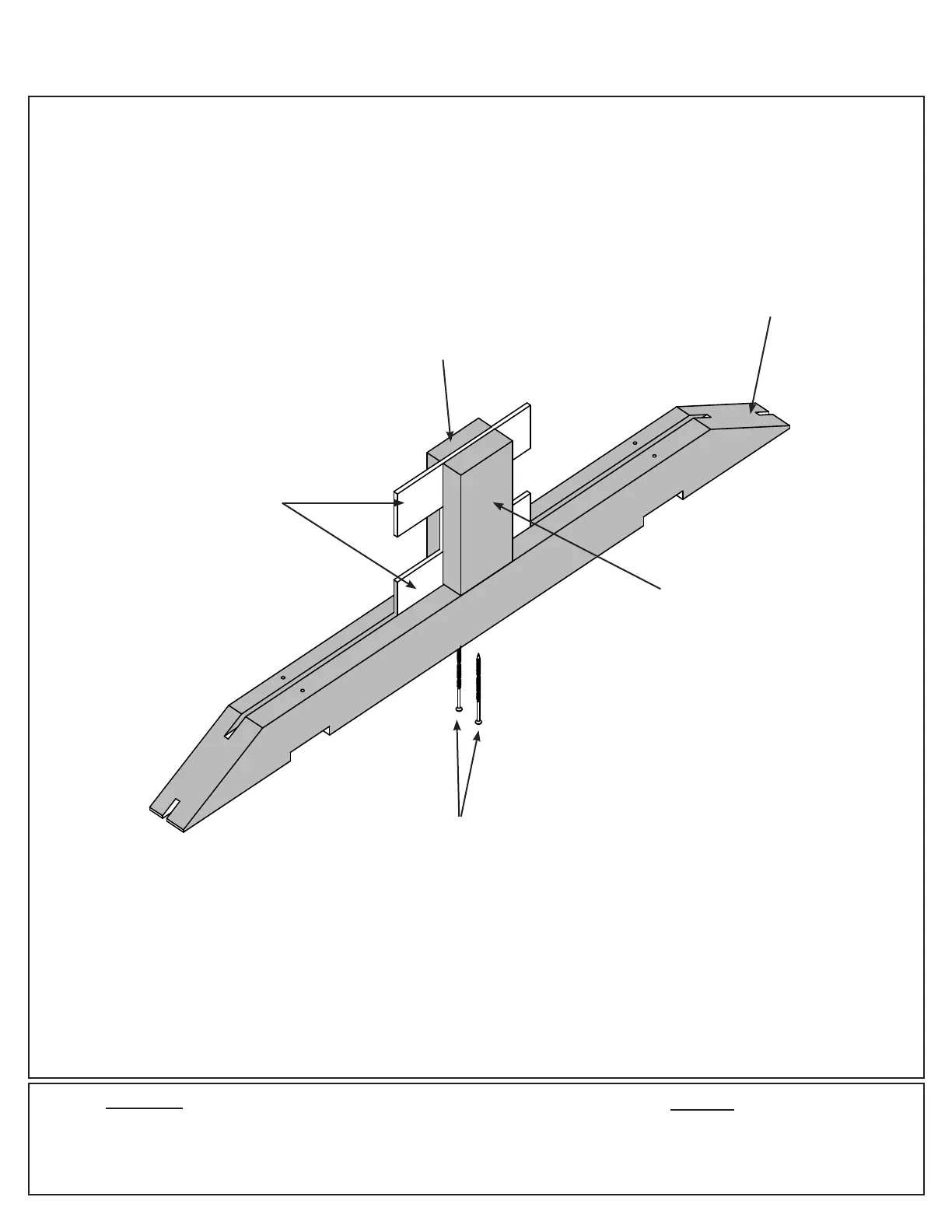

K: Place one (1121) Upright Inside and one (1122) Upright Outside centred on the top of (1117) Back Gable
Beam. Use one (1188) Guide Spacer in the grooves of (1117) Back Gable Beam and one at the top of the
uprights for proper spacing of Uprights. Attach Beam to Uprights with one #10 x 4” Wood Screw per upright.
Remove (1188) Guide Spacer. (F3.16)
Wood Parts
1 x (1117) Back Gable Beam
1 x (1121) Upright Inside
1 x (1122) Upright Outside
Guide Spacer
to be removed.
Hardware
2 x #10 x 4” Wood Screw
#10 x 4”
Wood Screw
(1117) Back
Gable Beam
(1121)
Upright
Inside
(1122)
Upright
Outside
Step 3: Back Wall Assembly
Part 7
F3.16
(1188) Guide
Spacer
