3 Receiving
YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 11

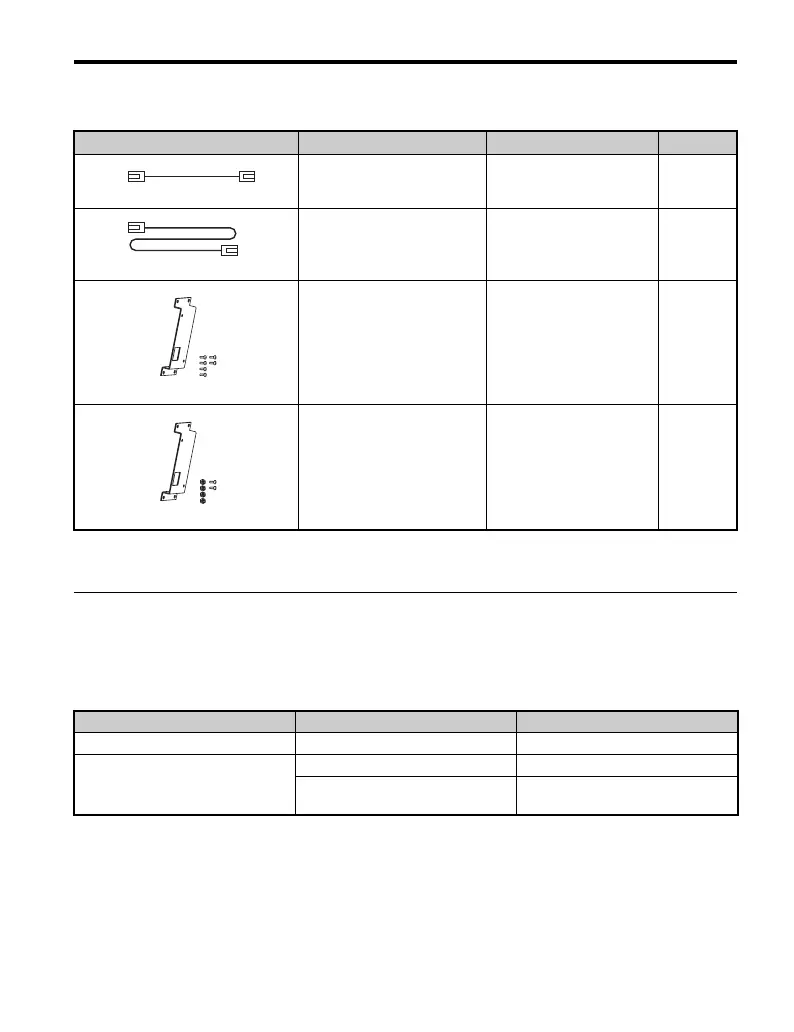

Table 4 Item Names and Part Numbers (Sold Separately)
◆ Tool Requirements
To install the LCD operator on the door of the enclosure panel, the following tools are
required:
Table 5 Required Tools
Item Yaskawa Part Number Notes Page
Communication Cable (1 m)
72606-WV001
<2>
<2> Alternate cables (customer supplied), RJ45 8 pin Straight Connector UTP Cat 5e cable.
Sold Separately 24
Communication Cable (3 m)
72606-WV003
<2> Sold Separately 24
Installation Support Set A
100-039-992
Sold Separately;
For use with holes
through the panel
22
Installation Support Set B
<1>
<1> If weld studs are on the back of the panel, use the Installation Support Set B.
100-039-993
Sold Separately;
For use with panel
mounted threaded studs
23
Installation Location Installation Support Required Tools
External/Face Mount – Phillips screwdriver, M3
Internal/Flush Mount
Installation Set A Phillips screwdriver, M3, M4
Installation Set B
Phillips screwdriver, M3
Box end or adjustable wrench, M4

YASKAWA Drive-V1000 Specifications

General

Series	V1000
Output Current	Varies by model (refer to specific model datasheet)
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Humidity	95% RH or less (non-condensing)
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Ground Fault, Short Circuit
Communication	Modbus RTU, PROFIBUS-DP, DeviceNet, EtherNet/IP
Braking Unit	Built-in or External (optional)
Input Voltage	3-Phase 200-240 VAC ±10% 50/60 Hz, 3-Phase 380-480 VAC ±10% 50/60 Hz
Output Voltage	0 to Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
