5 Installation Procedure
22 YASKAWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual

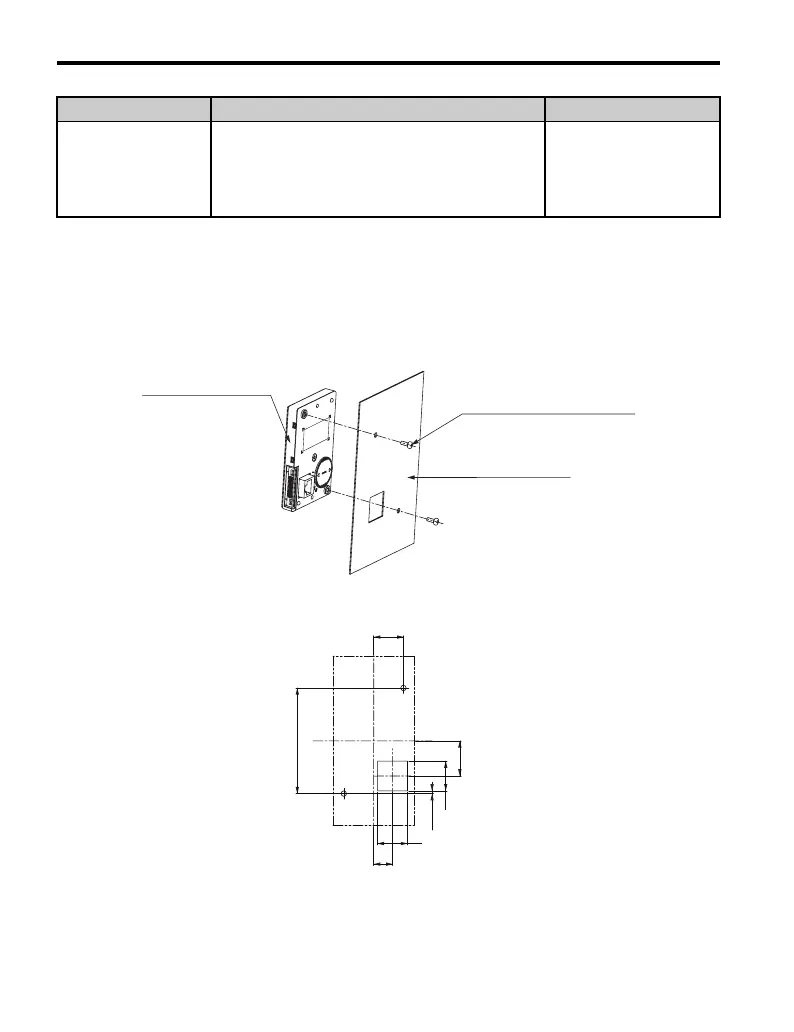

■ External/Face-mount Installation
1. Cut an opening in the enclosure panel for the LCD Operator Option according to
Figure 8.
2. Position the LCD Operator Option so the LCD display faces outwards, and mount
it to the enclosure panel as shown in Figure 7.
Figure 7
Figure 7 External/Face-mount Installation
Figure 8
Figure 8 Panel Cut-out Dimensions (External/Face-mount Installation)
Internal/Flush-mount
Encloses the LCD Operator Option in the panel.
The LCD Operator is flush with the outside of the
panel.
Requires purchase of
separate items. Refer to
Item Names and Part
Numbers (Sold
Separately) on page 11.
Installation Method Description Notes
M3 × 6 (0.24)
Phillips recessed
pan head machine screw × 2
Unit : mm (in)
LCD Operator Option
Enclosure panel
22 (0.87)
22(0.87)
14
(0.55) Unit : mm (in)
26
(1.02)
22
(0.87)
78 (3.07)
2 (0.08)

YASKAWA Drive-V1000 Specifications

General

Series	V1000
Output Current	Varies by model (refer to specific model datasheet)
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Humidity	95% RH or less (non-condensing)
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Ground Fault, Short Circuit
Communication	Modbus RTU, PROFIBUS-DP, DeviceNet, EtherNet/IP
Braking Unit	Built-in or External (optional)
Input Voltage	3-Phase 200-240 VAC ±10% 50/60 Hz, 3-Phase 380-480 VAC ±10% 50/60 Hz
Output Voltage	0 to Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
