4 LCD Operator Option Components
YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 13
◆ Keys

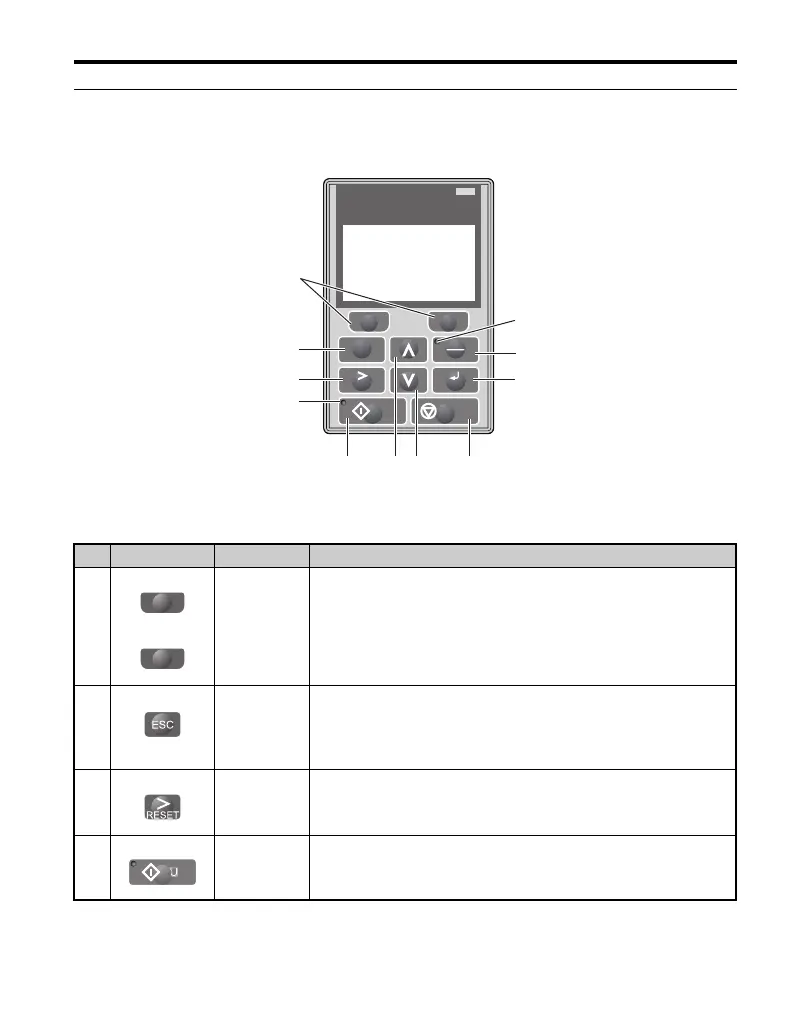

Refer to Figure 2 and Table 6 for details on key names and functions.
Figure 2
Figure 2 Keys
Table 6 Key Names and Functions
No. Key Name Function
1
Function
Key
(F1, F2)
The functions assigned to F1 and F2 vary depending on the menu
that is currently displayed. The name of each function appears in
the lower half of the display window.
For a description of functions assigned to the F1 and F2 keys,
Refer to LCD Display on page 17.
2ESC Key
• Returns to the previous display.
• Moves the cursor one space to the left.
• Pressing and holding this button will return to the Frequency
Reference display.
3RESET Key
• Moves the cursor to the right.
• Resets the drive to clear a fault situation.
4 RUN Key Starts the drive and motor.
LO
RE
F2F1
ESC
RUN STOP
ENTERRESET
ALM
DIGITAL OPERATOR JVOP-180
1
2
3
456 7
8
9
10
11
F1
F2
R
R
U
U
N

YASKAWA Drive-V1000 Specifications

General

Series	V1000
Output Current	Varies by model (refer to specific model datasheet)
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Humidity	95% RH or less (non-condensing)
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Ground Fault, Short Circuit
Communication	Modbus RTU, PROFIBUS-DP, DeviceNet, EtherNet/IP
Braking Unit	Built-in or External (optional)
Input Voltage	3-Phase 200-240 VAC ±10% 50/60 Hz, 3-Phase 380-480 VAC ±10% 50/60 Hz
Output Voltage	0 to Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
