4.1 MP3200 Installation and Usage Conditions
Control Panel Cooling Method
4-3
4
Specifications
Control Panels with Natural Cooling
• Do not mount the Machine Controller at the top of the control panel, where the hot air that is generated
inside the panel collects.
• Leave sufficient space above and below the Units, and maintain adequate distances from other devices,
cable ducts, and other objects to ensure suitable air circulation.
• Do not mount the Machine Controller in any direction other than the specified direction.
• Do not mount the Machine Controller on top of any device that generates a significant amount of heat.
• Do not subject the Machine Controller to direct sunlight.

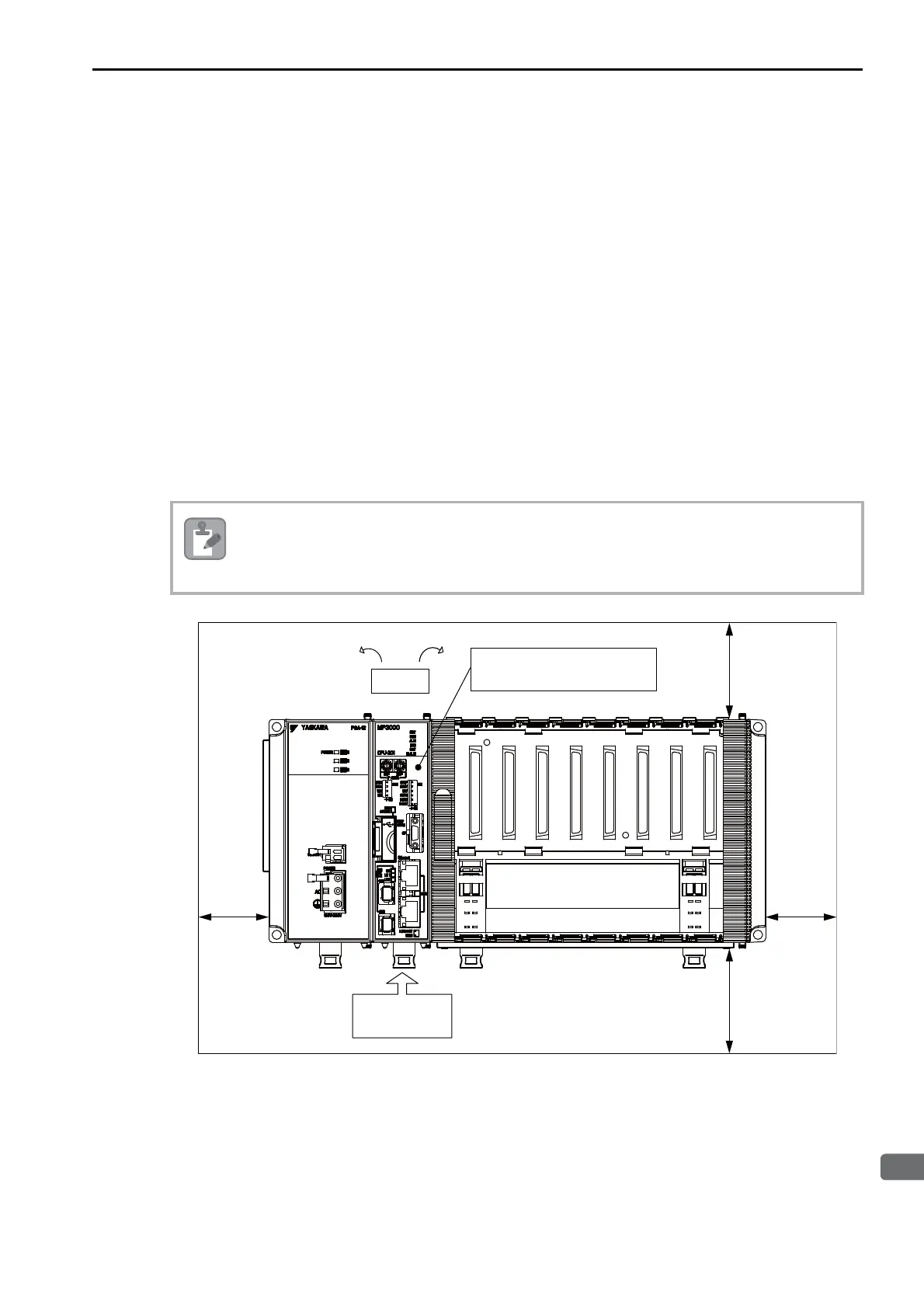

Control Panels with Forced-air Cooling
Use one of the following methods to ensure 0.03 m
3
/min average airflow below the CPU Unit.
• Forced draft method (A fan or a similar device is used to circulate the air in the interior and the exterior
of the panel.)
• Forced circulation method (A fan or a similar device is mounted to the airtight panel to circulate the air
inside.)
Use the following guideline when selecting the fan:
• CPU Unit’s resistance to air flow: 6 × 10
6
(N⋅s
2
/m
8
)
• The CPU-202 has a built-in Fan. You do not need to select or install a separate fan.
Note
Fan
30 mm min.
Average airflow:
0.03 m
3
/min
30 mm min.
40 mm min.
CPU Unit’s resistance to air flow:
6 × 10
6
(Nxs
2
/m
8
)
40 mm min.
