2.2 CPU Unit
Switches
2-10

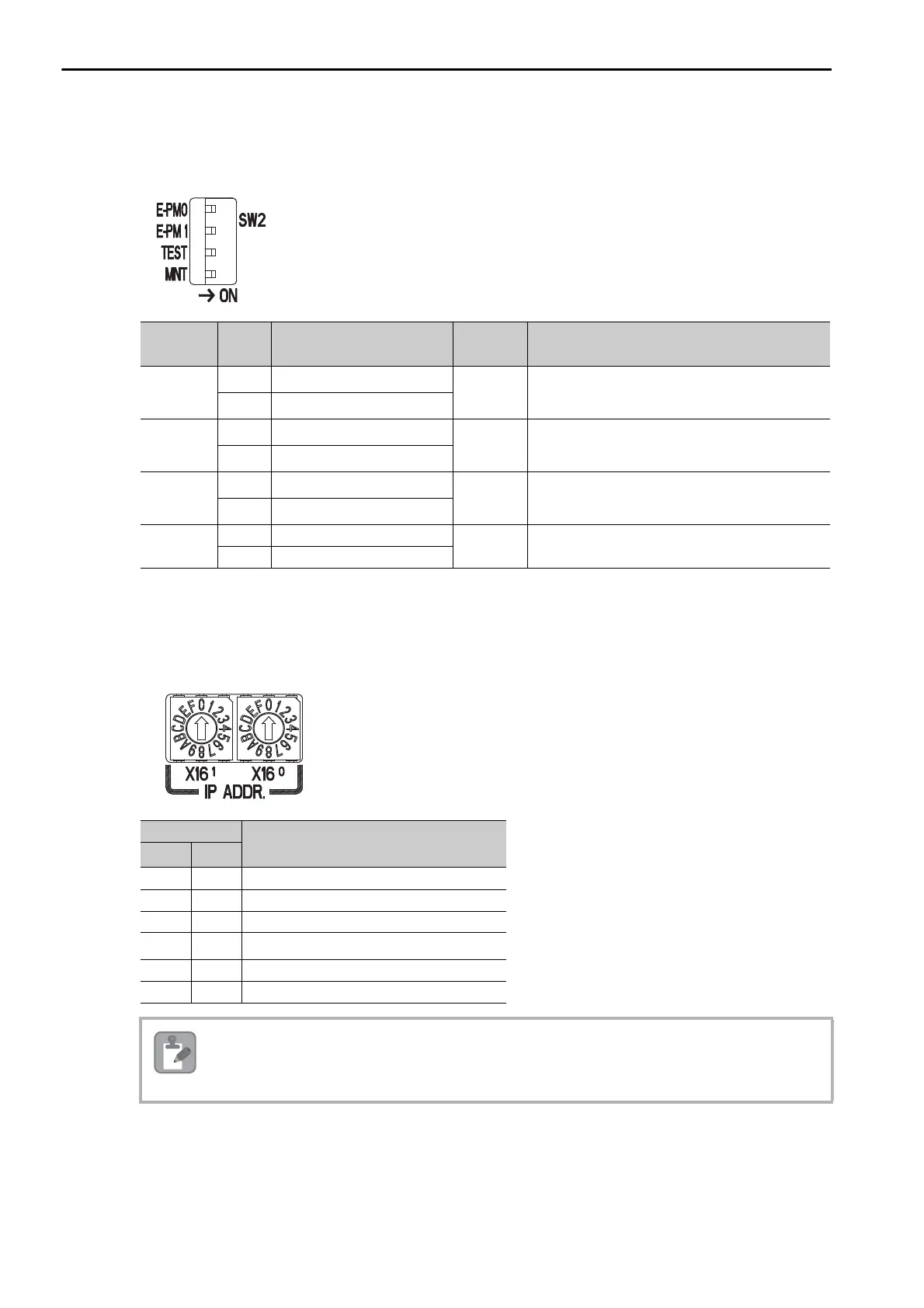

DIP Switch: Mode Switch 2
This DIP switch primarily sets the operating mode of the CPU Unit.
Rotary Switches
When the E-INIT pin on Mode Switch 1 is ON, the IP address will be set to 192.168.001.. The
value of is set on the rotary switches, S1 and S2. Set the hexadecimal value.
Pin Name Status Operating Mode Default Remarks
E-PM0
ON Reserved for system.
OFF Keep this pin OFF at all times.
OFF Normal operation
E-PM1
ON Reserved for system.
OFF Keep this pin OFF at all times.
OFF Normal operation
TEST
ON Reserved for system.
OFF Keep this pin OFF at all times.
OFF Normal operation
MNT
ON Reserved for system.
OFF Keep this pin OFF at all times.
OFF Normal operation
Set Value
IP Address
X16
1
X16
0
0 0 Reserved for system.
0 1 192.168.001.001 (default setting)
0 2 192.168.001.002
F E 192.168.001.254
F F Reserved for system.
To enable the rotary switch setting, turn ON the E-INIT pin on the mode switch 1. If the E-INIT pin is
OFF, the IP address will be set from the MPE720.
Note
