Wire Gauges and Tightening Torques
Wire gauge and torque specifications are listed in Table 44. For simpler and more reliable wiring, use crimp ferrules on
the wire ends. Refer to the option manuals for the wire size and torque specifications of other options.

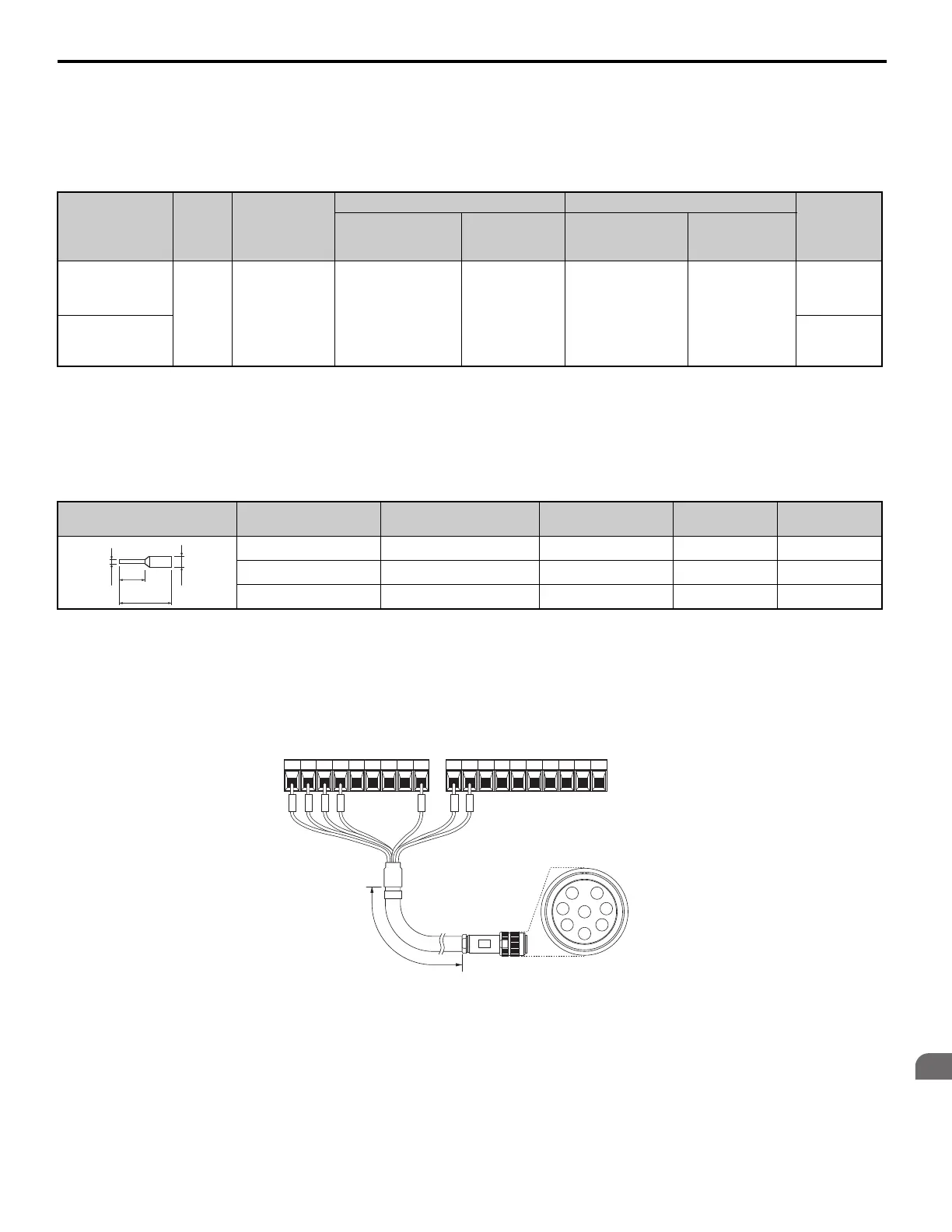

Table 44 Wire Gauges and Tightening Torques
Crimp Terminals
Yaskawa recommends using CRIMPFOX 6 by Phoenix Contact or equivalent crimp terminals with the specifications
listed in Table 45 for wiring to ensure proper connections.
Note: Properly trim wire ends so loose wire ends do not extend from the crimp terminals.
Table 45 Crimp Terminal Sizes
PG Encoder Cables for PG-B3 Option
Yaskawa recommends using a LMA-B-S185Y (complementary output) for cables running between the PG-B3
Option and the PG as show in Figure 96.
For instructions on wiring the terminal block, refer to Table 4 3.
Figure 88
Figure 96 Wiring PG Encoder Cable
Terminal Signal
Screw
Size
Tightening
Torque
Nm
(lb.in.)
Bare Cable Crimp Terminals
Wire Type
Applicable
Gauges
mm
2
Recomm.
Gauge
mm
2
Applicable
Gauges
mm
2
Recomm.
Gauge
mm
2
A+, A–, B+,
B–, Z+, Z–,
FE, IP, IG
M2
0.22 to 0.25
(1.95 to 2.21)
0.75
(18 AWG)
Stranded wire:
0.25 to 1.0
(24 to 17 AWG)
Solid wire:
0.25 to 1.5
(24 to 16 AWG)
0.5
(20 AWG)
0.25 to 0.5
(24 to 20 AWG)
Shielded
twisted pair,
etc.
AO, IG, BO,
IG, ZO, IG
Shielded
cable, etc.
Wire Gauge
mm
2
Phoenix Contact Model
L
mm (in)
d1
mm (in)
d2
mm (in)
0.25 (24 AWG) AI 0.25 - 6YE 10.5 (13/32) 0.8 (1/32) 2 (5/64)
0.34 (22 AWG) AI 0.34 - 6TQ 10.5 (13/32) 0.8 (1/32) 2 (5/64)
0.5 (20 AWG) AI 0.5 - 6WH 14 (9/16) 1.1 (3/64) 2.5 (3/32)
d1
d2
6 mm
(0.24 in.)
L
A+ A- B+ B- Z+ Z- SD FE
IP IG AO IG BO IG ZO IG
Ｌ
A
B
C
D
E
F
G
H
TA1
TB1 TB2
（
Pin
）
3456 E 12
PG encoder side
B3
