■ Switches and Jumpers on the Terminal Board
The terminal board is equipped with several switches used to adapt the drive I/Os to the external control signals.
Figure 29 shows the location of these switches. Refer to Control I/O Configuration on page 49 for setting instructions.
Figure 29

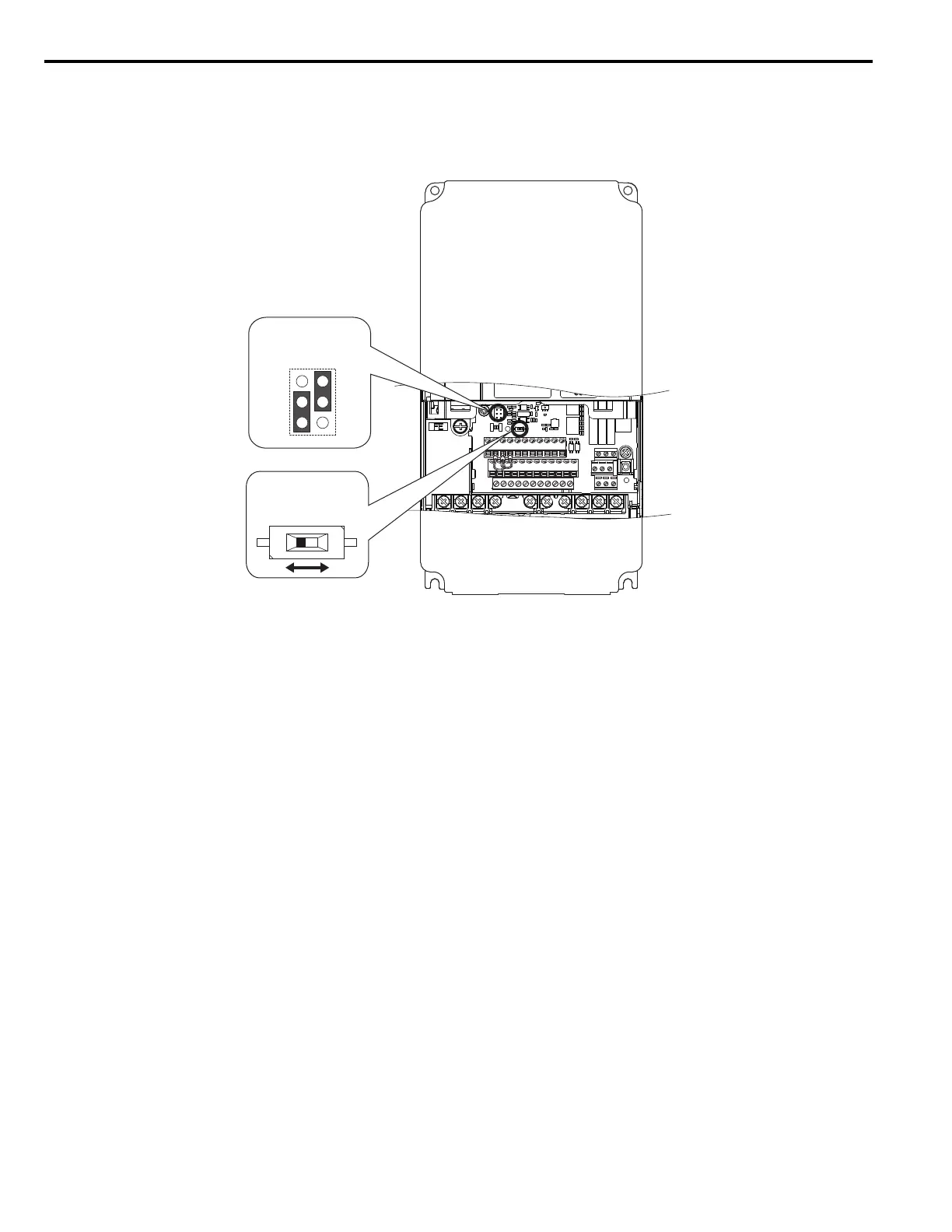

Figure 29 Locations of Jumpers and Switches on the Terminal Board
Off On
Jumper S3
Terminal H1/H2
Sink/Source Sel.
DIP Switch S2
RS-422/485 Termination
Resistor
