4 Start-Up Programming
70 YASK AWA TOEPYAIL1E01A YASKAWA AC Drive L1000E Quick Start Guide
Note: 1. The motor rotates during execution of Auto-Tuning of PG-E3 encoder characteristics. Before starting, refer to the drive technical
manual.
2. Auto-Tuning of PG-E3 encoder characteristics adjusts the unique characteristics of the ERN1387 encoder connected to the drive by
using a PG-E3 option card. This type of tuning should be performed when setting up the drive or after replacing the encoder or drive.
The signal lines between the PG-E3 option card and the ERN1387 encoder must be connected between the R+ and R- terminals while
this type of tuning is performed.
3. The setting values of parameters F1-66 to F1-81 are reset to factory default values when A1-03 is set to 2220. The setting values of
parameters F1-66 to F1-81 are modified at completion of Auto-Tuning of PG-E3 encoder characteristics.

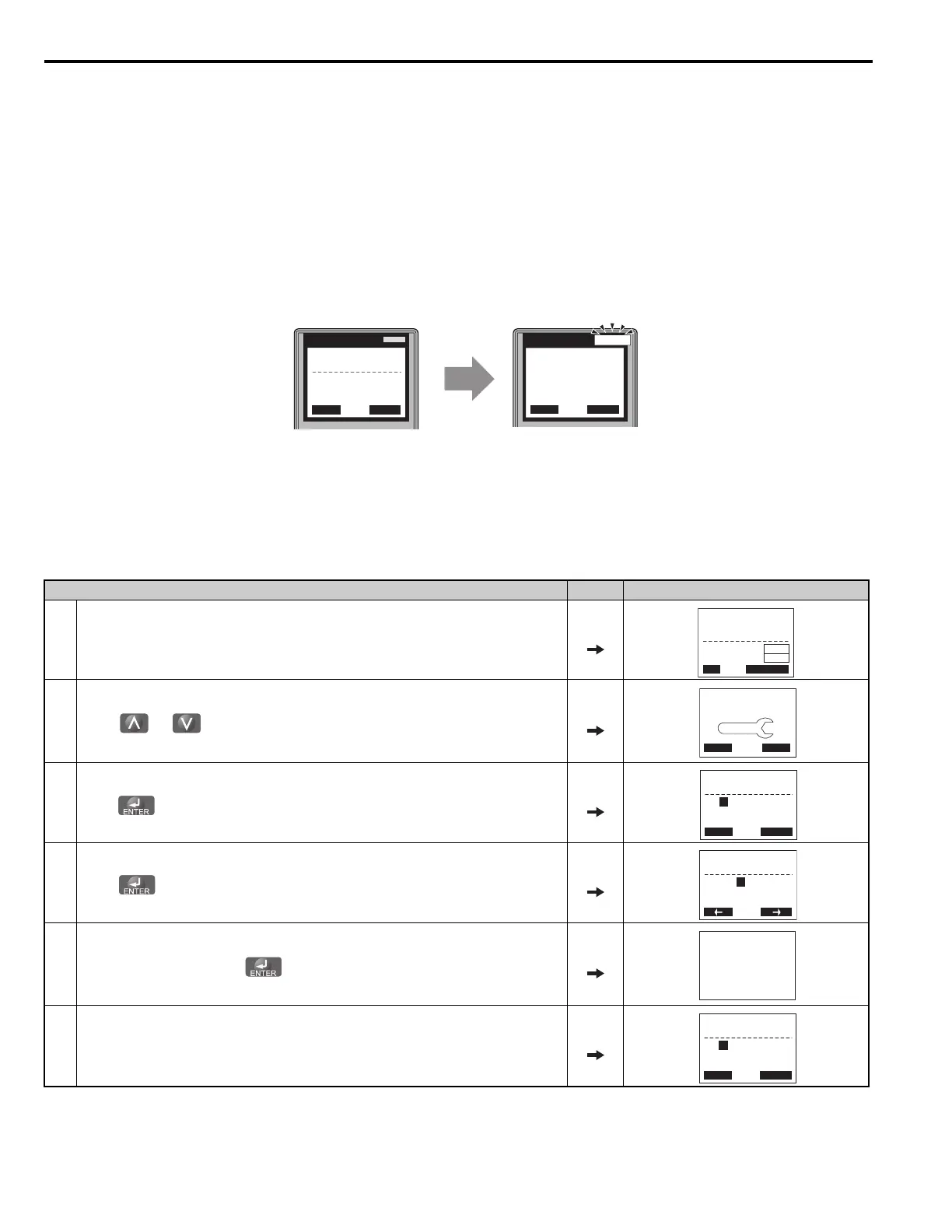

■ Auto-Tuning Interruption and Fault Codes
If tuning results are abnormal or the STOP key is pressed before completion, Auto-Tuning will be interrupted and a fault
code will appear on the digital operator.
Figure 41
Figure 45 Auto-Tuning Aborted Display
■ Auto-Tuning Operation Example
The following example demonstrates Rotational Auto-Tuning when using OLV (A1-02 = 2).
Selecting the Type of Auto-Tuning
Enter Data from the Motor Nameplate
After selecting the type of Auto-Tuning, enter the data required from the motor nameplate.
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
2.
Press or until the Auto-Tuning display appears.
3.
Press to begin setting parameters.
4.
Press to select the value for T1-01.
5.
Save the setting by pressing .
6. The display automatically returns to the display shown in Step 3.
DIGITAL OPERATOR JVOP-180
DIGITAL OPERATOR JVOP-180
REV DRV FOUT
DRV
ALM
ALM
Auto-Tuning AbortedDuring Auto-Tuning
- A.TUNE -
X.XX Hz/ X.XXA
DRV
Tune Proceeding
Rdy
FWD

- MODE -
Er-03
STOP key
DRV
FWD
RESET
YEA_
com-
- MODE -
U1-01= 0.00%
U1-02= 0.00%
U1-03= 0.00A
DRV
Speed Ref (OPR)
Rdy
FWD
FWD/REV
RSEQ
LREF
HELP
- MODE - PRG
Auto-Tuning
DATA
AUTO
FWD
- A.TUNE -
T1-01= 0
∗0∗
Standard Tuning
PRG
Tuning Mode
ESC FWD DATA
- A.TUNE -
T1-01= 0
∗0∗
Standard Tuning
PRG
Tuning Mode
FWD
“0”
Entry Accepted
- A.TUNE -
T1-01= 0
∗0∗
Standard Tuning
PRG
Tuning Mode
ESC FWD DATA
