4 Start-Up Programming
YASK AWA TOEPYAIL1E01A YASKAWA AC Drive L1000E Quick Start Guide 71
Start-Up Programming
4

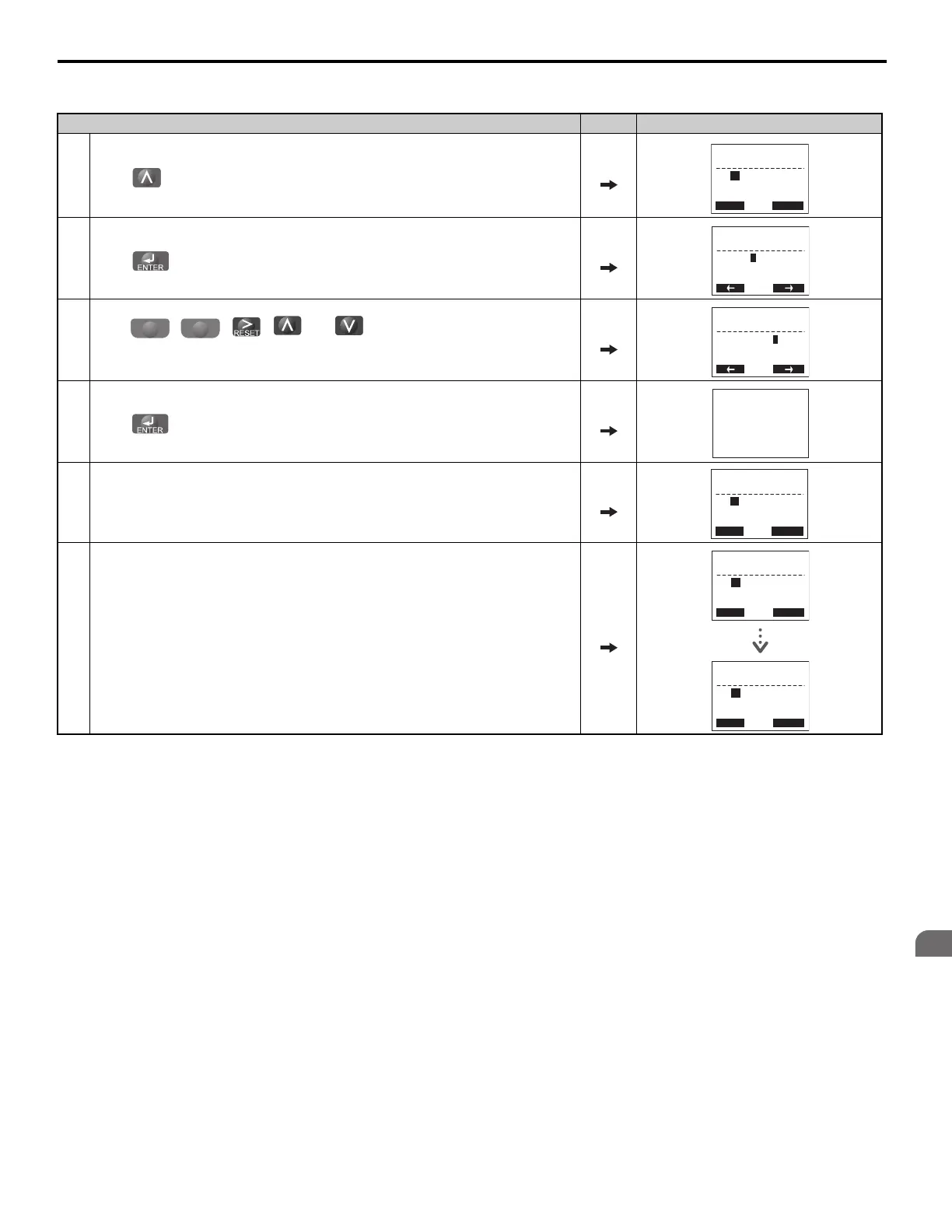

Note: These instructions continue from Step 6 in “Selecting the Type of Auto-Tuning”.
Step Display/Result
1.
Press to access the motor output power parameter T1-02.
2.
Press to view the default setting.
3.
Press , , , and to enter the motor power nameplate
data in kW.
4.
Press to save the setting.
5. The display automatically returns to the display in Step 1.
6.
Repeat Steps 1 through 5 to set the following parameters:
• T1-03, Motor Rated Voltage
• T1-04, Motor Rated Current
• T1-05, Motor Base Frequency
• T1-06, Number of Motor Poles
• T1-07, Motor Base Speed
- A.TUNE -
T1-02= 3.70kW
(0.00 ~ 650.00)
PRG
Mtr Rated Power
ESC FWD DATA
“3.70kW”
- A.TUNE -
T1-02= 003.70kW
(0.00 ~ 650.00)
PRG
Mtr Rated Power
FWD
“3.70kW”
F1
left
F2
right
- A.TUNE -
T1-02= 004.00kW
(0.00 ~ 650.00)
PRG
Mtr Rated Power
FWD
“3.70kW”
Entry Accepted
- A.TUNE -
T1-02= 4.00kW
(0.00 ~ 650.00)
PRG
Mtr Rated Power
ESC FWD DATA
“3.70kW”
- A.TUNE -
T1-02= 4.00kW
(0.00 ~ 650.00)
PRG
Mtr Rated Power
ESC FWD DATA
“3.70kW”
- A.TUNE -
T1-07= 1450RPM
(0 ~ 24000)
PRG
Rated Speed
ESC FWD DATA
“1450RPM”
