10 Disassembly and Reassembly of Balancer Unit
10.3 Unit Assembly
10-9
HW1485471
HW1485471

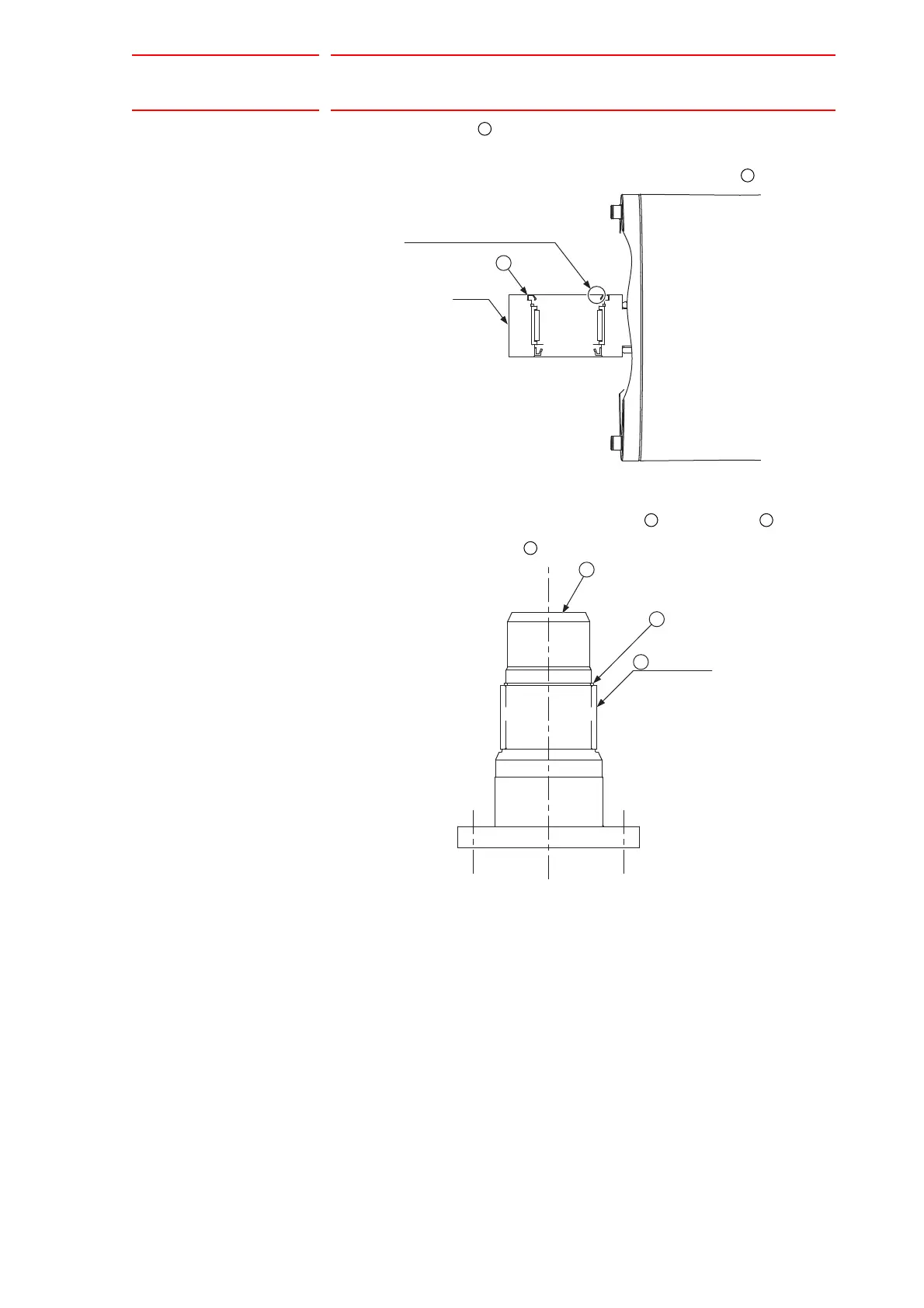

5. Insert the oil seal into the clevis of the balancer unit to the correct
direction.
6. Apply Alvania EP Grease 2 on the lip part of the oil seal .
10.3.2 Shaft Assembly (Knuckle Part)
1. Insert the inner ring of the needle bearing into the shaft .
2. Mount the retaining ring .
5
5
Apply Alvania EP Grease 2
Clevis
5
3
6
7
(Inner ring)
3
6
7
111/134
