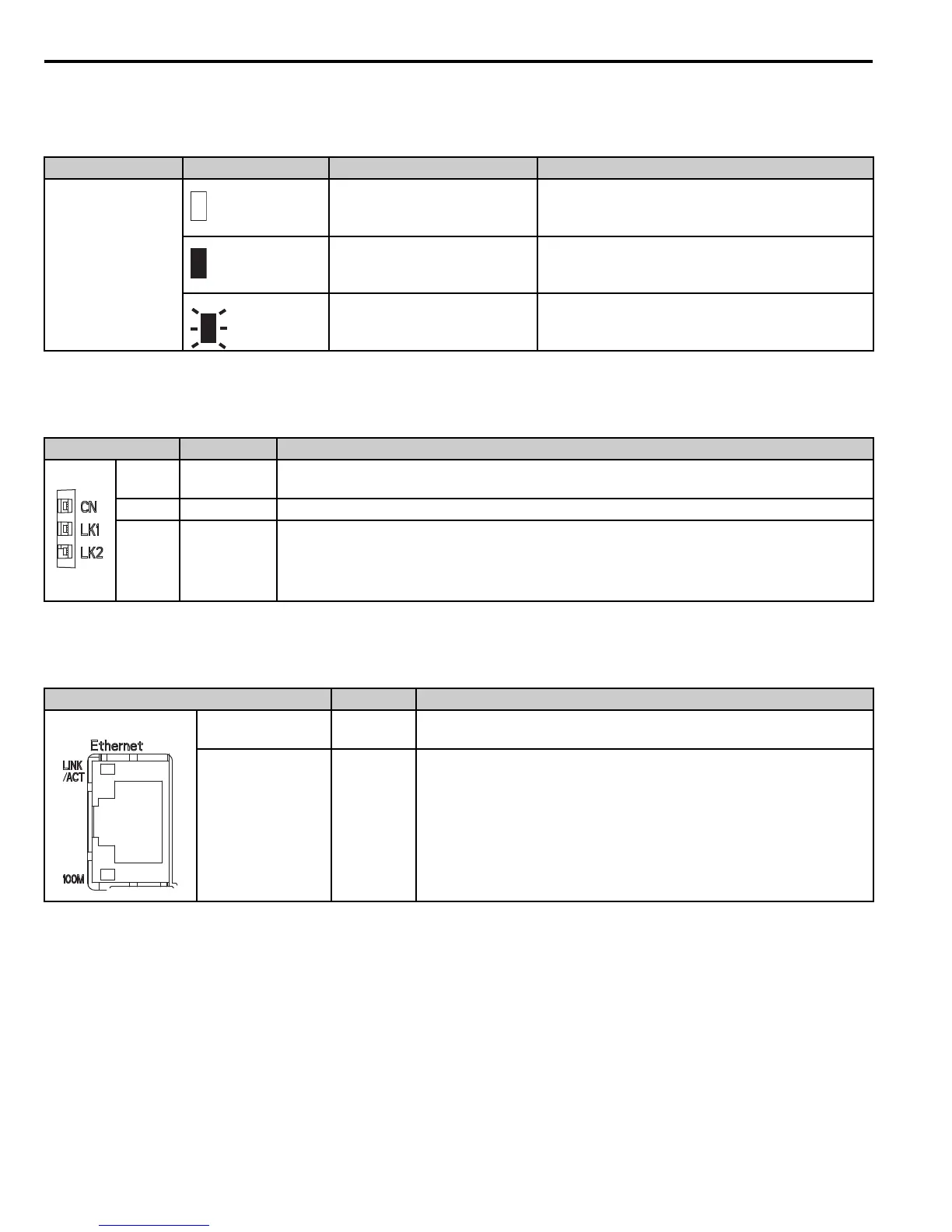

9 Display and Indicators
18 YASKAWA America, Inc. MP3300iec Hardware Manual YAI-SIA-IEC-7
 USB Status Indicator
This indicator shows the status of the USB memory.
 MECHATROLINK-III Status Indicators
These indicators show the status of the MECHATROLINK-III communications.
 Ethernet Status Indicators
These indicators show the status of Ethernet communications.
Indicator Name Indicator Status Status Description
USB
ACTIVE
Not lit No USB memory device
No USB memory device has been inserted yet, or the
USB memory device is ready to be removed.
Lit USB memory device inserted A USB memory device is inserted.
Flashing Accessing USB memory The USB memory is being accessed.
Indicator Name Color Status When Lit
CN Green
MECHATROLINK-III communications is established with the CPU Module as a slave (i.e.,
the Connect command is ON).
LK1 Green MECHATROLINK-III communications are active on PORT1.
LK2 Green MECHATROLINK-III communications are active on PORT2.
Indicator Name Color Status When Not Lit, Lit, or Flashing
LINK/ACT Yellow
Lit: Ethernet link established.
Flashing: Ethernet communications activity.
100M Green
Not lit: 10 M connection
Lit: 100 M connection. We do not support GB connections.
