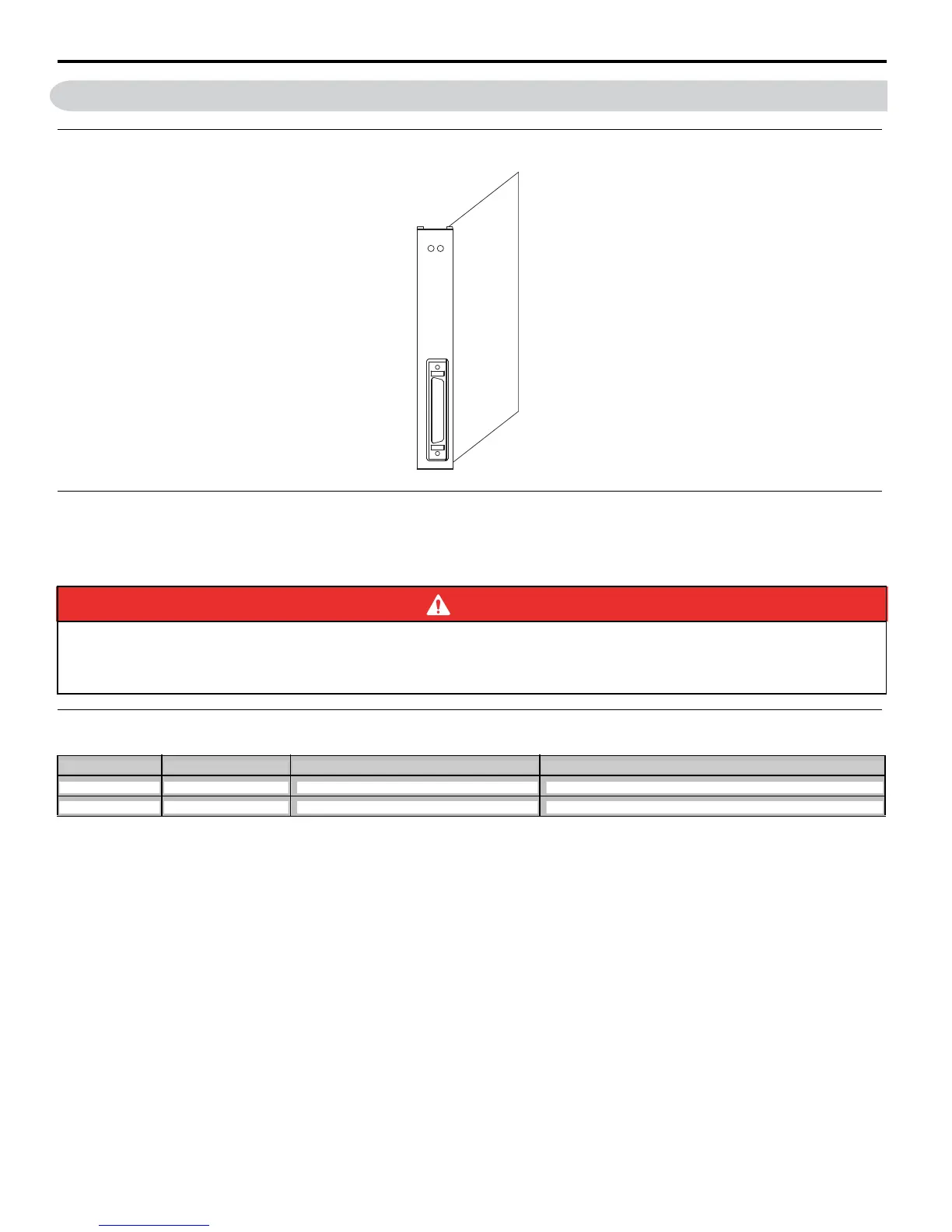

22 Option Module - LIO-06 Module
YASKAWA America, Inc. MP3300iec Hardware Manual YAI-SIA-IEC-7 63
22 Option Module - LIO-06 Module
Module External Appearance
Outline of Functions
The LIO-06 Module has digital I/O, analog I/O, and pulse encoder functionality, including a registration latch input. The
LIO-06 Module is fully compatible with the MP940 I/O connector.
LED Indicators and Switch Settings
The ALM light indicates the following conditions
• Fuse fault
• ASIC error
• A-phase disconnect
• B-phase disconnect
When converting equipment from the prior generation MP940 controller, users should bear in mind that the analog
inputs that had previously been wired to the V-REF and T-REF inputs on the SGDH must now be connected directly to
the LIO-06 option module.
Display Name Color Status when Lit Staus when OFF
RUN Green Normal Stopped. (No access by CPU)
ALM Red Fault Normal operation
