30 YASKAWA America, Inc. MP3300iec Hardware Manual YAI-SIA-IEC-7

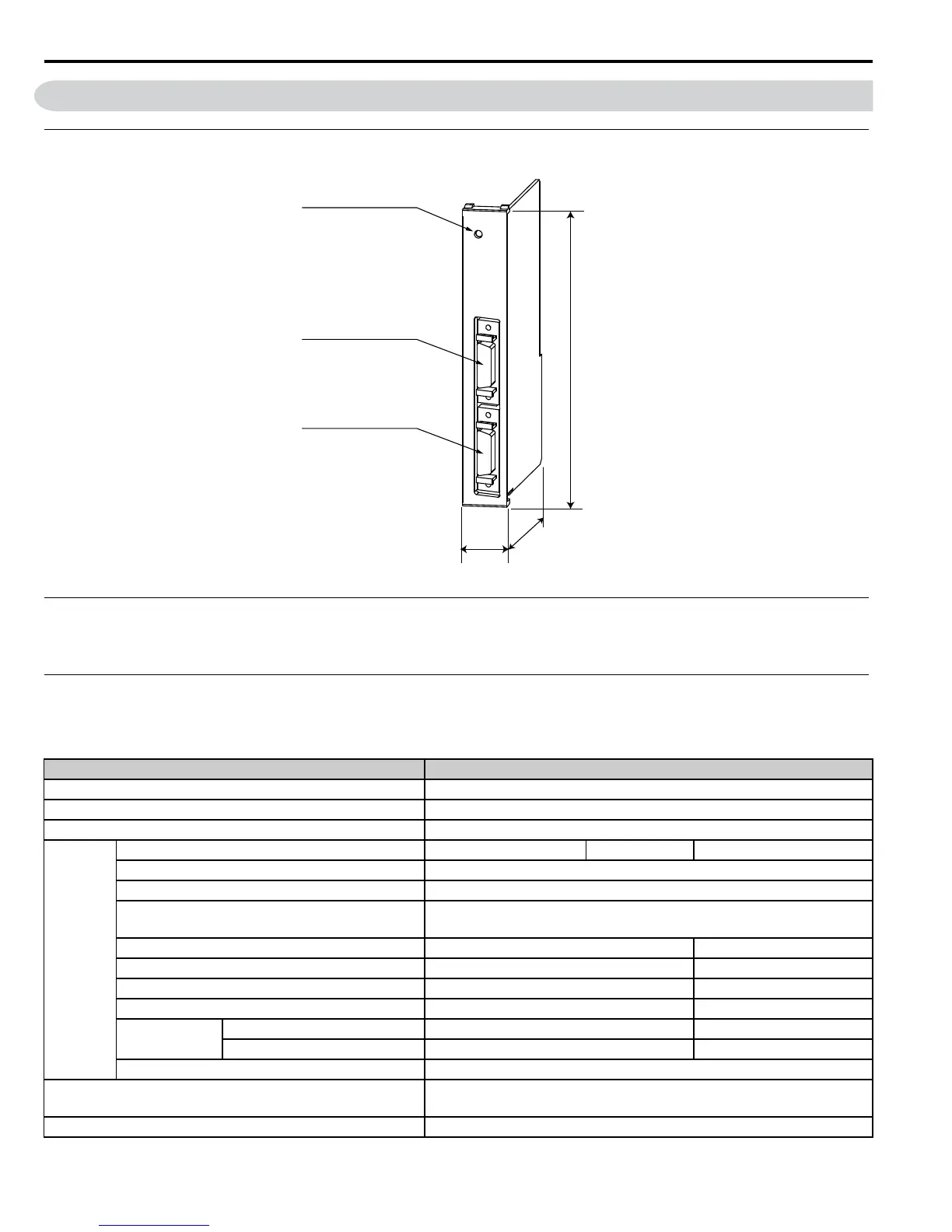

17 Option Module - AI-01 (Analog Input) Module
17 Option Module - AI-01 (Analog Input) Module
 Appearance
 Module Functions
The AI-01 module is an analog input module with voltage and/or current input modes.
 Module Specifications
The following table shows the AI-01 Module hardware specifications.
Item Specifications
Classification I/O Module
Name AI-01
Model JAPMC-AN2300
Analog Input
Analog Input Range -10 to +10V 0 to +10V 0 to 20 mA
Number of Channels 8 ((4/ connector)×2)
Number of Channels to be Used Any number from 1 to 8
Isolation
Between channels: Not isolated.
Between input connector and system power supply: Photocoupler isolation
Max. Rated Input ±15V ±30 mA
Input Impedance 20 k 250 k
Resolution 16-bit (-31276 to +31276) 15-bit (0 to +31276)
Absolute Accuracy 100 mV Max 0.3 mA Max
Accuracy
25°C ±0.1% (±10 mV) ±0.1% (±0.02 mA)
0 to 55°C ±0.3% (±30 mV) ±0.3% (±0.06 mA)
Input Conversion Time 1.4 msec Max
Connectors
CN1: Input connector
CN2: Input connector
LED Indicator RUN (green)
AI-01
LED indicator
Analog input
connector CN1
RUN
CN1
CN2
Analog input
connector CN2
125 mm
95 mm
19.3 mm
