26 Terminal Block Kit CBK-U-MP2C-xx
YASKAWA America, Inc. MP3300iec Hardware Manual YAI-SIA-IEC-7 77

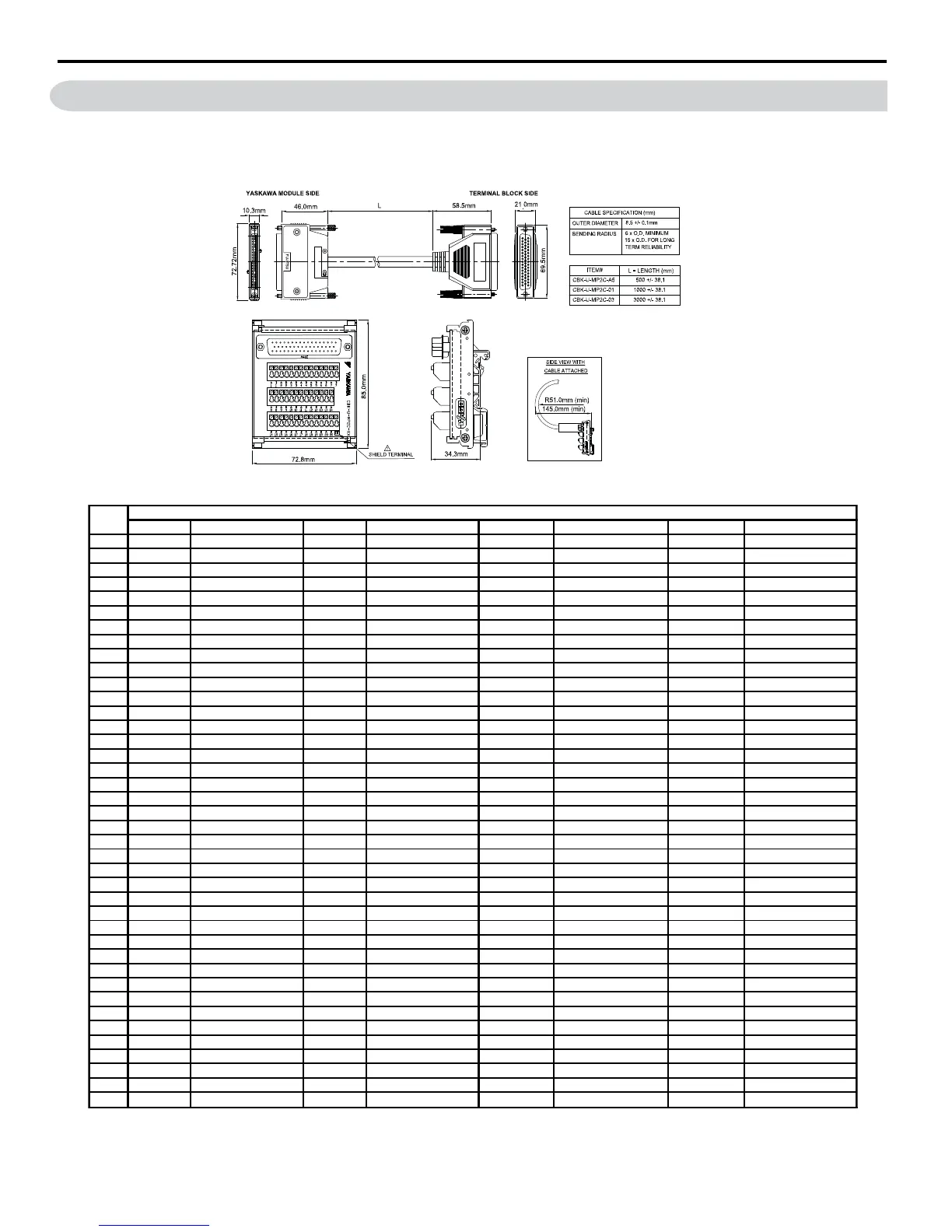

26 Terminal Block Kit CBK-U-MP2C-xx
Terminal Block Kit for IO3300iec
(64-Point I/O Module)
IN1 signal IN1 function IN2 signal IN2 function OUT1 signal OUT1 function OUT2 signal OUT2 function
A1 - - - - 024V_6 Common ground 6 024V_8 Common ground 8
B1 - - - - 024V_6 Common ground 6 024V_8 Common ground 8
A2 +24V_2 24V power supply 2 +24V_4 24V power supply 4 +24V_6 24V power supply 6 +24V_8 24V power supply 8
B2 +24V_2 24V power supply 2 +24V_4 24V power supply 4 +24V_6 24V power supply 6 +24V_8 24V power supply 8
A3 IN32 Input 32 IN64 Input 64 OUT32 Output 32 OUT64 Output 64
B3 IN31 Input 31 IN63 Input 63 OUT31 Output 31 OUT63 Output 63
A4 IN30 Input 30 IN62 Input 62 OUT30 Output 30 OUT62 Output 62
B4 IN29 Input 29 IN61 Input 61 OUT29 Output 29 OUT61 Output 61
A5 IN28 Input 28 IN60 Input 60 OUT28 Output 28 OUT60 Output 60
B5 IN27 Input 27 IN59 Input 59 OUT27 Output 27 OUT59 Output 59
A6 IN26 Input 26 IN58 Input 58 OUT26 Output 26 OUT58 Output 58
B6 IN25 Input 25 IN57 Input 57 OUT25 Output 25 OUT57 Output 57
A7 IN24 Input 24 IN56 Input 56 OUT24 Output 24 OUT56 Output 56
B7 IN23 Input 23 IN55 Input 55 OUT23 Output 23 OUT55 Output 55
A8 IN22 Input 22 IN54 Input 54 OUT22 Output 22 OUT54 Output 54
B8 IN21 Input 21 IN53 Input 53 OUT21 Output 21 OUT53 Output 53
A9 IN20 Input 20 IN52 Input 52 OUT20 Output 20 OUT52 Output 52
B9 IN19 Input 19 IN51 Input 51 OUT19 Output 19 OUT51 Output 51
A10 IN18 Input 18 IN50 Input 50 OUT18 Output 18 OUT50 Output 50
B10 IN17 Input 17 IN49 Input 49 OUT17 Output 17 OUT49 Output 49
A11 IN16 Input 16 IN48 Input 48 OUT16 Output 16 OUT48 Output 48
B11 IN15 Input 15 IN47 Input 47 OUT15 Output 15 OUT47 Output 47
A12 IN14 Input 14 IN46 Input 46 OUT14 Output 14 OUT46 Output 46
B12 IN13 Input 13 IN45 Input 45 OUT13 Output 13 OUT45 Output 45
A13 IN12 Input 12 IN44 Input 44 OUT12 Output 12 OUT44 Output 44
B13 IN11 Input 11 IN43 Input 43 OUT11 Output 11 OUT43 Output 43
A14 IN10 Input 10 IN42 Input 42 OUT10 Output 10 OUT42 Output 42
B14 IN09 Input 9 IN41 Input 41 OUT09 Output 9 OUT41 Output 41
A15 IN08 Input 8 IN40 Input 40 OUT08 Output 8 OUT40 Output 40
B15 IN07 Input 7 IN39 Input 39 OUT07 Output 7 OUT39 Output 39
A16 IN06 Input 6 IN38 Input 38 OUT06 Output 6 OUT38 Output 38
B16 IN05 Input 5 IN37 Input 37 OUT05 Output 5 OUT37 Output 37
A17 IN04 Input 4 IN36 Input 36 OUT04 Output 4 OUT36 Output 36
B17 IN03 Input 3 IN35 Input 35 OUT03 Output 3 OUT35 Output 35
A18 IN02 Input 2 IN34 Input 34 OUT02 Output 2 OUT34 Output 34
B18 IN01 Input 1 IN33 Input 33 OUT01 Output 1 OUT33 Output 33
A19 - - - - 024V_5 Common ground 5 024V_7 Common ground 7
B19 - - - - 024V_5 Common ground 5 024V_7 Common ground 7
A20 +24V_1 24V power supply 1 +24V_3 24V power supply 3 +24V_5 24V power supply 5 +24V_7 24V power supply 7
B20 +24V_1 24V power supply 1 +24V_3 24V power supply 3 +24V_5 24V power supply 5 +24V_7 24V power supply 7
JEPMC-IO2310 and JEPMC-IO2330
Pin
No.
Functionality Chart for CBK-U-MP2C-xx
