16 Ethernet Connector Details
28 YASKAWA America, Inc. MP3300iec Hardware Manual YAI-SIA-IEC-7

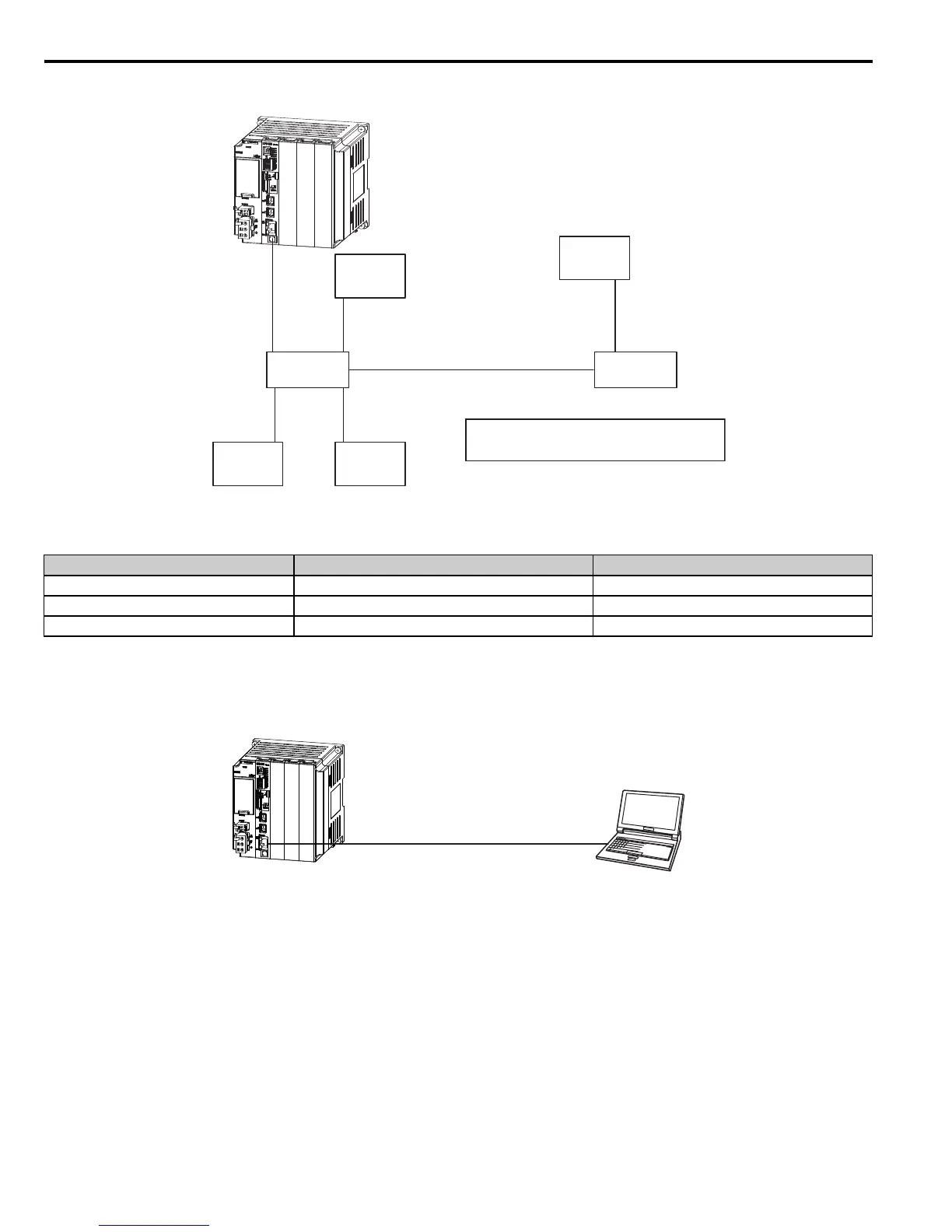

Connection Example 1 (When using a hub or switch)
Specification
Connection Example 2
The following are examples of Ethernet network connections via 100Base-Tx cable:
Item When Connecting to a Repeater HUB When Connecting to a Switching HUB
Cable Length between Node-HUB 100m or less 100 m or less
Cable Length between HUBs 100m or less 100 m or less
Number of HUBs between Nodes Up to four Unlimited
Hub
or Switch
MP3300iec
Hub
or Switch
10Base-T
(Straight cable)
Station
StationStation
Up to 100mUp to 100m
Up to 100m
Up to 100m
Up to 100m
Station
Up to 100m
When connecting to a HUB without using the
auto-negotiation function, set the HUB side to
half-duplex mode.
10 Base-T (crossover cable, up to 100m)
MP3300iec
