4 Base Units
YASKAWA America, Inc. MP3300iec Hardware Manual YAI-SIA-IEC-7 9

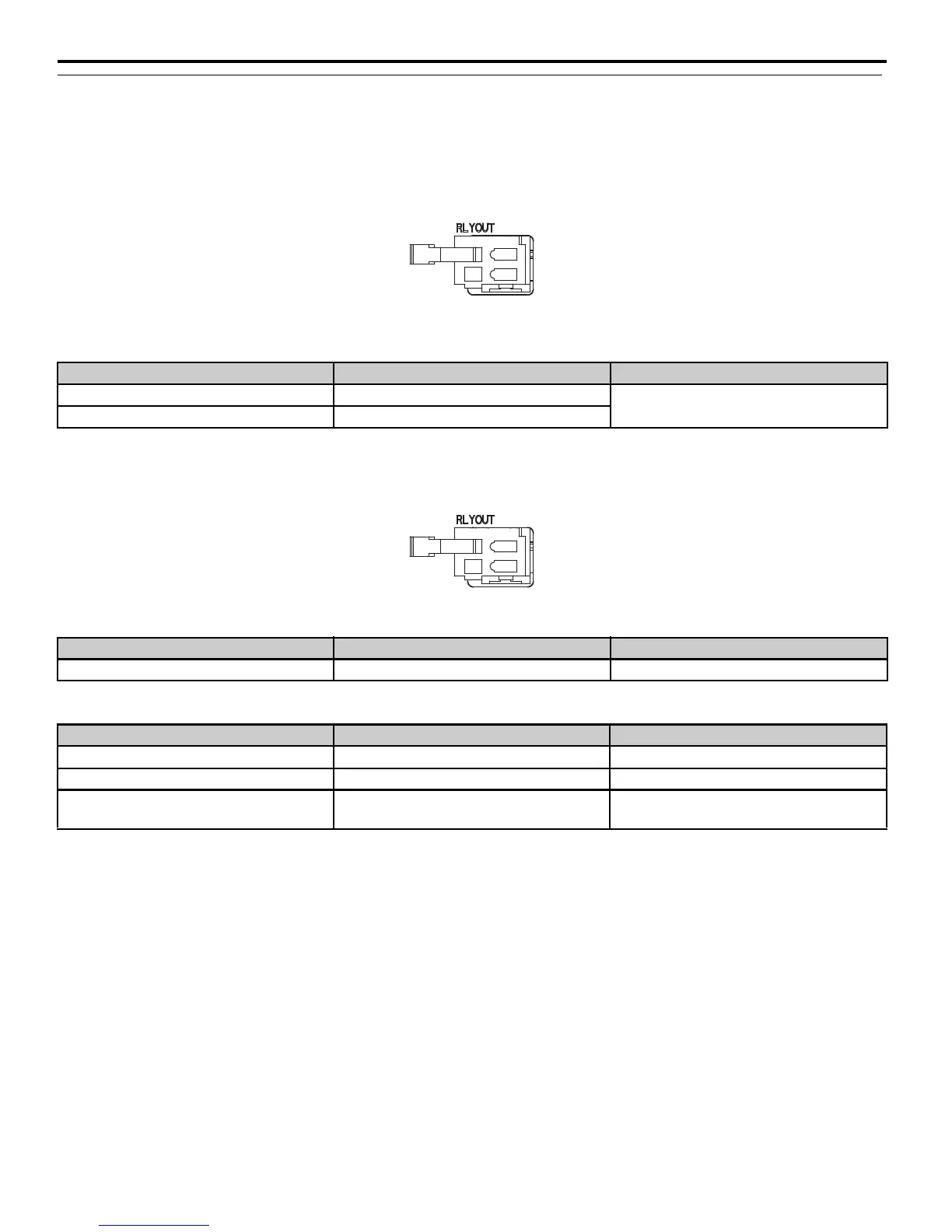

 Connector
The Base Unit has two connectors: an RLYOUT connector and a power connector.
 RLYOUT Connector
The RLYOUT connector outputs the status of the CPU Module.
Figure 2
Figure 2 RLYOUT Connector Model: 734-302
Pin Assignments
 Power Connector
Connect the power supply to this connector.
Figure 3
Figure 3 RLYOUT Connector Model: 734-302
Pin Assignments
No. Signal Label Description
1 OUT
Normal operation: Circuit closed.
Error: Circuit open.
2 OUT
Type Model Color
DC power supply 4-2013522-3 White
No. Signal Label Description
3 24 VDC Power input wire for 24 VDC
2 0 VDC Power input wire for 0 VDC
1FG
Connects to the frame ground. (Ground to
100 W max.)
