Outline
1.1.1
System Configuration
1-2
1
1.1 Outline of Configuration and Functions
The DeviceNet is a multivendor field network. DeviceNet specifications are controlled by the
ODVAOpen DeviceNet Vendor Association, Inc.).
The 260IF Module connects to a multivendor DeviceNet system and works as either a
DeviceNet Master or Slave.
Refer to the DeviceNet specifications published by the ODVA for information on the
DeviceNet.
1.1.1 System Configuration
The 260IF Module is a communications interface used to connect MP900 Machine Control-
lers to a DeviceNet network. Using the 260IF Module enables communications between
MP900 Machine Controllers, other controllers, sensors, actuators, and other devices manu-
factured by other companies.
The 260IF Module can be connected to the DeviceNet as a Master or Slave.

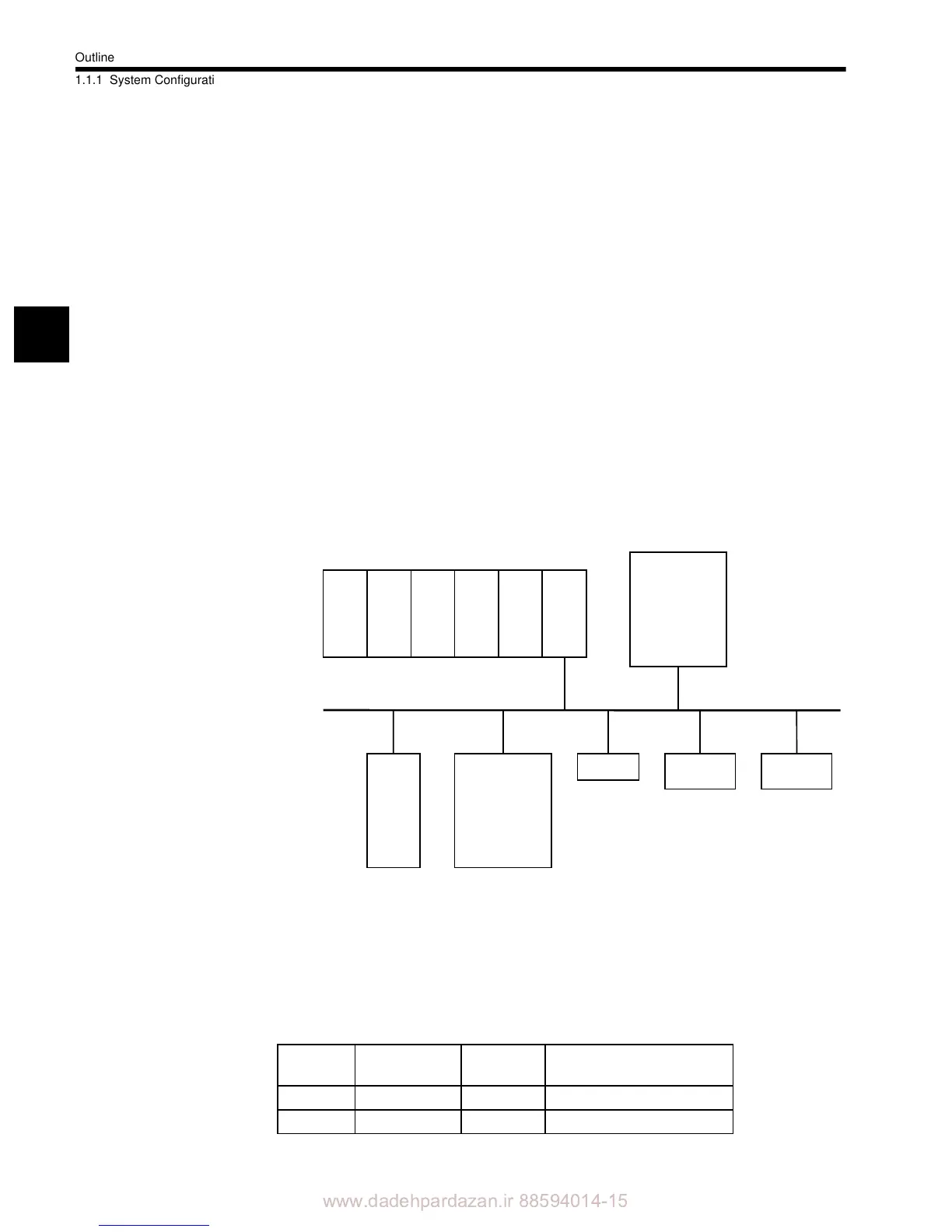

Fig 1.1 System Configuration
Master/Slave
There are restrictions on the Machine Controller models that can be used as a Master or
Slave.
Device Net
PS-03 CPU-
01
SVA-01 DI-01 DO-01 260IF
MP940D
MP920 Machine Controller
Other company
PLC
Other company
PLC
Sensor
I/O device
Other
devices
Model Master Slave
260IF Module Mounting
Method
MP920 OK OK Option slot
MP940 Not possible OK Built-in
