www.dadehpardazan.ir 88594014-15
Sample Programs
B.1
Sample Program No. 1
B-2
B
B.1 Sample Program No. 1
260IF Module I/O Communications Example
This section describes the settings for actual I/O communications between 260IF Modules.
Configuration

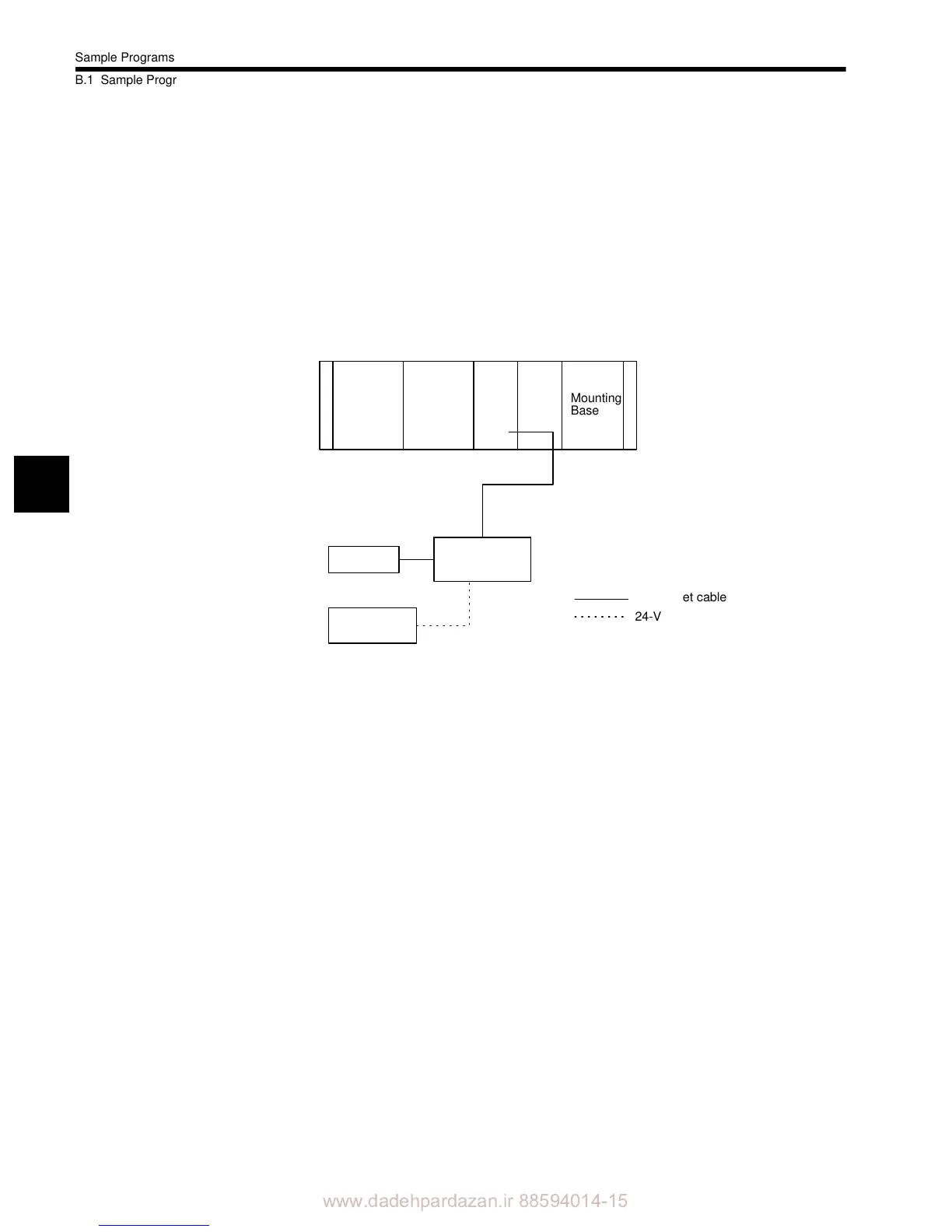

The following diagram shows the system configuration for DeviceNet communications.
One 260IF Module is set as the 260IF Module CIR1 Master, one is set as a 260IF Module
CIR2 Slave and I/O communications are performed. Message communications are also per-
formed between the two 260IF Modules.
PS MP920 260IF
CIR1
260IF
CIR2
Terminating
resistance
Tap
24-VDC communications
power supply
24-VDC power supply cable
DeviceNet cable
Mounting
Base
24-VDC power supply
cable
