4.1
Basic Use of the 260IF Module
4-3
4
4.1.2 Slave Mode
If the 260IF Module is set to Slave Mode, the 260IF Module will automatically exchange I/
O data with the Master without being controlled by the program in the CPU Module.
The Master can be a 260IF Module mounted on another MP920 or any other DeviceNet-
conforming device.

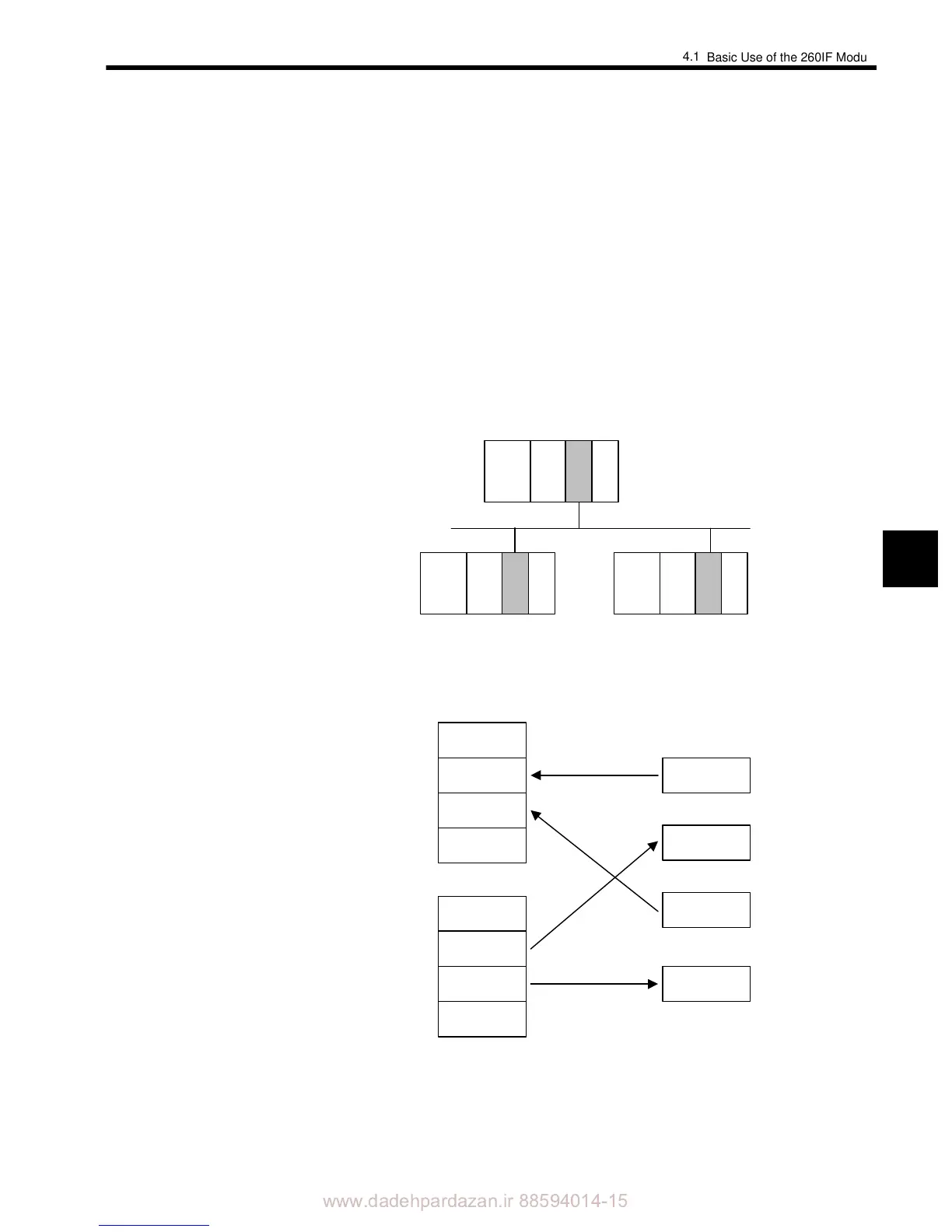

The following diagrams show how the Slave Mode works, using the data exchange between
nodes as an example.
System Configuration
I/O Data
Node 0, master
Node 1, slave Node 2, slave
Power
supply
MP920
260
IF
Power
supply
MP920
260
IF
Power
supply
MP920
260
IF
Node 0, input data
Node 1, output data
Node 0, output data
Node 1, input data
Node 2, output data
Master Slave
Node 2, input data
