2.2 External Appearance
2.2.1 260IF Module
The external appearance of the 260IF Module is shown below.

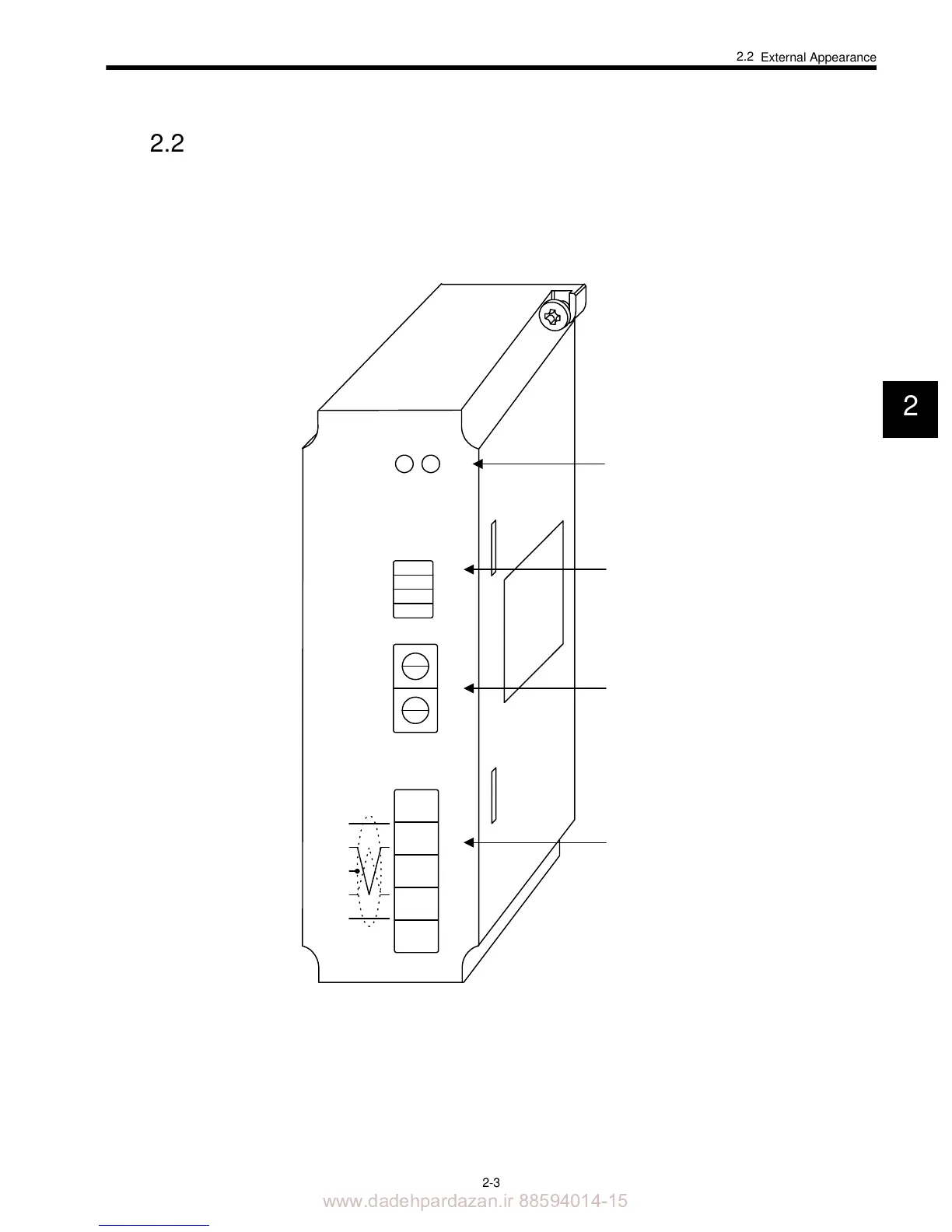

Fig 2.1 External Appearance of 260IF Module
MS NS
DR0
DR1
X1
X2
SW1
SW2
SW3
×
10
CN1
260IF
×
1
OFF ON
MS: Module status
(red/green light)
NS: Network status
(red/green light)
DIP Switch
DR0: Baud rate pin 0
DR1: Baud rate pin 1
X1: Master/slave setting
X2: Self-diagnosis
DeviceNet connector
Node Address switches
SW2: 10’s digit
SW1: 1’s digit
