6.2 I/O Status
6.2.1 Outline
When the 260IF Module is set as a DeviceNet Master, the I/O status function reports in
online the status of communications with the DeviceNet Slaves set in the I/O allocations for
the I/O communications function.
6.2.2 Using the I/O Status Function

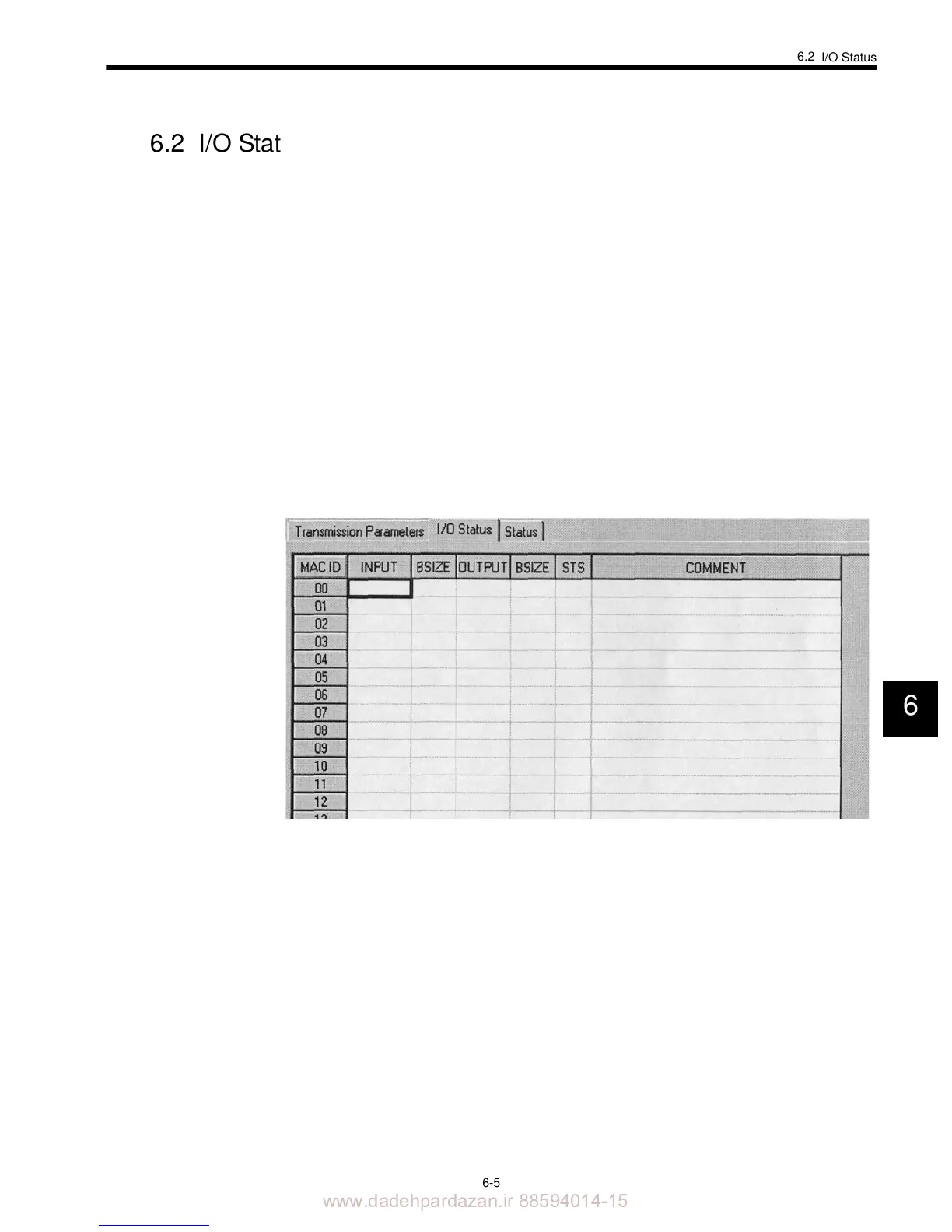

The I/O status is displayed using the following procedure.
1. Display the Module Configuration Window on the CP-717.
2. Double-click the slot to which the 260IF Module is set and open the 260IF Definition
Window.
3. Select the I/O Status Tab in the 260IF Definition Window.
