4.1
Basic Use of the 260IF Module
4-5
4
4.1.4 Device Setting Procedure
Make the following settings on the 260IF Module before turning ON the power supply to the
system.
• For the Master Mode
Settings for all Slaves
• For the Slave Mode
Settings for the Master and the other Slaves

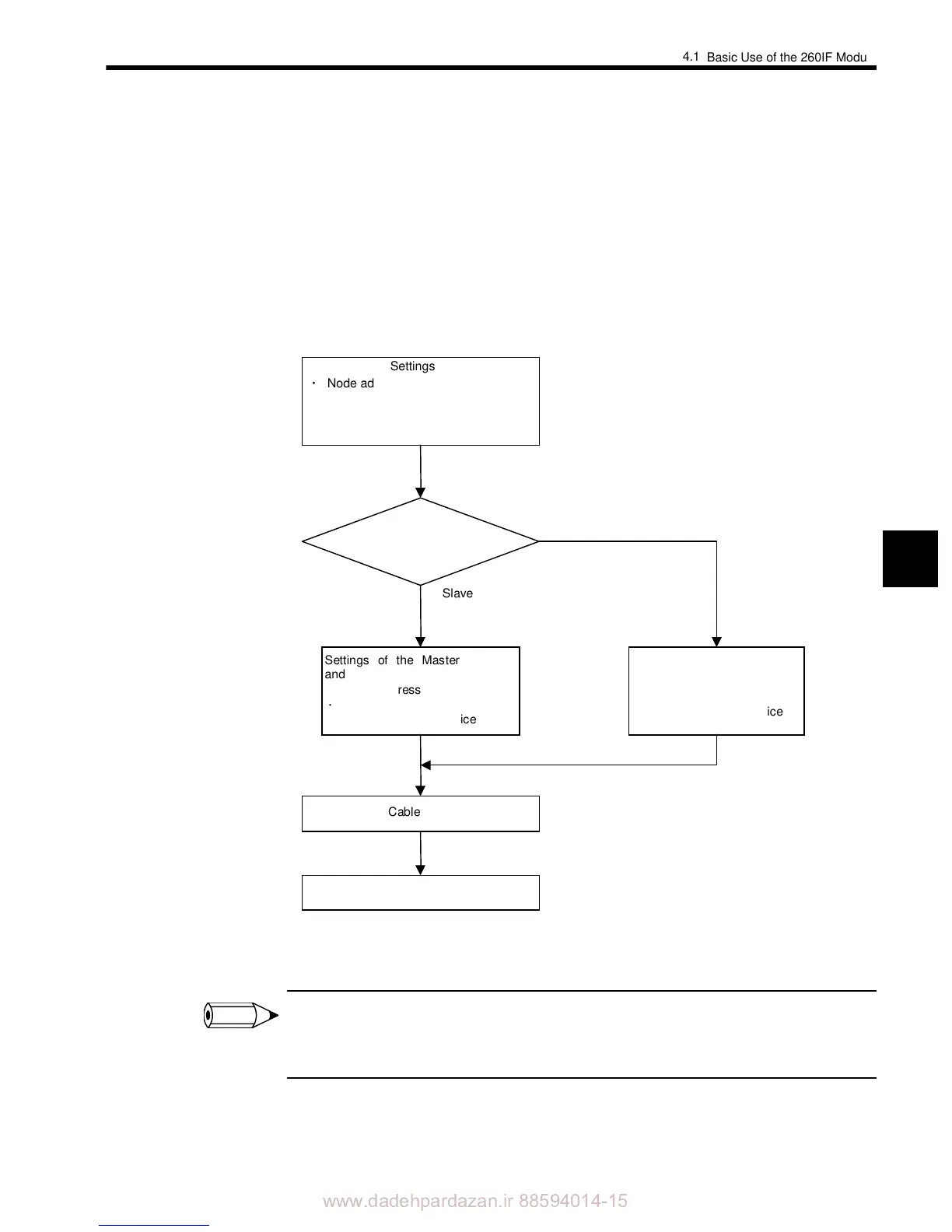

The following flowchart shows the setting procedure.
∗ 1.
Refer to Chapter 2 Basic Specifications.
∗ 2. Refer to the manual for each device.
It is recommended that the Slaves be started first, and the Master last. When the Slaves are started
first, they will be in waiting status, waiting for commands from or connection with the Master. When
the Master is started first, an error may occur because of no responses from Slaves.
260IF Module
Settings
Node address (rotary
ih)
Baud rate
(DIP switch pins 1and 2)
Settings of the Master Device
and Other Slaves
Node address
Baud rate
Settings for each device
Cable wiring
Refer to
4.1.5 I/O Allocations.
Slave Settings
Node address
Baud rate
Settings for each device
Slave Mode
Master Mode
*1
*2
260IF operating
mode
260IF Module Settings
Node address (rotary switch)
Baud rate (DIP switch pins 1 and 2)
260IFoperating mode
Baund rate
Baund rate
