YASKAWA P1000 Series User Manual

100
85
70
55
0
L8-35 = 2: IP20/NEMA Type 1 Enclosure
L8-35 = 3: External Heatsink lnstallation
L8-35 = 0: IP00/Open-Chassis Enclosure
30
-10
40
50
Drive Rating
(%)
L8-12
(Ambient temp: °C)
L8-35 = 1: Side-by-Side Mounting

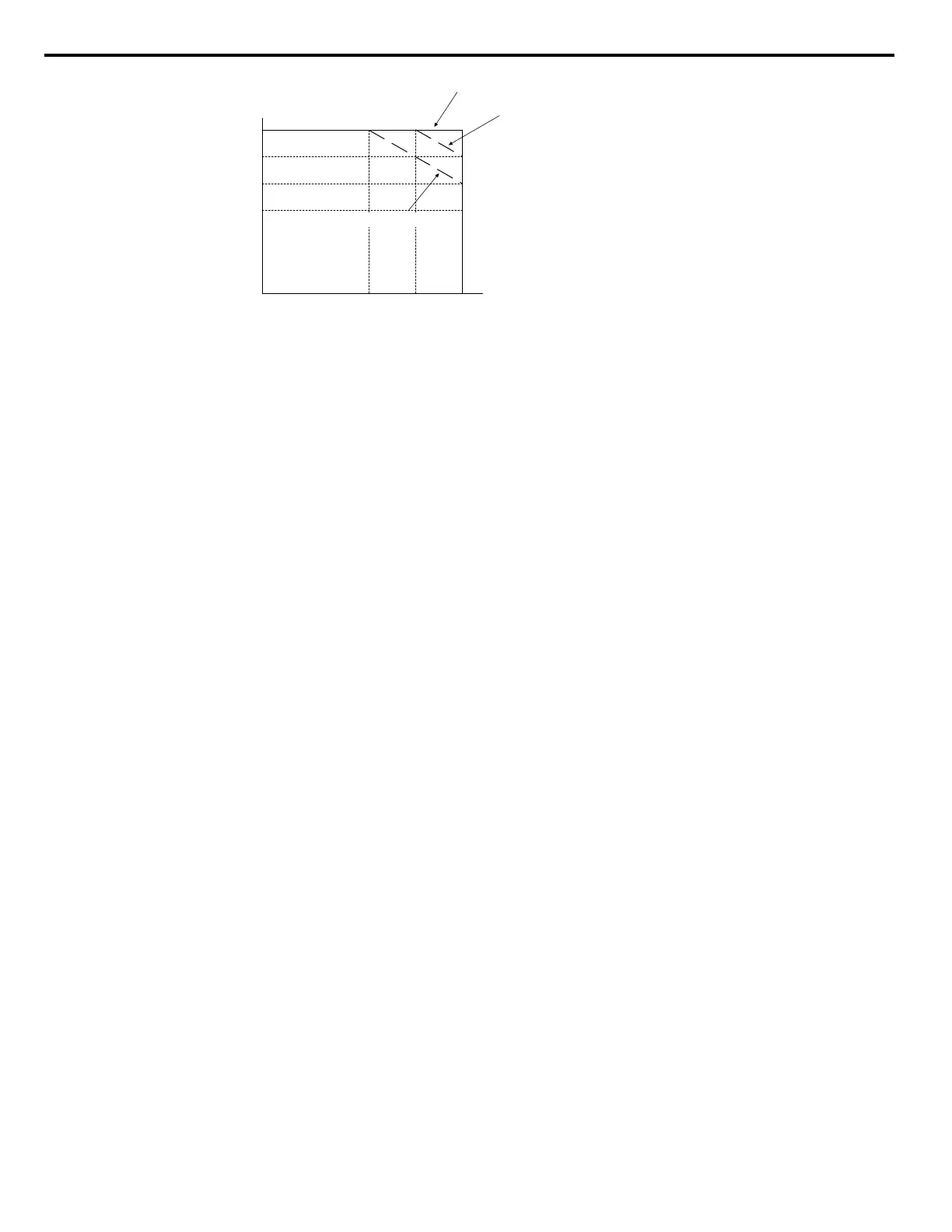

Figure 21 Ambient Temperature and Installation Method Derating
n
Altitude Derating
The drive standard ratings are valid for installation altitudes up to 1000 m. For installations from 1000 m to 3000 m, the drive
rated voltage and the rated output current must be derated for 0.2% per 100 m.
8 Specifications
44
YASKAWA TOEP YAIP1U 04A YASKAWA AC Drive – P1000 6-Phase/12-Pulse Input Installation Manual

YASKAWA P1000 Series Specifications

General

Series	P1000
Voltage Classes	200 V, 400 V, 600 V
Frequency	50/60 Hz
Humidity	95% RH or less (non-condensing)
Type	AC Drive
Control Method	V/f Control
Ambient Temperature	-10 to +50°C (14 to 122°F)
Communication Options	Modbus RTU
Protection Features	Overvoltage, Undervoltage
Overload Capacity	150% for 60 seconds
Storage Temperature	-20°C to +60°C (-4 to 140°F)
Cooling Method	Fan cooled
Horsepower Range	0.5 to 500 HP
