YASKAWA P1000 Series

CUTOUT
NOTES:
1. CUTOUT TOLERANCES:
+/- 0.02 in. [0.5 mm]
2. EXPOSED HEATSINK DEPTH
3. MINIMUM RECOMMENDED PANEL
THICKNESS: 12 GA
D=4.21 in. [107 mm] MINUS PANEL THICKNESS
Unit: in. [mm]
(12)-1/4 in. [M6]
THREADED HOLES

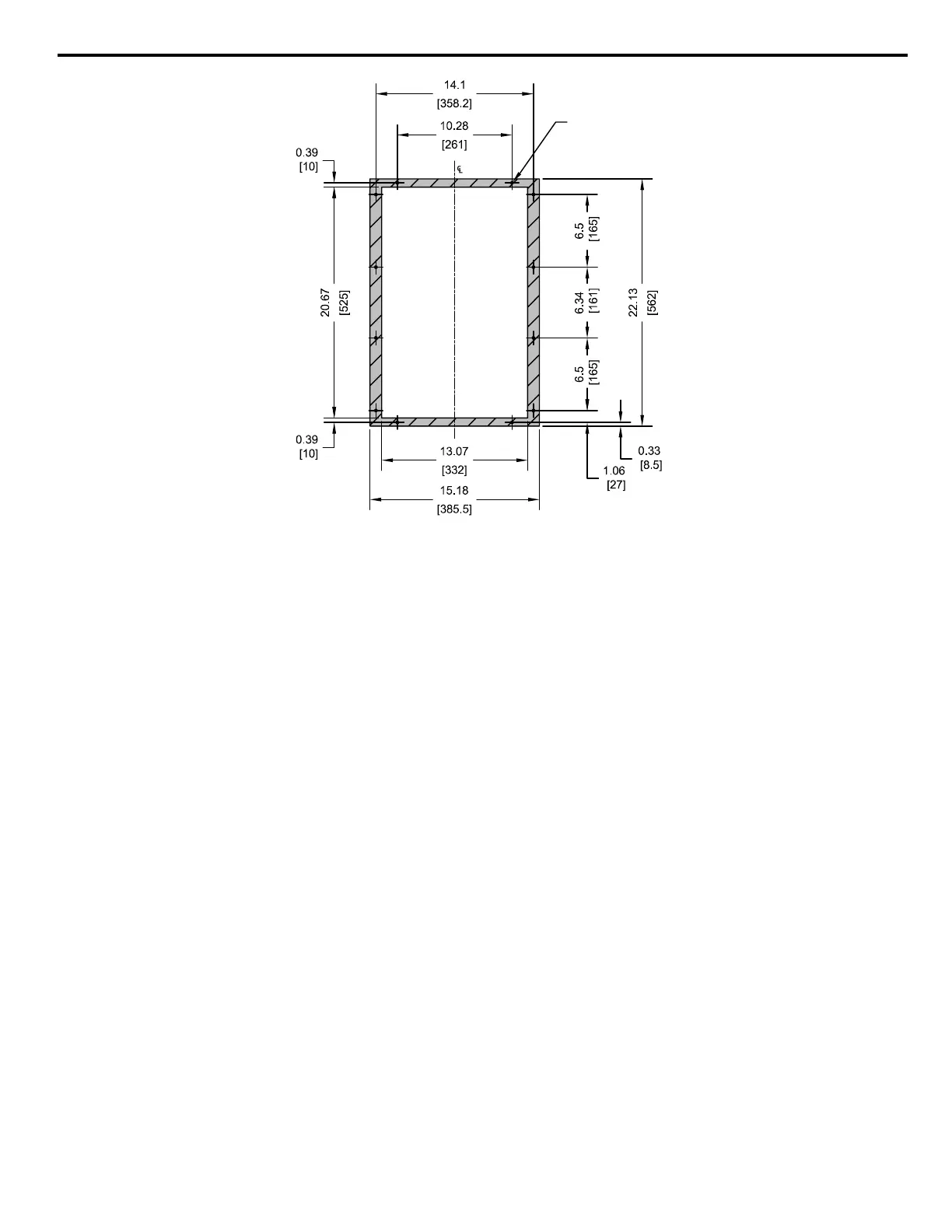

Figure 41 Flange Type Models 4T0139U and 4T0165U Panel Cutout Dimensions
