YASKAWA P1000 Series

Unit: in. [mm]
NOTES:
1. CUTOUT TOLERANCES:
+/- 0.02 in. [0.5 mm]
2. EXPOSED HEATSINK DEPTH
3. MINIMUM RECOMMENDED PANEL
THICKNESS: 10 GA
D=4.99 in. [127 mm] MINUS PANEL THICKNESS
CUTOUT
(13)-3/8 in. [M10]
THREADED HOLES

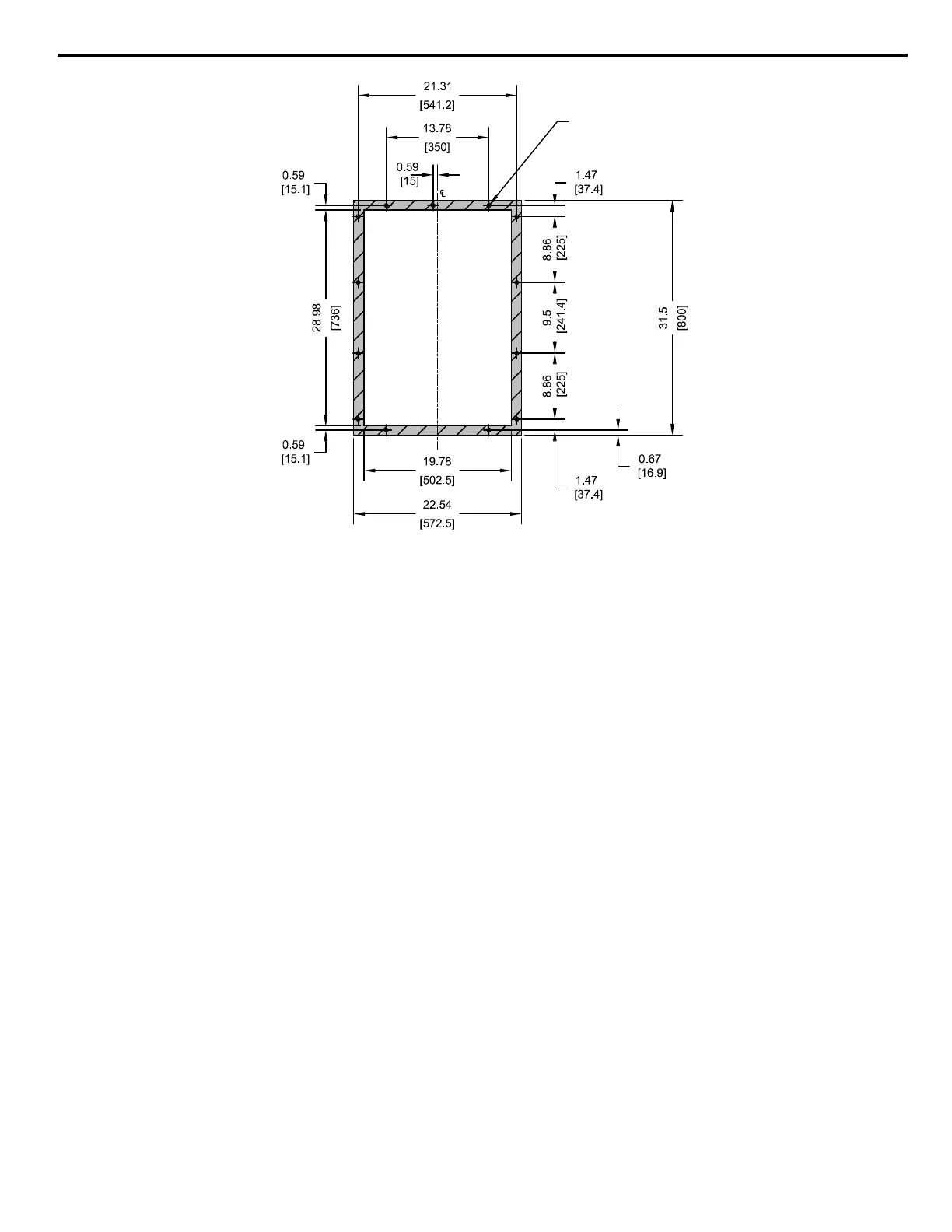

Figure 43 Flange Type Models 4T0250U to 4T0362U Panel Cutout Dimensions
8 Specifications
YASKAWA TOEP YAIP1U 04A YASKAWA AC Drive – P1000 6-Phase/12-Pulse Input Installation Manual
67
