YASKAWA P1000 Series User Manual

(6)-1/2"
[M12]
17.32±.02 [440±0.5]
26.38±.02 [670±0.5]
47.32±.02 [1202±0.5]
CUTOUT
0.75
[19]
0.75
[19]
0.59
[15]
NOTE:
EXPOSED HEATSINK DEPTH
D=5.91" MINUS PANEL THICKNESS
1.97
[50]
1.97
[50]
4.72
[120]
4.72
[120]
1.18
[30]
1.18
[30]
AIR
AIR
AIR
AIR
48.82±.02 [1240±0.5]
50±.02 [1270±0.5]
25.75±.02 [654±0.5]
0.59
[15]
℄
Unit: in. [mm]

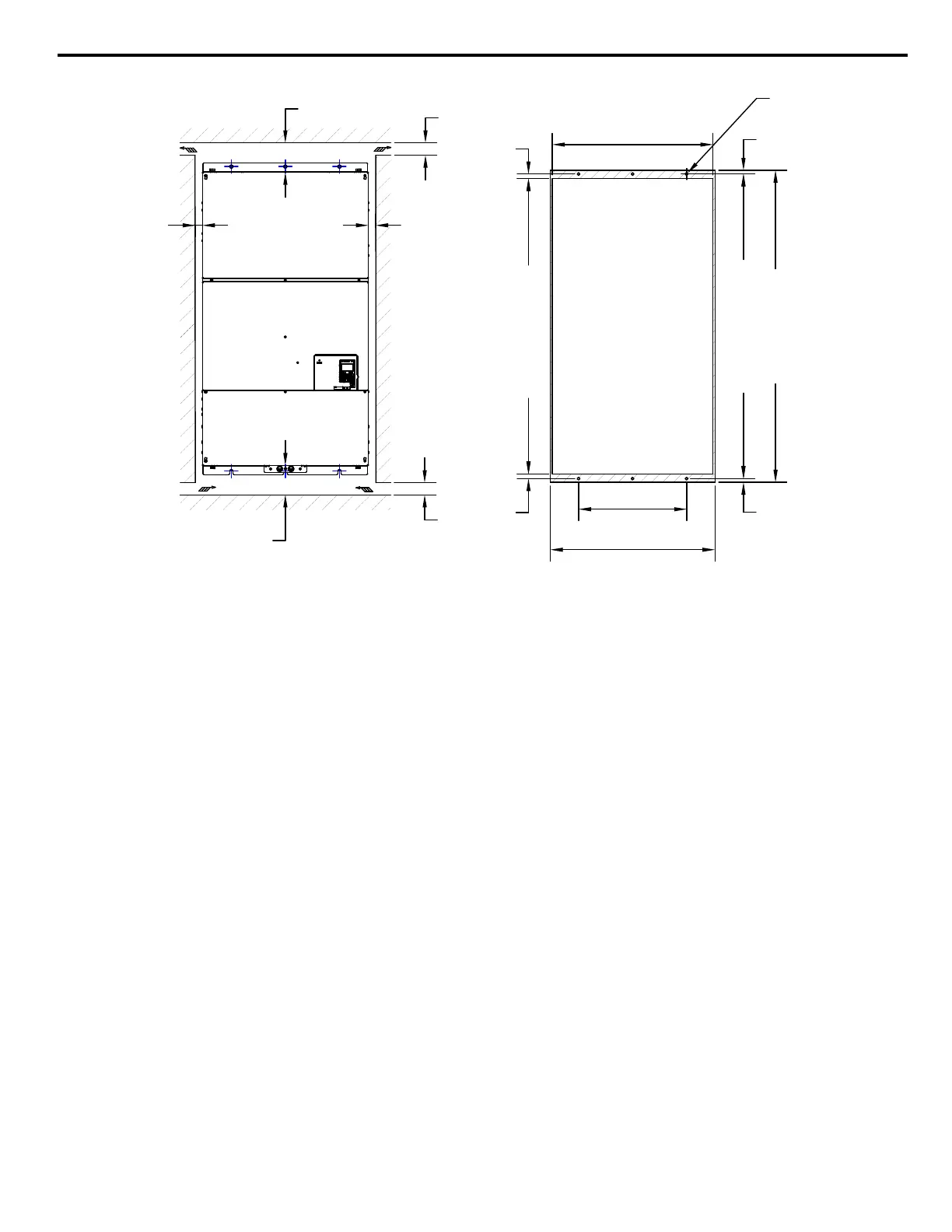

Figure 53 Non-Flange Type Models 4T0515A and 4T0675A Clearances and Panel Cutout Dimensions
8 Specifications
YASKAWA TOEP YAIP1U 04A YASKAWA AC Drive – P1000 6-Phase/12-Pulse Input Installation Manual
77

YASKAWA P1000 Series Specifications

General

Series	P1000
Voltage Classes	200 V, 400 V, 600 V
Frequency	50/60 Hz
Humidity	95% RH or less (non-condensing)
Type	AC Drive
Control Method	V/f Control
Ambient Temperature	-10 to +50°C (14 to 122°F)
Communication Options	Modbus RTU
Protection Features	Overvoltage, Undervoltage
Overload Capacity	150% for 60 seconds
Storage Temperature	-20°C to +60°C (-4 to 140°F)
Cooling Method	Fan cooled
Horsepower Range	0.5 to 500 HP
